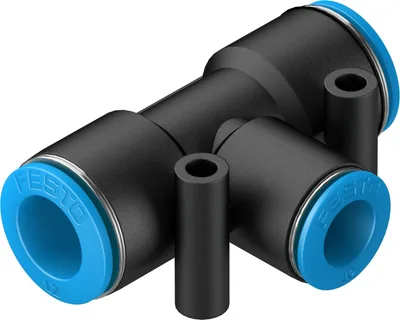

Festo QST-12-10 153137
Push-in T-connector. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing
SizeStandard
Nominal size6.1
Tubing insertion depth23.4
Note on the tubing insertion depthØ10 depth 20.2 mm, Ø12 depth 23.4 mm
Mounting positionAny
DesignT-shape
About This Product
Push-in T-connector. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing
Festo QST-12-10
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SizeStandard
Nominal size6.1
Tubing insertion depth23.4
Note on the tubing insertion depthØ10 depth 20.2 mm, Ø12 depth 23.4 mm
Mounting positionAny
DesignT-shape
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 80
Product weight34
Number of outputs2
Number of supply lines1
Pneumatic connection, port 1For tubing outer diameter of 12 mm
Pneumatic connection, port 2For tubing outside diameter of 10 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Accessories 83
Genuine accessories that can be used with the Festo QST-12-10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-H-10X1,5-SW | Plastic tubing · Tubes | |
| PUN-H-10X1,5-TBL | Plastic tubing · Tubes | |
| PUN-H-10X1,5-NT | Plastic tubing · Tubes | |
| PUN-H-10X1,5-BL | Plastic tubing · Tubes | |
| PUN-10X1,5-SG-4,8-BL-1/4 | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-SG-6-BL-1/4 | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-SG-2,4-BL-1/4 | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-SI | Plastic tubing · Tubing | |
| PAN-10X1,5-SI | Plastic tubing · Tubing | |
| PUN-10X1,5-DUO-SI | DUO tubing · Tubing | |
| PUN-10X1,5-BL | Plastic tubing · Tubing | |
| PUN-10X1,5-SW | Plastic tubing · Tubing | |
| PUN-10X1,5-DUO-BS | DUO tubing · Tubing | |
| PUN-10X1,5-RT | Plastic tubing · Tubing | |
| PUN-10X1,5-GE | Plastic tubing · Tubing | |
| PUN-10X1,5-GN | Plastic tubing · Tubing | |
| PUN-10X1,5-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-S-2-BL | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-S-6-BL | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-S-2-SW | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-S-6-SW | Spiral plastic tubing · Tubing | |
| PUN-10X1,5-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-10X1,5-S-2-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-10X1,5-S-6-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-10X1,5-SI-300 | Plastic tubing · Tubing | |
| PUN-10X1,5-BL-300 | Plastic tubing · Tubing | |
| PEN-10X1,5-SW | Plastic tubing · Tubing | |
| PEN-10X1,5-NT | Plastic tubing · Tubing | |
| PAN-10X1,5-NT | Plastic tubing · Tubing | |
| PEN-10X1,5-SW-300 | Plastic tubing · Tubing | |
| PEN-10X1,5-BL-300 | Plastic tubing · Tubing | |
| PEN-10X1,5-SI-300 | Plastic tubing · Tubing | |
| PEN-10X1,5-BL | Plastic tubing · Tubing | |
| PEN-10X1,5-SI | Plastic tubing · Tubing | |
| PEN-10X1,5-GN | Plastic tubing · Tubing | |
| PEN-10X1,5-RT | Plastic tubing · Tubing | |
| PEN-10X1,5-GE | Plastic tubing · Tubing | |
| PUN | Plastic tubing · Tubing | |
| PAN | Plastic tubing · Tubing | |
| PEN | Plastic tubing · Tubing | |
| PLN | Plastic tubing · Tubing | |
| PAN-10X1,5-SI-300 | Plastic tubing · Tubing | |
| PAN-10X1,5-BL-300 | Plastic tubing · Tubing | |
| PAN-10X1,5-SW-300 | Plastic tubing · Tubing | |
| PAN-10X1,5-BL | Plastic tubing · Tubing | |
| PAN-10X1,5-SW | Plastic tubing · Tubing | |
| PAN-10X1,5-GN | Plastic tubing · Tubing | |
| PAN-10X1,5-RT | Plastic tubing · Tubing | |
| PAN-10X1,5-GE | Plastic tubing · Tubing | |
| PUN-10X1,5-SW-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-SW-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-BL-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-NT-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-SI-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-SI | Plastic tubing · Tubing | |
| PUN-H-10X1,5-RT | Plastic tubing · Tubing | |
| PUN-H-10X1,5-GN | Plastic tubing · Tubing | |
| PUN-H-10X1,5-GE | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TBL-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TSW | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TSW-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TRT | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TRT-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TGN | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TGN-300 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TGE | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TGE-300 | Plastic tubing · Tubing | |
| PTFEN-10X1,5-NT | Plastic tubing · Tubing | |
| PTFEN-10X1,5-NT-300 | Plastic tubing · Tubing | |
| PUN-H-F-10X1,5-RT | Plastic tubing · Tubing | |
| PUN-H-F-10X1,5-BL | Plastic tubing · Tubing | |
| PUN-H-F-10X1,5-TBL | Plastic tubing · Tubing | |
| PUN-H-F-10X1,5-GN | Plastic tubing · Tubing | |
| PUN-H-F-10X1,5-GE | Plastic tubing · Tubing | |
| PUN-H-F-10X1,5-SW | Plastic tubing · Tubing | |
| PUN-H-F-10X1,5-NT | Plastic tubing · Tubing | |
| PUN-H-SF-10X2-BL | Plastic tubing · Tubing | |
| PUN-H-SF-10X2-SW | Plastic tubing · Tubing | |
| PUN-H-10X1,5-BL-25 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-SW-25 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-RT-25 | Plastic tubing · Tubing | |
| PUN-H-10X1,5-TBL-25 | Plastic tubing · Tubing |
