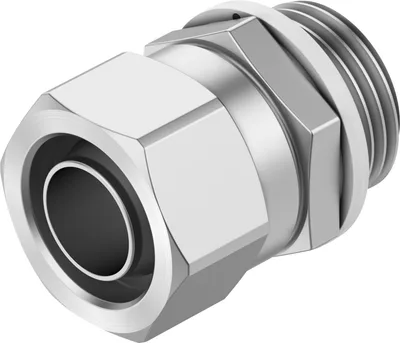

FESTO CK-1/2-PK-13

Quick connector. Bulkhead quick connector. Sealing cap for plastic tube fittings and barbed fittings. Multiple distributor. Union nut for CK tube fitting. Operating media: compressed air, vacuum, (water). Aluminium, steel, POM or zinc. Straight design, L-shaped, T-shaped

FESTOMFR # CK-1/2-PK-13SKU # CEY-937FC7827B6F

Nominal size11.7

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Corrosion resistance class CRC2 - Moderate corrosion stress

Have questions?Chat on WhatsApp

About This Product

FESTO CK-1/2-PK-13

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size11.7

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible, Water: G-thread only possible with sealing ring type OL as additional accessory

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Nominal torque14

Tolerance for nominal tightening torque±20%

Pneumatic connection, port 1Male thread G1/2

Pneumatic connection, port 2For barbed fitting I.D. 13 mm with nut

Material union nutWrought aluminium alloy, anodised

Material screwed plugAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material sealing ringReinforced PA, TPE-U(PU)
