How can I get a price quote for FESTO HGL-1/2-B?

You can request a fast quote for FESTO HGL-1/2-B from Yılsa Engineering. Reference part number CEY-937FC7820C33. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO HGL-1/2-B in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO HGL-1/2-B genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO HGL-1/2-B?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

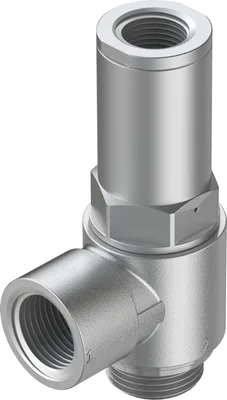

FESTO HGL-1/2-B

Piloted check valve. Valve function: piloted non-return function. Screw-in with male thread. Pneumatically piloted. Pilot air connection: M5, G1/8, G1/4, G3/8, QS-4. Manually actuated exhaust possible with separate accessory

FESTOMFR # HGL-1/2-BSKU # CEY-937FC7820C33

Valve functionPiloted non-return function

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Type of actuationPneumatic

Pilot air port 21G3/8

Type of mountingScrew-in, With male thread

Have questions?Chat on WhatsApp

About This Product

FESTO HGL-1/2-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionPiloted non-return function

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Type of actuationPneumatic

Pilot air port 21G3/8

Type of mountingScrew-in, With male thread

Operating pressure0.05, 1

Operating pressure0.5, 10

Pilot pressure0.1, 1

Pilot pressure1, 10

Pilot pressure14.5, 145

Ambient temperature-10, 60

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Maritime classificationSee certificate

Mounting positionAny

Symbol00991456

Standard flow rate 1->2 (6-0)2100

Standard nominal flow rate 1->2 (6-5)1600

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Storage temperature-10, 60

Media temperature-10, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Nominal torque14

Tolerance for nominal tightening torque±10%

Product weight129.4

Note on materialsRoHS compliant

Material sealsNBR

Material hollow boltWrought aluminium alloy, anodised

Material release ringPOM

Material non-return collarNBR

Material swivel fittingDie-cast zinc

Accessories 94

Genuine accessories that can be used with the FESTO HGL-1/2-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/2-12-I	Push-in fitting · Fittings
QS-G1/2-12	Push-in fitting · Fittings
U-1/2	Silencer · Silencer
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T-quick connector · Quick connectors
U-1/2-B	Silencer · Silencer
QSW-1/2-12	Push-in fitting · Push-in fittings
QSW-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-20	Push-in fitting · Push-in fittings
QS-1/2-16-20	Push-in fitting · Push-in fittings
QSL-1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-1/2-10-50	Push-in fitting · Push-in fittings
QSL-1/2-10-50	Push-in L-fitting · Push-in fittings
QSY-1/2-10	Push-in Y-fitting · Push-in fittings
QS-1/2-12	Push-in fitting · Push-in fittings
QS-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-I	Push-in fitting · Push-in fittings
QSL-1/2-12	Push-in L-fitting · Push-in fittings
QSL-1/2-16	Push-in L-fitting · Push-in fittings
QSLL-1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-1/2-12	Push-in L-fitting · Push-in fittings
QSLV-1/2-16	Push-in L-fitting · Push-in fittings
QSLV-1/2-12-I	Push-in L-fitting · Push-in fittings
QST-1/2-12	Push-in T-fitting · Push-in fittings
QST-1/2-16	Push-in T-fitting · Push-in fittings
QSTL-1/2-12	Push-in T-fitting · Push-in fittings
QSTL-1/2-16	Push-in T-fitting · Push-in fittings
QSY-1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-1/2-12-B	Push-in T-fitting · Push-in fittings
QSYLV-1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-1/2-12-B	Multiple distributor · Push-in fittings
QSLV2-1/2-12	Multiple distributor · Push-in fittings
QSLV3-1/2-12	Multiple distributor · Push-in fittings
QSLV4-1/2-12	Multiple distributor · Push-in fittings
QSLV6-1/2-12	Multiple distributor · Push-in fittings
QSR-1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-1/2-10	Push-in fitting · Push-in fittings
QS-V0-1/2-12	Push-in fitting · Push-in fittings
QSL-V0-1/2-10	Push-in L-fitting · Push-in fittings
QSL-V0-1/2-12	Push-in L-fitting · Push-in fittings
QST-V0-1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-1/2-1/2-I-U-M	Push-in fitting · Push-in fittings
QS-G1/2-16	Push-in fitting · Push-in fittings
QSL-G1/2-12	Push-in L-fitting · Push-in fittings
QSL-G1/2-16	Push-in L-fitting · Push-in fittings
QSLL-G1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-G1/2-12	Push-in L-fitting · Push-in fittings
QSLV-G1/2-16	Push-in L-fitting · Push-in fittings
QSLV-G1/2-12-I	Push-in L-fitting · Push-in fittings
QST-G1/2-12	Push-in T-fitting · Push-in fittings
QST-G1/2-16	Push-in T-fitting · Push-in fittings
QSTL-G1/2-12	Push-in T-fitting · Push-in fittings
QSTL-G1/2-16	Push-in T-fitting · Push-in fittings
QSY-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-G1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-G1/2-12	Push-in T-fitting · Push-in fittings
QSYLV-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-G1/2-12	Multiple distributor · Push-in fittings
QSLV2-G1/2-12	Multiple distributor · Push-in fittings
QSLV3-G1/2-12	Multiple distributor · Push-in fittings
QSLV4-G1/2-12	Multiple distributor · Push-in fittings
QSLV6-G1/2-12	Multiple distributor · Push-in fittings
QSR-G1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/2-10	Push-in fitting · Push-in fittings
QS-V0-G1/2-12	Push-in fitting · Push-in fittings
QSL-V0-G1/2-10	Push-in L-fitting · Push-in fittings
QSL-V0-G1/2-12	Push-in L-fitting · Push-in fittings
QST-V0-G1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-10	Push-in fitting · Push-in fittings
QS-1/2-10-I	Push-in fitting · Push-in fittings
QSL-1/2-10	Push-in L-fitting · Push-in fittings
QSLL-1/2-10	Push-in L-fitting, long · Push-in fittings
QSLL-G1/2-16	Push-in L-fitting, long · Push-in fittings
QST-1/2-10	Push-in T-fitting · Push-in fittings
U-1/2-20	Silencer · Silencer
CK-1/2-PK-9	Quick connector · Quick connectors
AMTE-M-LH-G12	Silencer · Silencer
AMTE-M-H-G12	Silencer · Silencer
