How can I get a price quote for Festo DHPC-32-A-NO-S-2?

You can request a fast quote for Festo DHPC-32-A-NO-S-2 from Yılsa Engineering. Reference part number YLSCOU0WPH21WT. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DHPC-32-A-NO-S-2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DHPC-32-A-NO-S-2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DHPC-32-A-NO-S-2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

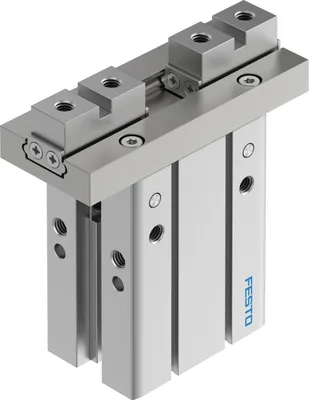

Festo DHPC-32-A-NO-S-2

Parallel gripper. Resilient and precise ball guide. High gripping force and compact size. Max. repetition accuracy. Can be used as a double-acting or single-acting gripper. Single-acting variant or with gripping force retention normally open (NO) or normally closed (NC). Suitable for external and internal gripping. Wide variety of mounting and attachment options. Sustainable in production thanks to reduced use of materials

FestoMFR # DHPC-32-A-NO-S-2SKU # YLSCOU0WPH21WT

Size32

Stroke per gripper jaws11

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0

Max. gripper jaw backlash Sz0

Rotationally symmetrical0.2

Have questions?Chat on WhatsApp

About This Product

Festo DHPC-32-A-NO-S-2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size32

Stroke per gripper jaws11

Max. replacement accuracy0.2

Max. angular gripper jaw backlash ax, ay0

Max. gripper jaw backlash Sz0

Rotationally symmetrical0.2

Repetition accuracy, gripper0.02

Number of gripper jaws2

Drive systemPneumatic

Mounting positionAny

Mode of operationSingle-acting, Open

Gripper functionParallel

Gripper force back-upDuring opening

DesignConnection direction on the side, Flat mounting method for gripper fingers, Lever, Force pilot operated motion sequence

GuideBall guide

Position detectionVia proximity switch

Symbol00997349

Operating pressure0.25, 0.8

Operating pressure2.5, 8

Operating pressure36.25, 116

Max. operating frequency of gripper1

Min. opening time at 0.6 MPa (6 bar, 87 psi)174

Min. closing time at 0.6 MPa (6 bar, 87 psi)76

Max. mass per external gripper finger280

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Ambient temperature-10, 60

Total gripping force, closing, 0.6MPa (6bar, 87 psi)415.2

Gripper force per gripper jaw, closing, 0.6 MPa (6 bar, 87 psi)207.6

Mass moment of inertia5.73

Max. force on gripper jaw Fz static246.8

Max. torque at gripper Mx static10.9

Max. torque at gripper My static6.29

Max. torque at gripper Mz static6.29

Product weight826

Type of mountingEither:, Direct mounting via through-hole, Direct mounting via thread, On mounting frame, Via through-hole and dowel pin, Via female thread and dowel pin

Pneumatic connectionM5

Note on materialsRoHS compliant

Material housingAnodised aluminium

Material gripper jawsHigh-alloy stainless steel

Accessories 137

Genuine accessories that can be used with the Festo DHPC-32-A-NO-S-2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LS-T-M5-Q4	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q6	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q4-F1A	One-way flow control valve · Function fittings
QSM-M5-4	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
SMT-8G-NS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-8G-NS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
SMT-8G-PS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
SMT-8G-PS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
SMT-10G-PS-24V-E-2,5Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10G-PS-24V-E-0,3Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMAT-8M-U-E-0,3-M8D	Position transmitter · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
SMT-10G-NS-24V-E-0,3Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10G-NS-24V-E-2,5Q-OE	Proximity sensor · Cylinder sensors for direct mounting
NEBA-M8G4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8G4-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-2.5-N-LE4	Connecting cable · Connecting cables
NEBA-M8W4-U-5-N-LE4	Connecting cable · Connecting cables
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
