How can I get a price quote for FESTO DFSP-20-10-DS-PA?

You can request a fast quote for FESTO DFSP-20-10-DS-PA from Yılsa Engineering. Reference part number CEY-937FC781BD65. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DFSP-20-10-DS-PA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DFSP-20-10-DS-PA genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DFSP-20-10-DS-PA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

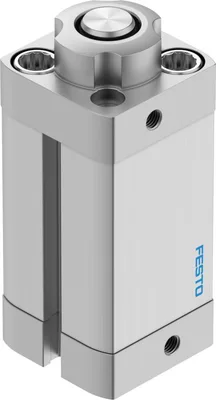

FESTO DFSP-20-10-DS-PA

Stopper cylinder. Trunnion version with/without protection against rotation, with/without female thread. Roller version with protection against rotation. Compact design. Sensor slots on 3 sides. Long service life thanks to very good cushioning characteristics and sturdy piston rod guide. Safe stopping of workpiece carriers, pallets and packages weighing up to 90 kg

FESTOMFR # DFSP-20-10-DS-PASKU # CEY-937FC781BD65

Stroke10

Piston diameter20 mm

Mounting positionAny

Mode of operationDouble-acting

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Have questions?Chat on WhatsApp

About This Product

FESTO DFSP-20-10-DS-PA

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10

Piston diameter20 mm

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Mode of operationDouble-acting

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Symbol00991217

Protection against torque/guideRound piston rod

Operating pressure0.1, 1

Operating pressure1, 10

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature-10, 80

Impact force1370

Permissible lateral force during switching operation228

Max. cycle frequency5

Type of mountingWith through-hole, With female thread, With accessories

Pneumatic connectionM5

Note on materialsRoHS compliant

Material collar screwsGalvanised steel

Material coverWrought aluminium alloy, anodised

Material sealsTPE-U(PU)

Material piston rodHigh-alloy stainless steel

Material rollGalvanised steel

Material cylinder barrelWrought aluminium alloy, Smooth-anodised

Accessories 153

Genuine accessories that can be used with the FESTO DFSP-20-10-DS-PA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DAMF-F7-20	Flange mounting · Cylinder mountings
QSM-M5-4	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
PUN-H-4X0,75-BL	Plastic tubing · Tubes
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
QSM-M5-4-I	Push-in fitting · Fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
SME-8-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-S-LED-24	Proximity sensor · Cylinder sensors for direct mounting
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
GRLA-M5-RS-B	One-way flow control valve · Function fittings
GRLO-M5-B	Throttle valve · Function fittings
GRLO-M5-PK-3-B	Throttle valve · Function fittings
ABP-5-S	Slot cover · Mounting accessories
SME-8-K-LED-230	Proximity sensor · Cylinder sensors for direct mounting
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
SME-8-O-K-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8-K-24-S6	Proximity sensor · Cylinder sensors for direct mounting
SME-8-ZS-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-3-LF-C	Throttle valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-4-LF-C	Throttle valve · Function fittings
SME-8-K5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
HGL-M5-B	Piloted check valve · Function fittings
HGL-M5-QS-4	Piloted check valve · Function fittings
SME-8-K-7,5-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-PS-24V-E-2,5Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-PS-24V-E-0,3Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SAMH-S-N8-S-MK	Mounting kit · Mounting accessories
SAMH-S-N8-L-MK	Mounting kit · Mounting accessories
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
SMT-8G-NS-24V-E-0,3Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-NS-24V-E-2,5Q-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
ZBH-5-M4	Centring sleeve · Mounting accessories
ZBH-9-B	Centring sleeve · Mounting accessories
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-DS-M5-M5-M	Double nipple · Other connectors
ZBH-5-B	Centring sleeve · Mounting accessories
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
ZBH-5	Centring sleeve · Mounting accessories
