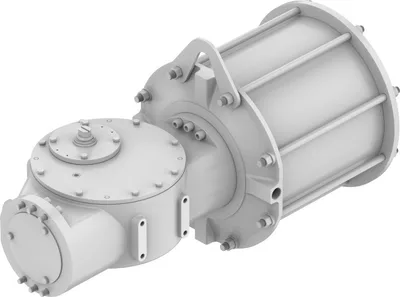

Festo DFPD-9500-SY-Y-90-RD-F1625
Quarter turn actuator. Uniform torque characteristic across the entire rotation angle of 90° with the double-acting version. Version with swivel angle 120°, 135°, 180° for the sizes 40, 120, 240, 480, double-acting. Process valve connection to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Sturdy, non-slip and easy-to-clean aluminium housing. Long service life, low wear. Sustainable thanks to extended life cycle and easier repairs. Increased corrosion protection
Size of valve actuator9500
Flange hole patternF1625
Swivel angle90
End-position adjustment range at 0°-5, 5
Shaft connection depth57
Fitting connection conforms to standardISO 5211
About This Product
Quarter turn actuator. Uniform torque characteristic across the entire rotation angle of 90° with the double-acting version. Version with swivel angle 120°, 135°, 180° for the sizes 40, 120, 240, 480, double-acting. Process valve connection to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Sturdy, non-slip and easy-to-clean aluminium housing. Long service life, low wear. Sustainable thanks to extended life cycle and easier repairs. Increased corrosion protection
Festo DFPD-9500-SY-Y-90-RD-F1625
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size of valve actuator9500
Flange hole patternF1625
Swivel angle90
End-position adjustment range at 0°-5, 5
End-position adjustment range at nominal swivel angle-5, 5
Shaft connection depth57
Fitting connection conforms to standardISO 5211
Mounting positionAny
Mode of operationDouble-acting
DesignScotch yoke system
Closing directionCloses to the right
Symbol00991265
Valve connection conforms to standardVDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to standardVDI/VDE 3845 size AA 3
Safety functionThe safety function consists of the actuator switching to the specified safety switching position. This switching movement is achieved by pressurising the corresponding pressure chamber with compresse
Safety Integrity Level (SIL)up to SIL 2 Low Demand mode, Up to SIL 3 in a redundant architecture
Certified for safety function to ISO 13849 and IEC 61508 (SIL)Product can be used in SRP/CS up to SIL 2 (Low Demand), Up to SIL 3 in a redundant architecture
Burst pressure13.89
Operating pressure0.3, 0.46
Operating pressure3, 4.6
Operating pressure43.5, 66.7
Nominal operating pressure0.463
Nominal operating pressure4.63
Nominal operating pressure67.135
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)To UK EX instructions
Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)
Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
Certificate issuing authorityGerman Technical Control Board (TÜV) Rheinland 968/V 2959.00/2025
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx h IIC T6 Gb
Explosion ignition protection type for dustEx h IIIC T85°C Db
Explosion ambient temperature-20°C <= Ta <= +80°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:3:4]
Note on operating and pilot mediumDew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364 zone III
Storage temperature-20, 60
Ambient temperature-20, 80
Torque at nominal operating pressure and 0° swivel angle7988.6
Torque at nominal operating pressure and 90° swivel angle7988.6
Note on torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.
Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°408.8
Product weight153000
Shaft connectionT55
Pneumatic connectionG3/4
Note on materialsRoHS compliant
Material end capSpheroidal graphite cast iron
Material stop screwSteel
Material sealsNBR
Material springSpring steel
Material spring rodSteel
Material housingSpheroidal graphite cast iron
Material pistonSpheroidal graphite cast iron
Material piston rodSteel
Material tie rodSteel
Material cylinder barrelSteel
Accessories 156
Genuine accessories that can be used with the Festo DFPD-9500-SY-Y-90-RD-F1625 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| CMSH-S-VDE1-D-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-A-AL-N14-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-V-SD-AL-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-V-SD-AL-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-S-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-S-A-AL-N14-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1WG-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-N-20N-ZC-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-20N-ZC-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-P-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-N-20N-ZC-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| CMSX-P-SE-C-U-F1-D-50-A | Positioner · Cylinder sensors for direct mounting | |
| CMSX-P-SE-C-U-F1-D-50-C | Positioner · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-ZU-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-R-2A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-P-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-N-1-ZU-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-R-2A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-A-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-C-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-S-A-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1WG-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-1-1WG-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-1W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-1W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-P-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-N-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-22A-1W-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-ZU-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-R-2A-1W-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-AS-M12-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-20N-ZC-M12-EX5 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-P-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-ZU-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-20N-ZC-C2-C2-EX5 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-P-C2-C2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-ZU-C2-C2 | Sensorbox · Cylinder sensors for direct mounting | |
| CMSX-P-SE-C-U-F1-D-130-A | Positioner · Cylinder sensors for direct mounting | |
| CMSX-P-SE-C-U-F1-D-130-C | Positioner · Cylinder sensors for direct mounting | |
| CMSX-P-S-C-U-F1-D-130-A | Positioner · Cylinder sensors for direct mounting | |
| CMSX-P-S-C-U-F1-D-50-A | Positioner · Cylinder sensors for direct mounting | |
| CMSX-P-S-C-U-F1-D-130-C | Positioner · Cylinder sensors for direct mounting | |
| CMSX-P-S-C-U-F1-D-50-C | Positioner · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-1W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-TP20-EX2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-YB270-1-A-TP20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-T2P20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-T2P20-EX2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-BB270-1-A-TP20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-TM20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-270-1-A-T2P20 | Sensorbox · Cylinder sensors for direct mounting | |
| NVF3-MOH-5/2-K-1/4 | Solenoid valve · Valves | |
| VSNC | Solenoid valve · Valves | |
| NPFC-L-2G34-F | Elbow fitting · Push-in fittings | |
| NPFC-T-3G34-F | T-fitting · Push-in fittings | |
| NPFC-T-2G34-R34-FMF | T-fitting · Push-in fittings | |
| NPFC-R-G34-G12-F | Reducing sleeve · Push-in fittings | |
| NPFC-S-2G34-F | Sleeve · Push-in fittings | |
| NPFC-R-G34-G12-MF | Reducing nipple · Push-in fittings | |
| QS-G3/4-22 | Push-in fitting · Push-in fittings | |
| NPFC-D-2G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G34-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G34-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G34-G12-MF-P50 | Reducing nipple · Push-in fittings | |
| VSNC-FC-M52-MD-G14-FN-1A1+G | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-3AA1+G | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-F8-1A1 | Solenoid valve · Valves | |
| NPFC-RS-G34-G12-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G34-G38-MF | Reducing nipple · Push-in fittings | |
| VOFC-LT-M32C-MC-FG13-F19 | Valve · Valves | |
| VOFC-LT-M32C-MC-FG13-F19A | Valve · Valves | |
| VOFC-LT-M32C-M-FG14-F19 | Valve · Valves | |
| VOFC-LT-M32C-M-FG14-F19A | Valve · Valves | |
| VOFC-LT-M32C-M-FG12-F19A | Valve · Valves | |
| VOFC-LT-M32C-MC-FGP14-F19 | Valve · Valves | |
| VOFC-LT-M32C-MC-FGP14-F19A | Valve · Valves | |
| VOFC-LT-M32C-M-FG12-F19 | Valve · Valves | |
| VOFC-L-B52-FG14-F19 | Valve · Valves | |
| VOFC-L-M52-M-FG14-F19 | Valve · Valves | |
| VOFC-L-M52-M-FG14-F19A | Valve · Valves | |
| VOFC-L-B52-FG14-F19A | Valve · Valves | |
| VOFD-L50T-M32-MN-FG14-10-F10 | Valve · Valves | |
| VOFD-L50T-M32-MN-FGP14-10-F10 | Valve · Valves | |
| NVF3-MOH-5/2-K..+MSFW-230 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFW-110 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFG-24 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-FT-B52-D-G14-FN | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-FT-B52-D-N14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-F8-1B2 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-F8-1B2 | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-G14-FN-1A1 | Solenoid valve · Valves | |
| VSNC-FT-B52-D-G14-FN-1A1 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K-1/4-EX | Solenoid valve · Valves | |
| CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH- | Positioner · Cylinder sensors for direct mounting |
Related Products
View Details
Festo
DSL-16- -270-P-A-S2-B
MFR #DSL-16- -270-P-A-S2-B
SKU #YLS8O1DFLDQOC8L
View Details
Festo
DSL-16- -270-P-A-S20-KF-B
MFR #DSL-16- -270-P-A-S20-KF-B
SKU #YLSTG3XGDLFNV8F
View Details
Festo
DSL-16- -270-P-A-S2-KF-B
MFR #DSL-16- -270-P-A-S2-KF-B
SKU #YLSQQ5PTFWYNWLG
View Details
Festo
DSL-16- -270-CC-A-S20-B
MFR #DSL-16- -270-CC-A-S20-B
SKU #YLSDU3JXV17IHRS
View Details
Festo
DSL-16- -270-CC-A-S2-B
MFR #DSL-16- -270-CC-A-S2-B
SKU #YLSZMIJIJLMBL90
View Details
Festo
DSL-16- -270-CC-A-S20-KF-B
MFR #DSL-16- -270-CC-A-S20-KF-B
SKU #YLSLHL38NKFHUO8
View Details
Festo
DSL-16- -270-CC-A-S2-KF-B
MFR #DSL-16- -270-CC-A-S2-KF-B
SKU #YLSZZWYKQDM0IH
View Details
Festo
DSL-20- -270-P-A-S20-B
MFR #DSL-20- -270-P-A-S20-B
SKU #YLSTMW2XEHMMFUC
View Details
Festo
DSL-20- -270-P-A-S2-B
MFR #DSL-20- -270-P-A-S2-B
SKU #YLSOYJHZ6WDVCCK
Featured Products
View Details
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Related Searches
Festo DFPD-9500-SY-Y-90-RD-F1625 priceFesto DFPD-9500-SY-Y-90-RD-F1625 quotebuy Festo DFPD-9500-SY-Y-90-RD-F1625DFPD-9500-SY-Y-90-RD-F1625 priceDFPD-9500-SY-Y-90-RD-F1625 stock availabilityFesto spare partsFesto DFPD-9500-SY-Y-90-RD-F1625 equivalentFesto DFPD-9500-SY-Y-90-RD-F1625 specifications
