How can I get a price quote for FESTO SRAP-M-CA1-GR270-1-A-TM20?

You can request a fast quote for FESTO SRAP-M-CA1-GR270-1-A-TM20 from Yılsa Engineering. Reference part number CEY-937FC781CE55. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO SRAP-M-CA1-GR270-1-A-TM20 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO SRAP-M-CA1-GR270-1-A-TM20 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO SRAP-M-CA1-GR270-1-A-TM20?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

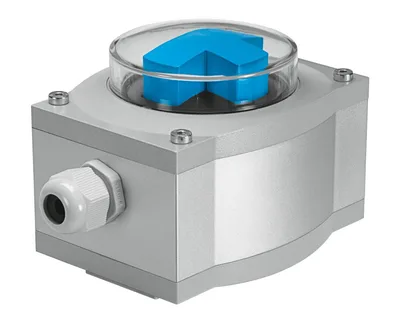

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO SRAP-M-CA1-GR270-1-A-TM20

Sensorbox. Based on standard VDI/VDE 3845 (NAMUR). Analogue. For monitoring the position of quarter turn actuators. Sensors based on 2D Hall technology. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # SRAP-M-CA1-GR270-1-A-TM20SKU # CEY-937FC781CE55

DesignSquare

Based on standardVDI/VDE 3845 (NAMUR)

ApprovalRCM, c UL us - Recognised (Oil)

Note on materialsRoHS compliant

Measured variableRotation angle

Measuring principleMagnetic Hall

Have questions?Chat on WhatsApp

About This Product

FESTO SRAP-M-CA1-GR270-1-A-TM20

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignSquare

Based on standardVDI/VDE 3845 (NAMUR)

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Note on materialsRoHS compliant

Measured variableRotation angle

Measuring principleMagnetic Hall

Ambient temperature-20, 80

Analogue output4 - 20 mA

Repetition accuracy analogue output in ± °1

Short circuit current ratingYes

Overload protectionAvailable

Operational voltage range DC15, 30

No-load supply current12, 20

Reverse polarity protectionFor all electrical connections

Electrical connectionScrew terminal, plug-in

Connectable nominal cross section conductor2.5

Cable fittingM20

Permissible cable diameter5, 13

Max. cable length30 M

Mounting positionAny

Product weight1000

Material housingWrought aluminium alloy

Position indicatorRed/green

Setting optionsTeach-in, Teach-in via electrical connection

Setting range of angular detection0, 270

Degree of protectionIP65

Insulation voltage50

Immunity to surge0.8

Protection classIII

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Accessories 5

Genuine accessories that can be used with the FESTO SRAP-M-CA1-GR270-1-A-TM20 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DASB-P1-HA-SB	Adapter kit · Mounting accessories
DASB-P1-HL-SB	Adapter kit · Mounting accessories
NETC-M-M20-KA	Cable connector · General accessories
DASB-P1-HB-SB	Adapter kit · Mounting accessories
DASB-P1-HC-SB	Adapter kit · Mounting accessories
