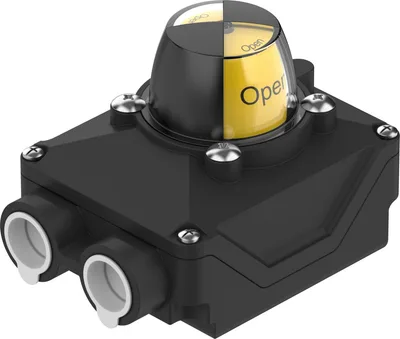

Festo SRBK-CA5-YR90-MW-22A-1W-C2

Limit switch box. Sturdy polymer housing with UV resistance. Different switch variants – mechanical, inductive and reed switches. Multifunctional mounting adapter for adaptations on the ISO3845 interface. Variants with M12 plug connection for easy installation (plug&play)

FestoMFR # SRBK-CA5-YR90-MW-22A-1W-C2SKU # YLSSIIL7MDHCEC

Approvalc CSA us (OL)

Certificate issuing authorityEurocert. 93927

Note on materialsRoHS compliant

Safety Integrity Level (SIL)SIL 3

Measured variablePosition

Measuring principlemechanical/electrical

Have questions?Chat on WhatsApp

About This Product

Festo SRBK-CA5-YR90-MW-22A-1W-C2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Approvalc CSA us (OL)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityEurocert. 93927

Note on materialsRoHS compliant

Safety Integrity Level (SIL)SIL 3

Measured variablePosition

Measuring principlemechanical/electrical

Sensing range0, 90

Ambient temperature-20, 70

Switching outputconventional

Switching element functionToggle switch, single-pin

Max. switching output voltage DC30

Max. output current AC3000

Max. output current DC1000

Operational voltage range AC0, 230

Operational voltage range DC0, 30

Microswitch typeOmron SS-5

Electrical connectionScrew terminal

Electrical connection 1, connection typeTerminal strip

Electrical connection 1, cable outletStraight

Electrical connection 1, designSquare

Electrical connection 1, connector systemScrew terminal

Electrical connection 1, number of connections/cores10

Connectable nominal cross section conductor0.25, 2.5

Cable fittingM20x1.5

Dimensions (W x L x H)119 mm x 85 mm x 89 mm

Type of mountingon flange according to ISO 5211

Mounting positionAny

Product weight360

Housing colourBlack

Material housingPA

Material sealsNBR

Material shaftPA

Material screwsStainless steel

Material mounting bracketPA

Material snap ringHigh-alloy stainless steel

Protective cap materialMakrolon®

Switching status indicationOptical

Position indicatorYellow/red

Setting range of angular detection0, 90

Storage temperature-20, 50

Degree of protectionIP66, IP67

Protection classII

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Pollution degree3
