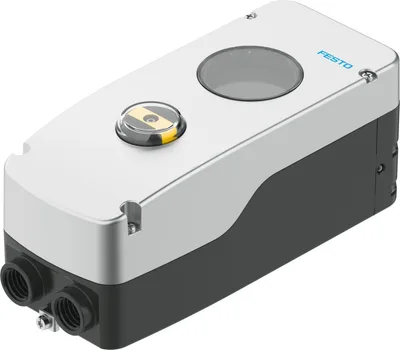

Festo CMSH-S-VDE1-S-A-AL-G14-C1M20-HA-V2

Positioner. Intelligent, digital electropneumatic positioner with HART communication. Fast and precise position control of single- and double-acting pneumatic rotary and linear drives. With integrated or external path/angular detection. Commissioning, operation, maintenance and diagnostics on the local display via the user-friendly software menu or via remote access with EDD-based (Electronic Device Description) or FDT-based (Field Device Tool) transmission. 2-conductor technology. Perfect interaction with the pneumatic extension modules VTOP. Variants with safety functions. Sustainable operation thanks to efficient control

FestoMFR # CMSH-S-VDE1-S-A-AL-G14-C1M20-HA-V2SKU # YLSTSTGJSADHBOH

DesignDigital, electropneumatic positioner

Mode of operationSingle-acting

Design characteristicsSafety pneumatic output 2 exhausted

Mounting positionAny

Functional principle of measuring systemPotentiometer

Sensing range0, 115

Have questions?Chat on WhatsApp

About This Product

Festo CMSH-S-VDE1-S-A-AL-G14-C1M20-HA-V2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDigital, electropneumatic positioner

Mode of operationSingle-acting

Design characteristicsSafety pneumatic output 2 exhausted

Mounting positionAny

Type of mountingWith accessories, in accordance with VDI/VDE 3845

Functional principle of measuring systemPotentiometer

Sensing range0, 115

DisplayLCD display, via software 90° rotatable

Setting optionsVia display and buttons

Cycle time20

Nominal altitude of use<= 2000 m NHN

Overvoltage categoryII

Operating pressure0.14, 0.8

Operating pressure1.4, 8

Operating pressure20.3, 116

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumMaximum particle size 40 µm

Air flow rate at Δp = 6 bar380

Pneumatic connectionG1/4

Reverse polarity protectionYes

Connection resistance3, 80

digital input, signal range4 - 20 mA with HART

Analogue inputs, input impedance480 ohm at 20 mA

Analog inputs, overload protection<65 mA

Analogue inputs, electrical isolationYes

digital output, signal range4 - 20 mA

Analogue outputs, functional principleRegulated power source with external supply

Analogue outputs, supply voltage24

Analogue outputs, reverse polarity protectionYes

Analog outputs, short circuit current ratingYes

Analog outputs, overload protectionYes

Analogue outputs, galvanic isolationYes

Characteristic for inputs2x to IEC 61131-2, type 3

Digital inputs, reverse polarity protectionYes

Digital inputs, electrical isolationYes

Digital inputs, overload protection33 V

Switching output2x to IEC 60947-5-6 or 2x to DIN EN 61131-2 type 2, switchable

Digital outputs, supply voltage8.2 V, 24 V

Digital outputs, short circuit current ratingYes

Digital outputs, overload protectionYes, <30 V

Digital outputs, electrical isolationYes

Electrical connection 1, functionAnalogue input, Digital input, External path/angle sensor

Electrical connection 1, connection typeTerminal strip

Electrical connection 1, connector systemSpring-loaded terminal

Electrical connection 1, number of connections/cores7

Electrical connection 2, function2x digital output, Analogue output, Digital input

Electrical connection 2, connection typeTerminal strip

Electrical connection 2, connector systemSpring-loaded terminal

Electrical connection 2, number of connections/cores8

Cable fitting2x M20x1.5

Max. cable length30 m for external position sensor, Shielded

Ambient temperature-40, 80

Note on ambient temperatureDisplay: -30 - 80 °C

Storage temperature-40, 80

Climatic category1K5 to EN 60721 for storage, 4K3 to EN 60721 for operation

Degree of protectionIP66, IP67

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Pollution degree3

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Material housingAluminium, powder-coated

Material screenMakrolon®

Material shaftHigh-alloy stainless steel

Material couplingHigh-alloy stainless steel

Material screwsGalvanised steel

Material sealsEPDM, NBR, VMQ

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Product weight2640

Accessories 8

Genuine accessories that can be used with the Festo CMSH-S-VDE1-S-A-AL-G14-C1M20-HA-V2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CAFM-M1-K-N2	Mounting kit · Mounting accessories
CAFM-M1-K-R1-N2	Mounting kit · Mounting accessories
CAFM-M1-CK-N1	Coupling · Mounting accessories
CAFM-M1-CK-N3	Coupling · Mounting accessories
CAFM-M1-K-N1-AA4	Mounting adapter · Mounting accessories
CAFM-M1-K-N1-AA1	Mounting adapter · Mounting accessories
CAFM-M1-K-N1-AA2	Mounting adapter · Mounting accessories
CAFM-M1-K-N1-AA3	Mounting adapter · Mounting accessories
