How can I get a price quote for Festo CMSX-P-S-C-U-F1-D-130-A?

You can request a fast quote for Festo CMSX-P-S-C-U-F1-D-130-A from Yılsa Engineering. Reference part number YLSYZLFUT1GX1RU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CMSX-P-S-C-U-F1-D-130-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CMSX-P-S-C-U-F1-D-130-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CMSX-P-S-C-U-F1-D-130-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

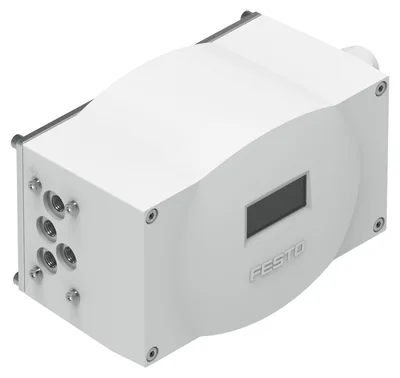

Festo CMSX-P-S-C-U-F1-D-130-A

Positioner. Digital, electropneumatic positioner. Simple and efficient position control of single- and double-acting pneumatic rotary and linear drives. Sustainable thanks to extended life cycle and easier repairs. With integrated or external path/angular detection. Simple commissioning through automatic initialisation function. Intuitive menu navigation. 4-conductor technology. Variants with safety functions

FestoMFR # CMSX-P-S-C-U-F1-D-130-ASKU # YLSYZLFUT1GX1RU

DesignDigital, electropneumatic positioner

Mode of operationDouble-acting

Mounting positionAny

Type of mountingWith accessories

Functional principle of measuring systemPotentiometer

Sensing range0, 100

Have questions?Chat on WhatsApp

About This Product

Festo CMSX-P-S-C-U-F1-D-130-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDigital, electropneumatic positioner

Mode of operationDouble-acting

Design characteristicsSafety position – pneumatic outlet 4 exhausted, Safety position – pneumatic outlet 2 pressurised

Mounting positionAny

Type of mountingWith accessories

Functional principle of measuring systemPotentiometer

Sensing range0, 100

Display7-segment, LCD display, With backlighting

Setting optionsVia display and buttons

Size of dead zone0.5, 10

Operating pressure0.3, 0.8

Operating pressure3, 8

Operating pressure43.5, 116

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible, Maximum particle size 40 µm

Standard nominal flow rate (standardised to DIN 1343)130

Pneumatic connectionG1/8

Nominal operating voltage DC24

Operational voltage range DC21.6, 26.4

Max. current consumption600

Reverse polarity protectionFor operating voltage connections

digital input, signal range0 - 10 V, 0 - 20 mA, 4 - 20 mA

Analogue inputs, max. dynamic range0 - 24 mA, 0 - 11 V

Analogue inputs, linearity error at 25 °C0.5 %

Analogue inputs, temperature coefficient0.02

Analogue inputs, resolution16 bit

Analog inputs, overload protectionYes

Analogue inputs, electrical isolationNo

digital output, signal range4 - 20 mA

Analogue outputs, max. load impedance600

Analogue outputs, linearity error at 25°C0.5%

Analogue outputs, temperature coefficient0.02

Analogue outputs, resolution12 bit

Analogue outputs, reverse polarity protectionYes

Analog outputs, short circuit current ratingYes

Analog outputs, overload protectionYes

Analogue outputs, galvanic isolationNo

Characteristic for inputsTo IEC 61131-2, type 3

Switching inputPNP, NPN

Digital inputs, reverse polarity protectionYes

Digital inputs, electrical isolationyes, optocoupler

Digital outputs, reverse polarity protectionYes

Switching output3 x PNP or 3 x NPN, switchable

Digital outputs, output current100 mA

Digital outputs, short circuit current ratingYes

Digital outputs, overload protectionYes

Digital outputs, electrical isolationyes, optocoupler

Electrical connection 1, function3x digital output, Analogue output, Analogue input, Digital input, Power supply, Power supply load

Electrical connection 1, connection typeTerminal strip

Electrical connection 1, connector systemScrew terminal

Electrical connection 1, number of connections/cores13

Electrical connection 1, tightening torque0.6

Electrical connection 1, conductor cross section1.5

Cable fittingM20 x 1.5 for electrical connection 1

Permissible cable diameter7 - 13 mm for electrical connection 1

Max. cable length30 m for electrical connection 1

Ambient temperature-5, 60

Storage temperature-20, 60

Relative air humidity5 - 95%, Non-condensing

Degree of protectionIP65

Corrosion resistance class CRC2 - Moderate corrosion stress

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27, As per EN 60068-2-29

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6, As per EN 60068-2-6

Pollution degree3

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Material housingReinforced PC

Material screenMakrolon®

Material base plateWrought aluminium alloy, anodised

Material shaftHigh-alloy stainless steel

Material couplingHigh-alloy stainless steel

Material screwsHigh-alloy stainless steel

Material sealsNBR

Material cable glandPA

Material blanking plugPA

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Product weight970

Dimensions (W x L x H)190 mm x 105 mm x 130 mm

Accessories 21

Genuine accessories that can be used with the Festo CMSX-P-S-C-U-F1-D-130-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
DARQ-K-P-A1-F05-20-R1	Mounting flange adapter · Mounting accessories
PUN-H-8X1,25-NT	Plastic tubing · Tubes
PUN-H-8X1,25-BL	Plastic tubing · Tubes
DARQ-K-P-A1-F05-30-R1	Mounting flange adapter · Mounting accessories
PUN-H-8X1,25-SW	Plastic tubing · Tubes
U-1/8	Silencer · Silencer
QS-G1/8-8-I	Push-in fitting · Fittings
U-1/8-B	Silencer · Silencer
QS-1/8-6-I-100	Push-in fitting · Push-in fittings
QS-1/8-8-I-50	Push-in fitting · Push-in fittings
QS-1/8-4-I-100	Push-in fitting · Push-in fittings
QS-1/8-4-I	Push-in fitting · Push-in fittings
QS-1/8-6-I	Push-in fitting · Push-in fittings
QS-1/8-8-I	Push-in fitting · Push-in fittings
UC-1/8	Silencer · Silencer
QS-1/8-1/4-I-U-M	Push-in fitting · Push-in fittings
QS-1/8-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-1/8-10-I	Push-in fitting · Push-in fittings
UC-1/8-50	Silencer · Silencer
U-1/8-50	Silencer · Silencer
