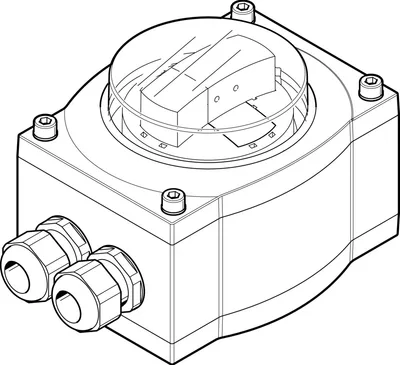

FESTO SRAP-M-CA1-GR270-1-A-T2P20-EX2

Sensorbox. Based on standard VDI/VDE 3845 (NAMUR). Analogue. For monitoring the position of quarter turn actuators. Sensors based on 2D Hall technology. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # SRAP-M-CA1-GR270-1-A-T2P20-EX2SKU # CEY-937FC781CE4E

DesignSquare

Based on standardVDI/VDE 3845 (NAMUR)

ApprovalRCM, c UL us - Recognised (Oil)

ATEX category gasII 3G

ATEX category dustII 3D

Explosion ambient temperature-20°C <= Ta <= +80°C

Have questions?Chat on WhatsApp

About This Product

FESTO SRAP-M-CA1-GR270-1-A-T2P20-EX2

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignSquare

Based on standardVDI/VDE 3845 (NAMUR)

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Explosion protectionZone 2 (ATEX), Zone 2 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX)

ATEX category gasII 3G

Explosion ignition protection type for gasEx ec IIC T5 Gc X

ATEX category dustII 3D

Explosion ignition protection type for dustEx tc IIIC T90°C Dc X

Explosion protection certification outside the EUEPL Dc (GB), EPL Gc (GB)

Explosion ambient temperature-20°C <= Ta <= +80°C

Note on materialsRoHS compliant

Measured variableRotation angle

Measuring principleMagnetic Hall

Ambient temperature-20, 80

Analogue output4 - 20 mA

Repetition accuracy analogue output in ± °1

Short circuit current ratingYes

Overload protectionAvailable

Operational voltage range DC15, 30

No-load supply current12, 20

Reverse polarity protectionFor all electrical connections

Electrical connectionScrew terminal, plug-in

Connectable nominal cross section conductor2.5

Cable fittingM20

Permissible cable diameter5, 13

Max. cable length30 M

Mounting positionAny

Product weight1000

Material housingWrought aluminium alloy

Position indicatorRed/green

Setting optionsTeach-in, Teach-in via electrical connection

Setting range of angular detection0, 270

Degree of protectionIP65

Insulation voltage50

Immunity to surge0.8

Protection classIII

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Accessories 4

Genuine accessories that can be used with the FESTO SRAP-M-CA1-GR270-1-A-T2P20-EX2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DASB-P1-HA-SB	Adapter kit · Mounting accessories
DASB-P1-HL-SB	Adapter kit · Mounting accessories
DASB-P1-HB-SB	Adapter kit · Mounting accessories
DASB-P1-HC-SB	Adapter kit · Mounting accessories
