How can I get a price quote for Festo VSNC?

You can request a fast quote for Festo VSNC from Yılsa Engineering. Reference part number YLSTY7NU404WJCG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VSNC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VSNC genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VSNC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

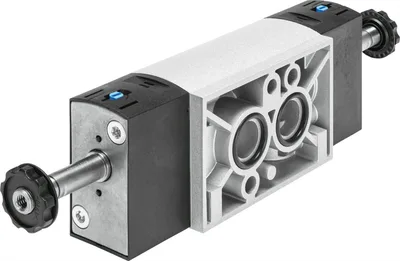

Festo VSNC

Solenoid valve. Namur connection pattern to VDI/VDE 3845. Rotatable seal for 3/2- or 5/2-way valve. Wide choice of EX solenoid systems. Sturdy and powerful. Extended temperature range. Excellent value for money. All solenoid coils can be used on an armature tube. The VSNC-...FN variant achieves greater energy efficiency with reduced power consumption

FestoMFR # VSNCSKU # YLSTY7NU404WJCG

Type of actuationElectrical

Construction width32

pneumatic working portConnection pattern to NAMUR

Operating pressure0.15, 1

Operating pressure1.5, 10

DesignPiston gate valve, Poppet seat

Have questions?Chat on WhatsApp

About This Product

Festo VSNC

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, double solenoid, 5/2-way or 3/2-way, convertible, 5/3-way, pressurised, 5/3 exhausted, 5/3-way, closed

Type of actuationElectrical

Construction width32

Standard nominal flow rate (standardised to DIN 1343)800, 1350

pneumatic working portConnection pattern to NAMUR

Operating voltage240V AC, 24V AC, 24 V DC, 48V AC, 48 V DC, Via solenoid coil, must be ordered separately

Operating pressure0.15, 1

Operating pressure1.5, 10

DesignPiston gate valve, Poppet seat

Type of resetMechanical spring

Approvalc UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), To EU Low Voltage Directive, In accordance with EU RoHS Directive

Explosion protection certification outside the EUEPL Dc (KR), EPL Ga (IEC-EX), EPL Ga (KR), EPL Gb (IECEx), EPL Gb (KR), EPL Gc (KR)

UKCA marking (see declaration of conformity)To UK EX instructions, To UK RoHS instructions

Certificate issuing authorityBVS 15ATEXE029X, BVS 15ATEXE030X, DNV 15.0189X/02, DNVGL-TAA000011J, IECEx BVS 15.0020X, IECEx BVS 15.0075X

ATEX category gasII 2G, II 3G

ATEX category dustII 2D, II 3D

Explosion ignition protection type for gasEx ec IIC T5 Gc X, Ex ia IIC T6 Ga, Ex ia IIC T6 ...T5 Ga, Ex mb IIC T6 Gb

Explosion ignition protection type for dustEx mb IIIC T80°C Db, Ex mb tb IIIC T80°C Db, Ex t IIIC T80°C Db, Ex tb IIIC T100°C Db, Ex tb IIIC T135°C Db, Ex tc IIIC T95°C Dc X

Explosion ambient temperatureT5, T95°C: -20°C <= Ta <= +60°C, T5, T95°C: -30°C <= Ta <= +65°C, T6, T85°C: -20°C <= Ta <= +50°C, T6/T80°C: -30°C <= Ta <= +50°C

Degree of protectionIP65, IP66, IP67, With plug socket, To IEC 60529

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardVDI/VDE 3845 (NAMUR)

Manual overrideDetenting, None, Non-detenting, Concealed

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00995701

lapOverlap, Underlap

Signal status displayWith accessories

b value0.4, 0.5

C value2.1, 5.6

Standard nominal flow rate, exhaust return 4->3110

Switching time off6, 120

Switching time on4, 35

Switching time reversal2, 55

Duty cycle100%

Characteristic coil data48 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.7 VA, 48 V AC: 50/60 Hz, pick-up power 3.9 VA, holding power 2.7 VA, 48 V DC: 2.8 W, 48 V DC: 3.4 W, See solenoid coil, to be ordered separatel

Permissible voltage fluctuations+/-10%

Explosion protectionClass I, Div. 1 (US), Class I, Div. 2 (US), Class II, Div. 1 (US), Class II, Div. 2 (US), Class III, Div. 1 (US), Class III, Div. 2 (US), Zone 0 (IEC-EX), Zone 0 (KR), Zone 1 (ATEX), Zone 1 (IEC-EX),

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L, VDMA24364 zone III

Media temperature-20, 60

Ambient temperature-20, 60

Product weight335, 685

Electrical connectionType B, Cable connector M20x1.5, M12x1, A-coded to EN 61076-2-101, Plug, To EN 175301-803, To industry standard (11 mm)

Type of mountingWith through-hole

Breather connectionNot ducted

Pneumatic connection, port 1QS-1/4, QS-5/16, QS-3/8

Pneumatic connection, port 2Connection pattern to NAMUR

Pneumatic connection, port 3QS-1/4, QS-5/16, QS-3/8

Pneumatic connection, port 4Connection pattern to NAMUR

Pneumatic connection, port 5QS-5/16, QS-1/4, QS-3/8

Note on materialsRoHS compliant

Material sealsNBR

Material housingWrought aluminium alloy

Material screwsGalvanised steel

Accessories 54

Genuine accessories that can be used with the Festo VSNC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABD-D3-SN-G14	Exhaust protection · General accessories
VAMC-B10-20-CH2	Cover cap · General accessories
U-1/4	Silencer · Silencer
VACN-N-A1-1	Solenoid coil · Electrical accessories
VACF-A-A1-1	Solenoid coil · Electrical accessories
VAME-S7-Y	Mounting bracket · Mounting accessories
VABF-S7-F1B1P2-F	Throttle plate · General accessories
VABS-S7-S-G14-VDE1	Sub-base · General accessories
U-1/4-B-NPT	Silencer · Silencer
U-1/4-20	Silencer · Silencer
AMTE-M-LH-N14	Silencer · Silencer
NEBV-A1W3F-P-K-0.3-N-M12W3	Connecting cable · Connecting cables
NEBV-A1W3F-P-K-0.6-N-M12W3	Connecting cable · Connecting cables
NEBV-A1W3F-P-K-0.6-N-LE3	Connecting cable · Connecting cables
VACN-N-A1-16B	Solenoid coil · Electrical accessories
VACN-N-A1-3A	Solenoid coil · Electrical accessories
VACN-N-A1-1-EX2-N	Solenoid coil · Electrical accessories
VACN-N-A1-16B-EX2-N	Solenoid coil · Electrical accessories
VACN-N-A1-3A-EX2-N	Solenoid coil · Electrical accessories
VACN-N-A1-1-EX4-A	Solenoid coil · Electrical accessories
VACN-N-K11-3A-0.5-U4-M	Solenoid coil · Electrical accessories
VACN-N-K1-3A-EX4-M	Solenoid coil · Electrical accessories
VACN-N-K1-16B-EX4-M	Solenoid coil · Electrical accessories
VACN-N-K1-1-EX4-M	Solenoid coil · Electrical accessories
VACN-N-K11-16B-0.5-U4-M	Solenoid coil · Electrical accessories
VACN-N-K11-1-0.5-U4-M	Solenoid coil · Electrical accessories
VACF-B-B2-5	Solenoid coil · Electrical accessories
VACF-B-B2-1	Solenoid coil · Electrical accessories
VACF-B-B2-7	Solenoid coil · Electrical accessories
VACF-B-B2-1A	Solenoid coil · Electrical accessories
VACF-B-B2-7A	Solenoid coil · Electrical accessories
VACF-B-B2-16B	Solenoid coil · Electrical accessories
VACF-B-B2-3W	Solenoid coil · Electrical accessories
VACF-A-A1-5	Solenoid coil · Electrical accessories
VACF-A-A1-7	Solenoid coil · Electrical accessories
VACF-A-A1-1A	Solenoid coil · Electrical accessories
VACF-A-A1-7A	Solenoid coil · Electrical accessories
VACF-A-A1-16B	Solenoid coil · Electrical accessories
VACF-A-A1-3W	Solenoid coil · Electrical accessories
VABS-B14-T-FG14	Connecting plate · Mounting accessories
VABF-B14-F1B1P1-FF14	Throttle plate · Mounting accessories
VABF-B14-F1B1P2-FF14	Throttle plate · Mounting accessories
VABS-B14-90-FF14	Mounting plate · Mounting accessories
VABA-B14-FL12-FL14	Mounting plate · Mounting accessories
VABS-B14-270-FF14	Mounting plate · Mounting accessories
VABS-B14-180-FF14	Mounting plate · Mounting accessories
VABF-B14-M3-G14	Exhaust plate · Mounting accessories
VABF-B14-M3-N14	Exhaust plate · Mounting accessories
VABS-B14-T-FN14	Connecting plate · Mounting accessories
VABD-B14-P1-N18	Connector · Mounting accessories
VABD-B14-P1-G18	Connector · Mounting accessories
VACN-N-R3-1	Solenoid coil · Electrical accessories
VACN-N-R4-1	Solenoid coil · Electrical accessories
VAME-B14-S-M5	Screw set · Mounting accessories
