How can I get a price quote for Festo SRBK-CA4-YR90-MW-1-1WG-C2-EX6?

You can request a fast quote for Festo SRBK-CA4-YR90-MW-1-1WG-C2-EX6 from Yılsa Engineering. Reference part number YLSWCMIUFZWCE8E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo SRBK-CA4-YR90-MW-1-1WG-C2-EX6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo SRBK-CA4-YR90-MW-1-1WG-C2-EX6 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo SRBK-CA4-YR90-MW-1-1WG-C2-EX6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

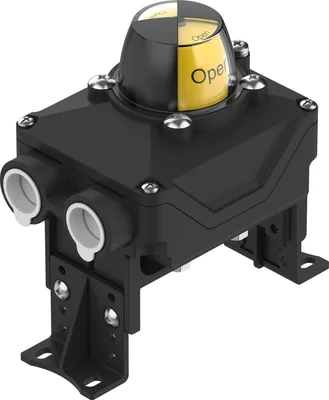

Festo SRBK-CA4-YR90-MW-1-1WG-C2-EX6

Limit switch box. Sturdy polymer housing with UV resistance. Different switch variants – mechanical, inductive and reed switches. Multifunctional mounting adapter for adaptations on the ISO3845 interface. Variants with M12 plug connection for easy installation (plug&play)

FestoMFR # SRBK-CA4-YR90-MW-1-1WG-C2-EX6SKU # YLSWCMIUFZWCE8E

ATEX category gasII 1G

ATEX category dustII 1D

Explosion ambient temperature-20°C <= Ta <= +80°C

Max. input voltage UiSee IECEx certificate

Max. input current IiSee IECEx certificate

Max. input power PiSee IECEx certificate

Have questions?Chat on WhatsApp

About This Product

Festo SRBK-CA4-YR90-MW-1-1WG-C2-EX6

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Explosion protectionZone 0 (ATEX), Zone 0 (IEC-EX), Zone 0 (UKEX), Zone 1 (ATEX), Zone 1 (IEC-EX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 20 (ATEX), Zone 20 (IEC-EX), Zone 20 (UKEX), Zone 21 (ATEX), Zone 21 (IEC-EX), Zone 21

ATEX category gasII 1G

Explosion ignition protection type for gasEx ia IIC T6 ...T4 Ga, Ex ia IIC T6/T5/T4 Gb

ATEX category dustII 1D

Explosion ignition protection type for dustEx ia IIIC T135°C Db, Ex ia IIIC T200 135°C Da

Explosion protection certification outside the EUEPL Ga (GB), EPL Ga (IEC-EX), EPL Gb (GB), EPL Gb (IECEx)

Explosion ambient temperature-20°C <= Ta <= +80°C

Max. input voltage UiSee IECEx certificate

Max. input current IiSee IECEx certificate

Max. input power PiSee IECEx certificate

Effective internal inductivity LiSee IECEx certificate

Effective internal capacitance CiSee IECEx certificate

Max. intrinsically safe circuit input parameterSee IECEx certificate

Certificate issuing authorityEurocert. 93927, FTZU 24 ATEX 0075, IECEx FTZU 24.0024

Note on materialsRoHS compliant

Safety Integrity Level (SIL)SIL 3

Measured variablePosition

Measuring principlemechanical/electrical

Sensing range0, 90

Ambient temperature-20, 70

Switching outputContacting (gold)

Switching element functionToggle switch, single-pin

Max. switching output voltage DC30

Max. output current DC100

Max. switching capacity DC3

Operational voltage range DC0, 30

Microswitch typeOmron SS-01

Electrical connectionScrew terminal

Electrical connection 1, connection typeTerminal strip

Electrical connection 1, cable outletStraight

Electrical connection 1, designSquare

Electrical connection 1, connector systemScrew terminal

Electrical connection 1, number of connections/cores10

Connectable nominal cross section conductor0.25, 2.5

Cable fittingM20x1.5

Dimensions (W x L x H)130 mm x 85 mm x 128 mm, 130 mm x 85 mm x 138 mm, 130 mm x 85 mm x 158 mm, 147 mm x 85 mm x 128 mm, 147 mm x 85 mm x 138 mm

Type of mountingin accordance with VDI/VDE 3845

Connection point for positioner and position sensor conforms to standardVDI/VDE 3845 size AA 1, VDI/VDE 3845 size AA 2, VDI/VDE 3845 size AA 3

Mounting positionAny

Product weight460

Housing colourBlack

Material housingPA66, electrically conductive

Material sealsNBR

Material shaftPA

Material screwsStainless steel

Material mounting bracketPA66, electrically conductive

Material snap ringHigh-alloy stainless steel

Material discHigh-alloy stainless steel

Protective cap materialMakrolon®

Material mounting bridgePA66, electrically conductive

Switching status indicationOptical

Position indicatorYellow/red

Setting range of angular detection0, 90

Storage temperature-20, 50

Degree of protectionIP66, IP67

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Pollution degree3
