How can I get a price quote for Festo CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA?

You can request a fast quote for Festo CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA from Yılsa Engineering. Reference part number YLSZZWV41KPLXDF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

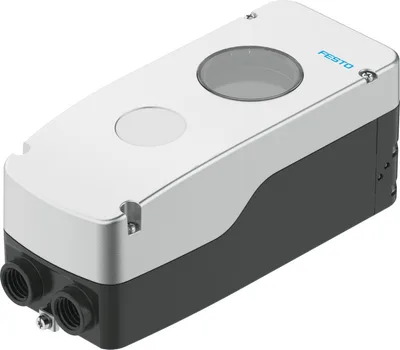

Festo CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA

Positioner. Intelligent, digital electropneumatic positioner with HART communication. Fast and precise position control of single- and double-acting pneumatic rotary and linear drives. With integrated or external path/angular detection. Commissioning, operation, maintenance and diagnostics on the local display via the user-friendly software menu or via remote access with EDD-based (Electronic Device Description) or FDT-based (Field Device Tool) transmission. 2-conductor technology. Perfect interaction with the pneumatic extension modules VTOP. Variants with safety functions. Sustainable operation thanks to efficient control

FestoMFR # CMSH-SE-VDE1-D-A-AL-G14-C1M20-HASKU # YLSZZWV41KPLXDF

DesignDigital, electropneumatic positioner

Mode of operationDouble-acting

Mounting positionAny

Functional principle of measuring systemExternal

DisplayLCD display, via software 90° rotatable

Setting optionsVia display and buttons

Have questions?Chat on WhatsApp

About This Product

Festo CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDigital, electropneumatic positioner

Mode of operationDouble-acting

Design characteristicsSafety pneumatic output 2 exhausted, Safety pneumatic output 4 pressurised

Mounting positionAny

Type of mountingWith accessories, in accordance with VDI/VDE 3845

Functional principle of measuring systemExternal

DisplayLCD display, via software 90° rotatable

Setting optionsVia display and buttons

Cycle time20

Nominal altitude of use<= 2000 m NHN

Overvoltage categoryII

Operating pressure0.14, 0.8

Operating pressure1.4, 8

Operating pressure20.3, 116

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumMaximum particle size 40 µm

Air flow rate at Δp = 6 bar270

Pneumatic connectionG1/4

Reverse polarity protectionYes

Connection resistance3, 80

digital input, signal range4 - 20 mA with HART

Analogue inputs, input impedance480 ohm at 20 mA

Analog inputs, overload protection<65 mA

Analogue inputs, electrical isolationYes

Characteristic for inputs1x to IEC 61131-2, type 3

Digital inputs, reverse polarity protectionYes

Digital inputs, electrical isolationYes

Digital inputs, overload protection33 V

Electrical connection 1, functionAnalogue input, Digital input, External path/angle sensor

Electrical connection 1, connection typeTerminal strip

Electrical connection 1, connector systemSpring-loaded terminal

Electrical connection 1, number of connections/cores7

Cable fitting2x M20x1.5

Max. cable length30 m for external position sensor, Shielded

Ambient temperature-40, 80

Note on ambient temperatureDisplay: -30 - 80 °C

Storage temperature-40, 80

Climatic category1K5 to EN 60721 for storage, 4K3 to EN 60721 for operation

Degree of protectionIP66, IP67

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Pollution degree3

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Material housingAluminium, powder-coated

Material screenMakrolon®

Material screwsGalvanised steel

Material sealsEPDM, NBR, VMQ

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Product weight2520

Accessories 58

Genuine accessories that can be used with the Festo CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LE-T-G14-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10-F1A	One-way flow control valve · Function fittings
U-1/4	Silencer · Silencer
U-1/4-B	Silencer · Silencer
QS-1/4-6-100	Push-in fitting · Push-in fittings
QS-1/4-8-50	Push-in fitting · Push-in fittings
QS-1/4-10-50	Push-in fitting · Push-in fittings
QS-1/4-12-20	Push-in fitting · Push-in fittings
QS-G1/4-6-100	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-12-20	Push-in fitting · Push-in fittings
QS-1/4-10-I-50	Push-in fitting · Push-in fittings
QS-1/4-8-I-50	Push-in fitting · Push-in fittings
QS-1/4-6-I-100	Push-in fitting · Push-in fittings
QS-1/4-6	Push-in fitting · Push-in fittings
QS-1/4-8	Push-in fitting · Push-in fittings
QS-1/4-10	Push-in fitting · Push-in fittings
QS-1/4-6-I	Push-in fitting · Push-in fittings
QS-1/4-8-I	Push-in fitting · Push-in fittings
QS-1/4-10-I	Push-in fitting · Push-in fittings
QS-V0-1/4-6	Push-in fitting · Push-in fittings
QS-V0-1/4-8	Push-in fitting · Push-in fittings
QS-V0-1/4-10	Push-in fitting · Push-in fittings
QS-V0-1/4-12	Push-in fitting · Push-in fittings
QS-1/4-12	Push-in fitting · Push-in fittings
UC-1/4	Silencer · Silencer
QS-1/4-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-1/4-3/8-I-U-M	Push-in fitting · Push-in fittings
MA-23-10-R1/8	Pressure gauge · General accessories
QS-G1/4-6	Push-in fitting · Push-in fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G1/4-10	Push-in fitting · Push-in fittings
QS-G1/4-6-I	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
QS-G1/4-10-I	Push-in fitting · Push-in fittings
QS-V0-G1/4-6	Push-in fitting · Push-in fittings
QS-V0-G1/4-8	Push-in fitting · Push-in fittings
QS-V0-G1/4-10	Push-in fitting · Push-in fittings
QS-V0-G1/4-12	Push-in fitting · Push-in fittings
QS-G1/4-12	Push-in fitting · Push-in fittings
QS-1/4-4	Push-in fitting · Push-in fittings
QS-1/4-12-I	Push-in fitting · Push-in fittings
QS-1/4-1/4-I-U-M	Push-in fitting · Push-in fittings
UC-1/4-20	Silencer · Silencer
U-1/4-20	Silencer · Silencer
AMTE-M-LH-G14	Silencer · Silencer
AMTE-M-H-G14	Silencer · Silencer
DADG-AK-F6-A2	Adapter kit · Mounting accessories
CAFM-M1-K-N1-AA4	Mounting adapter · Mounting accessories
CAFM-M1-K-N1-AA1	Mounting adapter · Mounting accessories
CAFM-M1-K-N1-AA2	Mounting adapter · Mounting accessories
CAFM-M1-K-N1-AA3	Mounting adapter · Mounting accessories
