How can I get a price quote for Festo CMSH-?

You can request a fast quote for Festo CMSH- from Yılsa Engineering. Reference part number YLS7LCNFWVKDXOJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CMSH- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CMSH- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CMSH-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

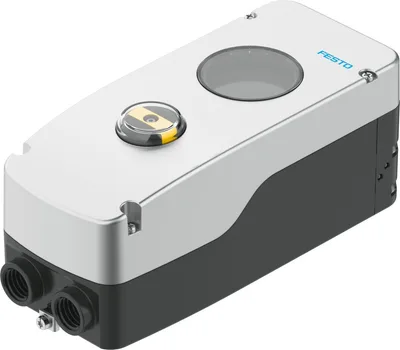

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo CMSH-

Positioner. Intelligent, digital electropneumatic positioner with HART communication. Fast and precise position control of single- and double-acting pneumatic rotary and linear drives. With integrated or external path/angular detection. Commissioning, operation, maintenance and diagnostics on the local display via the user-friendly software menu or via remote access with EDD-based (Electronic Device Description) or FDT-based (Field Device Tool) transmission. 2-conductor technology. Perfect interaction with the pneumatic extension modules VTOP. Variants with safety functions. Sustainable operation thanks to efficient control

FestoMFR # CMSH-SKU # YLS7LCNFWVKDXOJ

DesignDigital, electropneumatic positioner

Mode of operationDouble-acting, Single-acting

Mounting positionAny

Functional principle of measuring systemPotentiometer, External

Sensing range0, 115

DisplayLCD display, via software 90° rotatable

Have questions?Chat on WhatsApp

About This Product

Festo CMSH-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDigital, electropneumatic positioner

Mode of operationDouble-acting, Single-acting

Design characteristicsSafety position - pneumatic outlets closed, Safety pneumatic output 2 exhausted, Safety pneumatic output 4 pressurised

Mounting positionAny

Type of mountingWith accessories, in accordance with VDI/VDE 3845, To VDI/VDE 3847-2

Functional principle of measuring systemPotentiometer, External

Sensing range0, 115

DisplayLCD display, via software 90° rotatable

Setting optionsVia display and buttons

Cycle time20

Nominal altitude of use<= 2000 m NHN

ATEX category gasII (1) 2G, II 2G

Explosion ignition protection type for gasEx ia [ia Ga] IIC T4/T6 Gb, Ex ia [ia Ga] IIC T4...T6 Gb, Ex ib IIC T4/T6 Gb

ATEX category dustII (1) 2D, II 2D

Explosion ignition protection type for dustEx ia [ia Da] IIIC T135°C Db, Ex ib IIIC T135°C Db, Zone 21, AEx ia [ia Da] IIIC T135°C Db

Explosion ambient temperatureT4: -40°C <= Ta <= +80°C, T6: -40°C <= Ta <= +50°C

Certificate issuing authority2025322307006725, BVS 23 ATEX E004, DNV 24.0177, IECEx BVS 23.0001, UL E322346, UL E544513

Max. intrinsically safe circuit input parameterSee IECEx certificate, See ATEX certificate

Max. input power PiSee ATEX certificate, See IECEx certificate

Max. input voltage UiSee ATEX certificate, See IECEx certificate

Max. input current IiSee ATEX certificate, See IECEx certificate

Effective internal capacitance CiSee ATEX certificate, See IECEx certificate

Effective internal inductivity LiSee ATEX certificate, See IECEx certificate

Overvoltage categoryII

Operating pressure0.14, 0.8

Operating pressure1.4, 8

Operating pressure20.3, 116

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumMaximum particle size 40 µm

Air flow rate at Δp = 6 bar270, 380

Note on air flow rateDepending on additional specific accessories

Pneumatic connectionG1/4, 1/4 NPT

Pressure gauge connectionG1/8, 1/8 NPT

Reverse polarity protectionYes

Connection resistance3, 80

digital input, signal range4 - 20 mA with HART

Analogue inputs, input impedance480 ohm at 20 mA

Analog inputs, overload protection<65 mA

Analogue inputs, electrical isolationYes

digital output, signal range4 - 20 mA

Analogue outputs, functional principleRegulated power source with external supply

Analogue outputs, supply voltage24

Analogue outputs, reverse polarity protectionYes

Analog outputs, short circuit current ratingYes

Analog outputs, overload protectionYes

Analogue outputs, galvanic isolationYes

Characteristic for inputs1x to IEC 61131-2, type 3, 2x to IEC 61131-2, type 3

Digital inputs, reverse polarity protectionYes

Digital inputs, electrical isolationYes

Digital inputs, overload protection33 V

Switching output2x to IEC 60947-5-6 or 2x to DIN EN 61131-2 type 2, switchable

Digital outputs, supply voltage8.2 V, 24 V

Digital outputs, short circuit current ratingYes

Digital outputs, overload protectionYes, <30 V

Digital outputs, electrical isolationYes

Electrical connection 1, functionAnalogue input, Digital input, External path/angle sensor

Electrical connection 1, connection typeTerminal strip

Electrical connection 1, connector systemSpring-loaded terminal

Electrical connection 1, number of connections/cores7

Electrical connection 2, function2x digital output, Analogue output, Digital input

Electrical connection 2, connection typeTerminal strip

Electrical connection 2, connector systemSpring-loaded terminal

Electrical connection 2, number of connections/cores8

Cable fitting2x 1/2 NPT, 2x M20x1.5

Max. cable length30 m for external position sensor, Shielded

Ambient temperature-40, 80

Note on ambient temperatureDisplay: -30 - 80 °C

Storage temperature-40, 80

Climatic category1K5 to EN 60721 for storage, 4K3 to EN 60721 for operation

Degree of protectionIP66, IP67

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Pollution degree3

ApprovalRCM, c UL us - Listed (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Explosion protection certification outside the EUEPL Da (CA), EPL Da (US), EPL Db (BR), EPL Db (CN), EPL Db (GB), EPL Db (IEC-EX), EPL Ga (CA), EPL Ga (US), EPL Gb (BR), EPL Gb (CN), EPL Gb (GB), EPL Gb (IECEx)

Material housingAluminium, powder-coated

Material screenMakrolon®

Material shaftHigh-alloy stainless steel

Material couplingHigh-alloy stainless steel

Material screwsGalvanised steel

Material sealsEPDM, NBR, VMQ

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Product weight2045, 2820

Accessories 50

Genuine accessories that can be used with the Festo CMSH- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LE-T-G14-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10-F1A	One-way flow control valve · Function fittings
QS-1/4-6-100	Push-in fitting · Push-in fittings
QS-1/4-8-50	Push-in fitting · Push-in fittings
QS-1/4-10-50	Push-in fitting · Push-in fittings
QS-1/4-12-20	Push-in fitting · Push-in fittings
QS-G1/4-6-100	Push-in fitting · Push-in fittings
QS-G1/4-8-50	Push-in fitting · Push-in fittings
QS-G1/4-10-50	Push-in fitting · Push-in fittings
QS-G1/4-12-20	Push-in fitting · Push-in fittings
QS-1/4-10-I-50	Push-in fitting · Push-in fittings
QS-1/4-8-I-50	Push-in fitting · Push-in fittings
QS-1/4-6-I-100	Push-in fitting · Push-in fittings
QS-1/4-6	Push-in fitting · Push-in fittings
QS-1/4-8	Push-in fitting · Push-in fittings
QS-1/4-10	Push-in fitting · Push-in fittings
QS-1/4-6-I	Push-in fitting · Push-in fittings
QS-1/4-8-I	Push-in fitting · Push-in fittings
QS-1/4-10-I	Push-in fitting · Push-in fittings
QS-V0-1/4-6	Push-in fitting · Push-in fittings
QS-V0-1/4-8	Push-in fitting · Push-in fittings
QS-V0-1/4-10	Push-in fitting · Push-in fittings
QS-V0-1/4-12	Push-in fitting · Push-in fittings
QS-1/4-12	Push-in fitting · Push-in fittings
QS-1/4-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-1/4-3/8-I-U-M	Push-in fitting · Push-in fittings
MA-23-10-R1/8	Pressure gauge · General accessories
QS-G1/4-6	Push-in fitting · Push-in fittings
QS-G1/4-8	Push-in fitting · Push-in fittings
QS-G1/4-10	Push-in fitting · Push-in fittings
QS-G1/4-6-I	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
QS-G1/4-10-I	Push-in fitting · Push-in fittings
QS-V0-G1/4-6	Push-in fitting · Push-in fittings
QS-V0-G1/4-8	Push-in fitting · Push-in fittings
QS-V0-G1/4-10	Push-in fitting · Push-in fittings
QS-V0-G1/4-12	Push-in fitting · Push-in fittings
QS-G1/4-12	Push-in fitting · Push-in fittings
QS-1/4-4	Push-in fitting · Push-in fittings
QS-1/4-12-I	Push-in fitting · Push-in fittings
QS-1/4-1/4-I-U-M	Push-in fitting · Push-in fittings
CAFM-M1-K-N2	Mounting kit · Mounting accessories
CAFM-M1-K-R1-N2	Mounting kit · Mounting accessories
CAFM-M1-CK-N1	Coupling · Mounting accessories
CAFM-M1-CK-N3	Coupling · Mounting accessories
