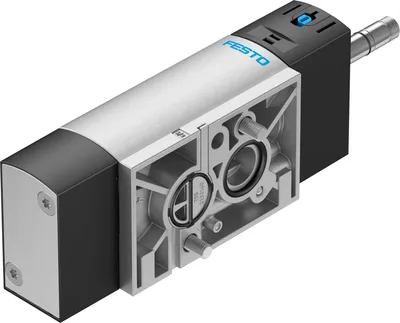

Festo VSNC-FC-M52-MD-G14-F8

Solenoid valve. Namur connection pattern to VDI/VDE 3845. Rotatable seal for 3/2- or 5/2-way valve. Wide choice of EX solenoid systems. Sturdy and powerful. Extended temperature range. Excellent value for money. All solenoid coils can be used on an armature tube. The VSNC-...FN variant achieves greater energy efficiency with reduced power consumption

FestoMFR # VSNC-FC-M52-MD-G14-F8SKU # YLSNYVVCYG5HYJ8

Valve function5/2-way or 3/2-way, convertible

Type of actuationElectrical

Construction width32

pneumatic working portConnection pattern to NAMUR

Operating pressure0.25, 1

Operating pressure2.5, 10

Have questions?Chat on WhatsApp

About This Product

Festo VSNC-FC-M52-MD-G14-F8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way or 3/2-way, convertible

Type of actuationElectrical

Construction width32

Standard nominal flow rate (standardised to DIN 1343)1250

pneumatic working portConnection pattern to NAMUR

Operating voltageVia solenoid coil, must be ordered separately

Operating pressure0.25, 1

Operating pressure2.5, 10

DesignPiston gate valve

Type of resetMechanical spring

Approvalc UL us - Recognised (Oil)

Certificate issuing authorityDNVGL-TAA000011J

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardVDI/VDE 3845 (NAMUR)

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991831

lapOverlap

Signal status displayWith accessories

b value0.4

C value5.2

Standard nominal flow rate, exhaust return 4->3110

Switching time off48

Switching time on11

Duty cycle100%

Characteristic coil dataSee solenoid coil, to be ordered separately

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature-20, 60

Ambient temperature-20, 60

Product weight335

Type of mountingWith through-hole

Breather connectionNot ducted

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2Connection pattern to NAMUR

Pneumatic connection, port 3G1/4

Pneumatic connection, port 4Connection pattern to NAMUR

Pneumatic connection, port 5G1/4

Note on materialsRoHS compliant

Material sealsNBR

Material housingWrought aluminium alloy

Material screwsGalvanised steel

Accessories 17

Genuine accessories that can be used with the Festo VSNC-FC-M52-MD-G14-F8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABF-S7-F1B1P2-F	Throttle plate · General accessories
U-1/4	Silencer · Silencer
VABS-S7-S-G14-VDE1	Sub-base · General accessories
VABD-D3-SN-G14	Exhaust protection · General accessories
VAMC-B10-20-CH2	Cover cap · General accessories
QS-G1/4-10-I	Push-in fitting · Fittings
VACF-A-A1-1	Solenoid coil · Electrical accessories
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-10X1,5-SI	Plastic tubing · Tubes
VAME-S7-Y	Mounting bracket · Mounting accessories
U-1/4-B	Silencer · Silencer
QS-G1/4-6-I	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
U-1/4-20	Silencer · Silencer
QB-1/4-1/4-I-U	Push-in fitting · Push-in fittings
QB-1/4-5/16-I-U	Push-in fitting · Push-in fittings
QB-1/4-3/8-I-U	Push-in fitting · Push-in fittings
