How can I get a price quote for Festo VSNC-FTC-M52-MD-G14-FN-1A1?

You can request a fast quote for Festo VSNC-FTC-M52-MD-G14-FN-1A1 from Yılsa Engineering. Reference part number YLS3NXUASLNEHY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VSNC-FTC-M52-MD-G14-FN-1A1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VSNC-FTC-M52-MD-G14-FN-1A1 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VSNC-FTC-M52-MD-G14-FN-1A1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

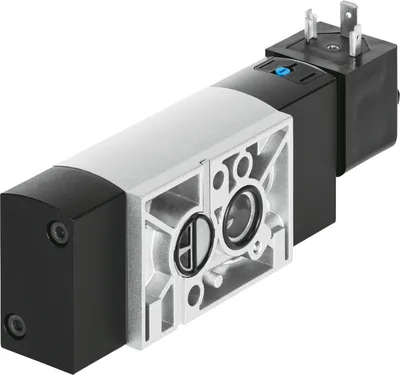

Festo VSNC-FTC-M52-MD-G14-FN-1A1

Solenoid valve. Namur connection pattern to VDI/VDE 3845. Rotatable seal for 3/2- or 5/2-way valve. Wide choice of EX solenoid systems. Sturdy and powerful. Extended temperature range. Excellent value for money. All solenoid coils can be used on an armature tube. The VSNC-...FN variant achieves greater energy efficiency with reduced power consumption

FestoMFR # VSNC-FTC-M52-MD-G14-FN-1A1SKU # YLS3NXUASLNEHY

Valve function5/2-way or 3/2-way, convertible

Type of actuationElectrical

Construction width32

pneumatic working portConnection pattern to NAMUR

Operating voltage24 V DC

Operating pressure0.25, 0.8

Have questions?Chat on WhatsApp

About This Product

Festo VSNC-FTC-M52-MD-G14-FN-1A1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way or 3/2-way, convertible

Type of actuationElectrical

Construction width32

Standard nominal flow rate (standardised to DIN 1343)800

pneumatic working portConnection pattern to NAMUR

Operating voltage24 V DC

Operating pressure0.25, 0.8

Operating pressure2.5, 8

DesignPoppet seat

Type of resetMechanical spring

Certificate issuing authorityDNVGL-TAA000011J

Degree of protectionIP65, IP67, With plug socket, To IEC 60529

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardVDI/VDE 3845 (NAMUR)

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991831

lapUnderlap

Signal status displayWith accessories

b value0.15

C value3.96

Standard nominal flow rate, exhaust return 4->3110

Switching time off120

Switching time on16

Duty cycle100%

Characteristic coil data24 V DC: 0.7 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature-20, 60

Ambient temperature-20, 60

Product weight495

Electrical connectionTo EN 175301-803

Type of mountingWith through-hole

Breather connectionNot ducted

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2Connection pattern to NAMUR

Pneumatic connection, port 3G1/4

Pneumatic connection, port 4Connection pattern to NAMUR

Pneumatic connection, port 5G1/4

Note on materialsRoHS compliant

Material sealsNBR

Material housingWrought aluminium alloy

Material screwsGalvanised steel

Accessories 30

Genuine accessories that can be used with the Festo VSNC-FTC-M52-MD-G14-FN-1A1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABF-S7-F1B1P2-F	Throttle plate · General accessories
U-1/4	Silencer · Silencer
VABS-S7-S-G14-VDE1	Sub-base · General accessories
VABD-D3-SN-G14	Exhaust protection · General accessories
PUN-H-10X1,5-BL	Plastic tubing · Tubes
VAMC-B10-20-CH2	Cover cap · General accessories
PUN-H-10X1,5-SI	Plastic tubing · Tubes
VAME-S7-Y	Mounting bracket · Mounting accessories
QS-G1/4-10-I	Push-in fitting · Fittings
U-1/4-B	Silencer · Silencer
QS-G1/4-6-I	Push-in fitting · Push-in fittings
QS-G1/4-8-I	Push-in fitting · Push-in fittings
U-1/4-20	Silencer · Silencer
QB-1/4-1/4-I-U	Push-in fitting · Push-in fittings
QB-1/4-5/16-I-U	Push-in fitting · Push-in fittings
QB-1/4-3/8-I-U	Push-in fitting · Push-in fittings
NEBV-A1W3F-P-K-0.3-N-M12W3	Connecting cable · Connecting cables
NEBV-A1W3F-P-K-0.6-N-M12W3	Connecting cable · Connecting cables
NEBV-A1W3F-P-K-0.6-N-LE3	Connecting cable · Connecting cables
VABS-B14-T-FG14	Connecting plate · Mounting accessories
VABF-B14-F1B1P1-FF14	Throttle plate · Mounting accessories
VABF-B14-F1B1P2-FF14	Throttle plate · Mounting accessories
VABS-B14-90-FF14	Mounting plate · Mounting accessories
VABA-B14-FL12-FL14	Mounting plate · Mounting accessories
VABS-B14-270-FF14	Mounting plate · Mounting accessories
VABS-B14-180-FF14	Mounting plate · Mounting accessories
VABF-B14-M3-G14	Exhaust plate · Mounting accessories
VABD-B14-P1-N18	Connector · Mounting accessories
VABD-B14-P1-G18	Connector · Mounting accessories
VAME-B14-S-M5	Screw set · Mounting accessories
