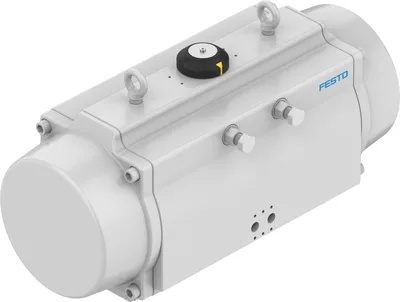

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DFPD-4500-...

Quarter turn actuator. Uniform torque characteristic across the entire rotation angle of 90° with the double-acting version. Version with swivel angle 120°, 135°, 180° for the sizes 40, 120, 240, 480, double-acting. Process valve connection to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Sturdy, non-slip and easy-to-clean aluminium housing. Long service life, low wear. Sustainable thanks to extended life cycle and easier repairs. Increased corrosion protection

FestoMFR # DFPD-4500-...SKU # YLSPTYEIREN2KYU

Size of valve actuator4500

Flange hole patternF1625

Swivel angle90

End-position adjustment range at 0°-5, 5

Shaft connection depth50, 57

Fitting connection conforms to standardISO 5211

Have questions?Chat on WhatsApp

About This Product

Festo DFPD-4500-...

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator4500

Flange hole patternF1625

Swivel angle90

End-position adjustment range at 0°-5, 5

End-position adjustment range at nominal swivel angle-5, 5

Shaft connection depth50, 57

Fitting connection conforms to standardISO 5211

Mounting positionAny

Mode of operationDouble-acting, Single-acting

DesignScotch yoke system, Rack and pinion

Closing directionCloses to the right, closes to the left

Symbol00991265, 00991266

Valve connection conforms to standardVDI/VDE 3845 (NAMUR)

Connection point for positioner and position sensor conforms to standardVDI/VDE 3845 size AA 3

Safety functionThe safety function consists of the actuator switching to the specified safety switching position. This switching movement is achieved by pressurising the corresponding pressure chamber with compresse

Safety Integrity Level (SIL)up to SIL 2 Low Demand mode, Up to SIL 3 in a redundant architecture

Certified for safety function to ISO 13849 and IEC 61508 (SIL)Product can be used in SRP/CS up to SIL 2 (Low Demand), Up to SIL 3 in a redundant architecture

Burst pressure23.37

Operating pressure0.2, 0.78

Operating pressure2, 7.8

Operating pressure29, 113.1

Nominal operating pressure0.3, 0.6

Nominal operating pressure3, 6

Nominal operating pressure43.5, 87

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Certificate issuing authorityGerman Technical Control Board (TÜV) Rheinland 968/V 2959.00/2025

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T6 Gb

Explosion ignition protection type for dustEx h IIIC T85°C Db

Explosion ambient temperature-20°C <= Ta <= +80°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:3:4]

Note on operating and pilot mediumDew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 60

Ambient temperature-20, 80

Torque at nominal operating pressure and 0° swivel angle1316, 4780

Torque at nominal operating pressure and 90° swivel angle875, 4780

Note on torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.

Spring return torque at 0° swivel angle952, 2002

Spring return torque at 90° swivel angle1414, 3476

Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°105, 404.6

Product weight109000, 228000

Shaft connectionT46, T55

Pneumatic connectionG1/2

Note on materialsRoHS compliant

Material end capSteel

Material stop screwSteel

Material sub-baseAnodised wrought aluminium alloy

Material coverPainted die-cast aluminium

Material sealsNBR

Material springSpring steel

Material spring rodSteel

Material housingAnodised aluminium, Spheroidal graphite cast iron

Material number housingEN AW-6005

Material pistonDie-cast aluminium, Spheroidal graphite cast iron

Material piston rodSteel

Material bearingPOM

Material screwsHigh-alloy stainless steel

Material shaftNickel-plated steel

Material tie rodSteel

Material cylinder barrelSteel

Accessories 192

Genuine accessories that can be used with the Festo DFPD-4500-... motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VFOE-LE-T-G12-Q12	One-way flow control valve · Function fittings
DARQ-R-A-S46-S36-46	Reducing sleeve (square) · Mounting accessories
CMSH-S-VDE1-D-A-AL-G14-C1M20-HA	Positioner · Cylinder sensors for direct mounting
CMSH-S-VDE1-D-A-AL-N14-C1N12-HA	Positioner · Cylinder sensors for direct mounting
CMSH-S-V-SD-AL-C1M20-HA	Positioner · Cylinder sensors for direct mounting
CMSH-S-V-SD-AL-C1N12-HA	Positioner · Cylinder sensors for direct mounting
CMSH-S-VDE1-S-A-AL-G14-C1M20-HA	Positioner · Cylinder sensors for direct mounting
CMSH-S-VDE1-S-A-AL-N14-C1N12-HA	Positioner · Cylinder sensors for direct mounting
VFOE-LE-T-G12-Q12-P20	One-way flow control valve · Function fittings
SRBC-CA4-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1WG-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-N-20N-ZC-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-20N-ZC-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-P-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-N-20N-ZC-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-50-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-50-C	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-S-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-S-50-A	Positioner · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-ZU-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-R-2A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-P-M12	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-N-1-ZU-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-R-2A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
CMSH-S-VDE1-D-A-AL-G14-C1M20-HA-V2	Positioner · Cylinder sensors for direct mounting
CMSH-S-VDE1-D-C-AL-G14-C1M20-HA-V2	Positioner · Cylinder sensors for direct mounting
CMSH-S-VDE1-S-A-AL-G14-C1M20-HA-V2	Positioner · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1WG-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-1-1WG-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
DARQ-R-A-S46-S27-46	Reducing sleeve · Mounting accessories
DARQ-R-A-S46-S22-46	Reducing sleeve · Mounting accessories
SRBE-CA3-YR90-MW-22A-1W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-1W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-P-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-N-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-22A-1W-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-ZU-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-R-2A-1W-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBG-C1-N-1-AS-M12-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-20N-ZC-M12-EX5	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-P-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-ZU-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-20N-ZC-C2-C2-EX5	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-P-C2-C2	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-ZU-C2-C2	Sensorbox · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-130-C	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-D-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-D-50-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-D-130-C	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-D-50-C	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-S-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-S-50-A	Positioner · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-1W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRAP-M-CA1-GR270-1-A-TP20-EX2	Sensorbox · Cylinder sensors for direct mounting
SRAP-M-CA1-YB270-1-A-TP20	Sensorbox · Cylinder sensors for direct mounting
SRAP-M-CA1-GR270-1-A-T2P20	Sensorbox · Cylinder sensors for direct mounting
SRAP-M-CA1-GR270-1-A-T2P20-EX2	Sensorbox · Cylinder sensors for direct mounting
SRAP-M-CA1-BB270-1-A-TP20	Sensorbox · Cylinder sensors for direct mounting
SRAP-M-CA1-GR270-1-A-TM20	Sensorbox · Cylinder sensors for direct mounting
SRAP-M-CA1-270-1-A-T2P20	Sensorbox · Cylinder sensors for direct mounting
QS-G1/2-12	Push-in fitting · Push-in fittings
QS-G1/2-16	Push-in fitting · Push-in fittings
QS-G1/2-12-I	Push-in fitting · Push-in fittings
NVF3-MOH-5/2-K-1/4	Solenoid valve · Valves
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
VSNC	Solenoid valve · Valves
NPFC-L-2G12-F	Elbow fitting · Push-in fittings
NPFC-Y-3G12-F	Y-fitting · Push-in fittings
NPFC-T-3G12-F	T-fitting · Push-in fittings
NPFC-T-2G12-R12-FMF	T-fitting · Push-in fittings
NPFC-X-4G12-F	X-fitting · Push-in fittings
NPFC-T-G12-2R12-FMM	T-fitting · Push-in fittings
NPFC-D-2G12-M	Double nipple · Push-in fittings
NPFC-S-2G12-F	Sleeve · Push-in fittings
NPFC-E1-2G12-FM	Extension · Push-in fittings
NPFC-R-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-FM	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G18-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G14-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G38-F	Reducing sleeve · Push-in fittings
NPFC-D-2G12-M-P50	Double nipple · Push-in fittings
NPFC-D-G12-G34-M	Double nipple · Push-in fittings
NPFC-R-G12-G14-MF-P50	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF-P50	Reducing nipple · Push-in fittings
NPFC-H-G12-F	Bulkhead fitting · Push-in fittings
VSNC-FC-M52-MD-G14-FN-1A1+G	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-3AA1+G	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8-1A1	Solenoid valve · Valves
NPFC-DS-G14-G12-M	Double nipple · Push-in fittings
NPFC-DS-G38-G12-M	Double nipple · Push-in fittings
NPFC-DS-G12-G12-M	Double nipple · Push-in fittings
NPFC-RS-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-RS-G12-G38-MF	Reducing nipple · Push-in fittings
VOFC-LT-M32C-MC-FG13-F19	Valve · Valves
VOFC-LT-M32C-MC-FG13-F19A	Valve · Valves
VOFC-LT-M32C-M-FG14-F19	Valve · Valves
VOFC-LT-M32C-M-FG14-F19A	Valve · Valves
VOFC-LT-M32C-M-FG12-F19A	Valve · Valves
VOFC-LT-M32C-MC-FGP14-F19	Valve · Valves
VOFC-LT-M32C-MC-FGP14-F19A	Valve · Valves
VOFC-LT-M32C-M-FG12-F19	Valve · Valves
VOFC-L-B52-FG14-F19	Valve · Valves
VOFC-L-M52-M-FG14-F19	Valve · Valves
VOFC-L-M52-M-FG14-F19A	Valve · Valves
VOFC-L-B52-FG14-F19A	Valve · Valves
VOFD-L50T-M32-MN-FG14-10-F10	Valve · Valves
VOFD-L50T-M32-MN-FGP14-10-F10	Valve · Valves
NVF3-MOH-5/2-K..+MSFW-230	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFW-110	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFG-24	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8	Solenoid valve · Valves
VSNC-F-B52-D-G14-F8	Solenoid valve · Valves
VSNC-F-P53C-MD-G14-F8	Solenoid valve · Valves
VSNC-F-P53U-MD-G14-F8	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53E-MD-G14-F8	Solenoid valve · Valves
VSNC-F-B52-D-N14-F8	Solenoid valve · Valves
VSNC-F-P53C-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53E-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53U-MD-N14-F8	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN	Solenoid valve · Valves
VSNC-F-B52-D-G14-FN	Solenoid valve · Valves
VSNC-F-P53C-MD-G14-FN	Solenoid valve · Valves
VSNC-F-P53U-MD-G14-FN	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53E-MD-G14-FN	Solenoid valve · Valves
VSNC-F-B52-D-N14-FN	Solenoid valve · Valves
VSNC-F-P53C-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53E-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53U-MD-N14-FN	Solenoid valve · Valves
VSNC-FTC-M52-MD-G14-FN	Solenoid valve · Valves
VSNC-FT-B52-D-G14-FN	Solenoid valve · Valves
VSNC-FTC-M52-MD-N14-FN	Solenoid valve · Valves
VSNC-FT-B52-D-N14-FN	Solenoid valve · Valves
VSNC-F-B52-D-G14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-F-B52-D-N14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-F-B52-D-G14-F8-1B2	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8-1B2	Solenoid valve · Valves
VSNC-FTC-M52-MD-G14-FN-1A1	Solenoid valve · Valves
VSNC-FT-B52-D-G14-FN-1A1	Solenoid valve · Valves
NPQH-L-G12-Q12-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G12-Q10-P10	Push-in L-fitting · Push-in fittings
NPQH-L-G12-Q14-P10	Push-in L-fitting · Push-in fittings
NPQH-D-G12-Q10-P10	Push-in fitting · Push-in fittings
NPQH-D-G12-Q12-P10	Push-in fitting · Push-in fittings
NPQH-D-G12-Q14-P10	Push-in fitting · Push-in fittings
NPQH-D-G12-S12-P10	Push-in fitting · Push-in fittings
NPQH-T-G12-Q10-P10	Push-in T-fitting · Push-in fittings
NPQH-T-G12-Q12-P10	Push-in T-fitting · Push-in fittings
NPQH-BK-G12-P10	Plug screw · Push-in fittings
NVF3-MOH-5/2-K-1/4-EX	Solenoid valve · Valves
CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA	Positioner · Cylinder sensors for direct mounting
CMSH-	Positioner · Cylinder sensors for direct mounting
