Siemens 6EP3437-8SB00-0AY0 için nasıl fiyat teklifi alabilirim?

Siemens 6EP3437-8SB00-0AY0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-937FC780B559 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6EP3437-8SB00-0AY0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6EP3437-8SB00-0AY0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6EP3437-8SB00-0AY0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

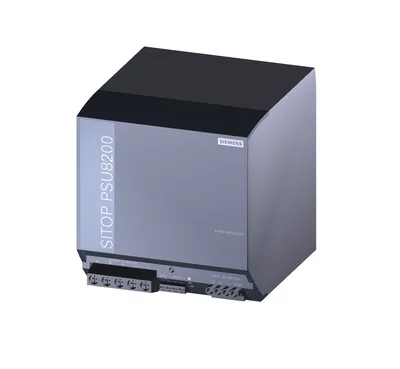

Siemens 6EP3437-8SB00-0AY0

SITOP PSU8200 24 V/40 A stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/40 A

SiemensMFR # 6EP3437-8SB00-0AY0SKU # CEY-937FC780B559

product brand nameSITOP

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/40 A

type of the power supply network3-phase AC

phase number3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP PSU8200 24 V/40 A stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/40 A

Siemens 6EP3437-8SB00-0AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/40 A

input

type of the power supply network3-phase AC

phase number3

voltage curve at inputAC

minimum rated value400 V

maximum rated value500 V

initial value320 V

full-scale value575 V

at 50 Hz400 V

at 60 Hz500 V

line frequency50/60 Hz

line frequency45... 65 Hz

wide range inputVar

buffering time for rated value of the output current in the event of power failure minimum10 ms

operating condition of the mains bufferingVin = 400 V

at rated input voltage 400 V2,1 A

at rated input voltage 500 V1,7 A

current limitation of inrush current at 25 °C maximum13 A

I2t value maximum2,24 A²·s

fuse protection typeyok

fuse protection type in the feederRequired: 3-pole connected miniature circuit breaker 10... 16 A characteristic C veya circuit breaker 3RV2011-1DA10 (setting 3 A) veya 3RV2711-1DD10 (UL 489)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via potentiometer

adjustable output voltage24... 28 V; maks. 960 W

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,1 %

on slow fluctuation of ohm loading0,2 %

maximum100 mV

maximum240 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0,3 A) for "24 V OK"

behavior of the output voltage when switching onminimal overshooting (< 2 %)

response delay maximum0,1 s

maximum100 ms

rated value40 A

rated range0... 40 A; +60... +70 °C: Derating 4%/K

supplied active power typical960 W

at short-circuit during operation typical120 A

at short-circuit during operation25 ms

on short-circuiting during the start-up typical44 A

bridging of equipmentVar; switchable characteristic

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent94 %

at rated output voltage for rated value of the output current typical66 W

during no-load operation maximum4 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical3 %

maximum10 ms

protection and monitoring

design of the overvoltage protection< 31,8 V

property of the output short-circuit proofVar

design of short-circuit protectionAlternatively, constant current characteristic yaklaşık 44 A veya latching shutdown

typical44 A

in normal operationoverload capability 150 % Iout rated up to 5 s/min

typical50 A

display version for overload and short circuitLED yellow for "overload", LED red for "latching shutdown"

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum1 mA

typical0,6 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259

EAC approvalVar

Regulatory Compliance Mark (RCM)Var

NEC Class 2Yok

SEMI F47Var

BISVar; R-41183539

CB-certificateVar

MTBF at 40 °C517.015 h

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalVar

American Bureau of Shipping Europe Ltd. (ABS)Var

French marine classification society (BV)Yok

Det Norske Veritas (DNV)Var

Lloyds Register of Shipping (LRS)Yok

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total1.751,8 kg

during manufacturing78,9 kg

during operation1.671,3 kg

after end of life0,66 kg

ambient conditions

during operation-25... +70 °C; With natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

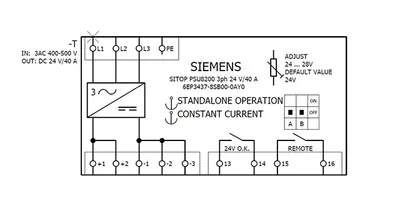

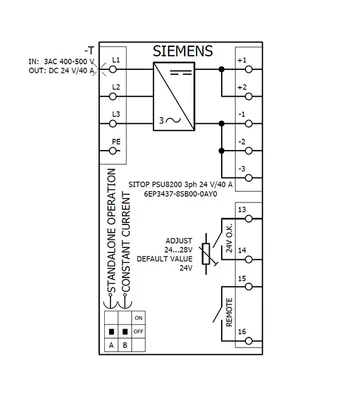

connection method

type of electrical connectionscrew terminal

at inputL1, L2, L3, PE: 1 screw terminal her biri for 0,5... 4 mm² single-core/finely stranded

at output+: 2 screw terminals her biri for 0,5... 16 mm²; -: 3 screw terminals her biri for 0,5... 16 mm²

for auxiliary contacts13, 14 (alarm signal), 15, 16 (Remote): 1 screw terminal her biri for 0,05... 2,5 mm²

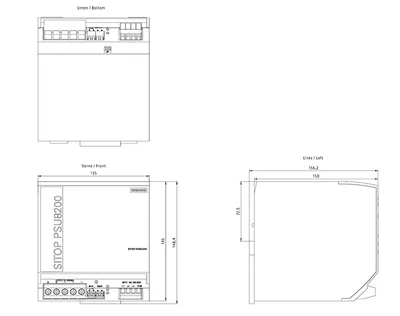

mechanical data

width × height × depth of the enclosure135 × 145 × 150 mm

installation width × mounting height135 mm × 225 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight3,3 kg

accessories

electrical accessoriesBuffer module

mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing78,9 kg

global warming potential [CO2 eq] / during operation1671,3 kg

global warming potential [CO2 eq] / after end of life0,66 kg

global warming potential [CO2 eq] / total1751,8 kg

Aksesuarlar 34

Siemens 6EP3437-8SB00-0AY0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6EP4437-7FB00-3DX0	Aksesuar · Selectivity module
6EP4437-7EB00-3DX0	Aksesuar · Selectivity module
6EP4231-7HB00-0AX0	Aksesuar · Buffer module · #NO_DATA#
6EP4348-7RB00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
6EP1933-2EC41	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4137-3AB00-2AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP1961-2BA11	Aksesuar · Selectivity module
6EP1961-2BA21	Aksesuar · Selectivity module
6EP1961-2BA31	Aksesuar · Selectivity module
6EP1961-2BA41	Aksesuar · Selectivity module
6EP1961-2BA51	Aksesuar · Selectivity module
6EP4437-7FB00-3CX0	Aksesuar · Selectivity module
6EP4438-7FB00-3DX0	Aksesuar · Selectivity module
6EP4437-7EB00-3CX0	Aksesuar · Selectivity module
6EP4438-7EB00-3DX0	Aksesuar · Selectivity module
6EP4437-8FB00-4CY0	Aksesuar · Selectivity system
6EP1961-3BA01	Aksesuar · Buffer module · #NO_DATA#
6EP1962-2BA00	Aksesuar · Redundancy module · #NO_DATA#
6EP1961-3BA21	Aksesuar · Redundancy module · #NO_DATA#
6EP4548-7XB00-3AX0	Aksesuar · Chopper module · #NO_DATA#
6EP1933-2EC51	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4134-3AB00-2AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4347-7RB00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
6EP4136-3AB00-2AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4137-3AB00-0AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4134-3AB00-0AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4136-3AB00-0AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP1961-2BA00	Aksesuar · Diagnosis module · #NO_DATA#
6EP1935-5PG01	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4134-3AB00-1AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4136-3AB00-1AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4137-3AB00-1AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
6EP1964-2BA00	Aksesuar · Redundancy module · #NO_DATA#
