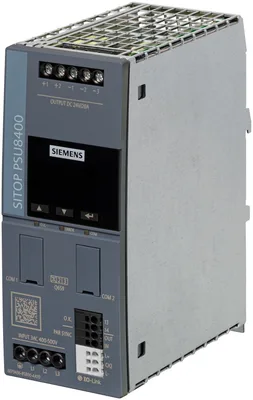

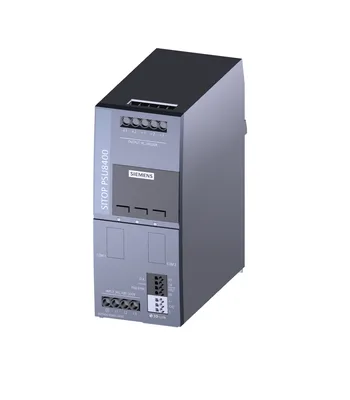

Siemens 6EP3436-8SB00-4AY0

SITOP PSU8400 3AC 20A IOL stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/20 A ile IO-Link bağlantı

SiemensMFR # 6EP3436-8SB00-4AY0SKU # YLST2HQDBO40YRT

product brand nameSITOP

product type designationPSU8400

product designationPower supply SITOP PSU8400

type of current supply24 V/20 A

type of the power supply network3-phase AC veya DC

phase number3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP PSU8400 3AC 20A IOL stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/20 A ile IO-Link bağlantı

Siemens 6EP3436-8SB00-4AY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationPSU8400

product designationPower supply SITOP PSU8400

type of current supply24 V/20 A

input

type of the power supply network3-phase AC veya DC

phase number3

voltage curve at inputAC/DC

minimum rated value400 V

maximum rated value500 V

initial value323 V

full-scale value576 V

supply voltage at ACDerating 323... 360 ve 550... 576 V

supply voltage at DC500... 550 V

input voltage at DC450... 600 V

at 50 Hz400 V

at 60 Hz500 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

buffering time for rated value of the output current in the event of power failure minimum30 ms

operating condition of the mains bufferingVin = 400 V

at rated input voltage 400 V0,9 A

at rated input voltage 500 V0,7 A

at rated input voltage 500 V1,4 A

at rated input voltage 550 V1 A

current limitation of inrush current at 25 °C maximum3 A

I2t value maximum0,1 A²·s

fuse protection typeyok

fuse protection type in the feederrequired: 3-pole coupled miniature circuit breaker (IEC 898; for UL: UL489-listed/category DIVQ) characteristic C: 4 - 16 A, veya circuit breaker (e.g. 3RV2011-1EA10, 3RV2711-1ED10 (UL489)), alternatively slow fuses (for UL: UL248-listed); suitable DC protection must be provided when operating with DC power supply.

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

number of outputs1

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via display ve IO-Link interface

adjustable output voltage22... 28 V; Derating > 24 V: maks. 480 W power output (576 W to 45°C)

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,2 %

on slow fluctuation of ohm loading0,2 %

maximum20 mV

maximum100 mV

display version for normal operationdisplay ve 3-color LED for operating, fault ve communication status

type of signal at outputrelay contact (NO contact, contact rating DC 30 V/0,1 A) for "24 V O.K."; configurable via IO-Link

behavior of the output voltage when switching onYok overshoot of Vout (soft start)

response delay maximum0,5 s

typical50 ms

maximum50 ms

rated value20 A

per output20 A

at output 1 rated value20 A

rated range0... 20 A; 24 A up to 45 °C; +60... +70 °C: derating 3,75%/K

supplied active power typical480 W

at short-circuit during operation typical60 A

at short-circuit during operation25 ms

at short-circuit during operation typical24 A

bridging of equipmentVar; active load distribution via control contact veya inclined output characteristic can be selected via display ve IO-Link

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent96 %

at rated output voltage for rated value of the output current typical20 W

during no-load operation maximum3,3 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical1 %

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3 %

maximum3 ms

protection and monitoring

design of the overvoltage protectionmaks. 32 V

property of the output short-circuit proofVar

design of short-circuit protectionconstant current characteristic veya latching shutdown (selectable via display ve IO-Link)

response value current limitation15... 24,5 A

design of the current limitationadjustable via display ve IO-Link

in normal operation150 % IaRated up to 5 s/min (configurable via display ve IO-Link)

maximum28 A

typical24 A

display version for overload and short circuitdisplay ve 3-color LED for operating status

design of the reset device/resetting mechanismvia display ve IO-Link

interfaces

product function communication functionVar

design of the interfaceIO-Link

IO-Link protocolVar

IO-Link transfer rateCOM3 (230,4 kBaud)

number of IO-Link ports1

point-to-point cycle time between master and IO-Link device minimum10 ms

data volume of the address range of the outputs with cyclical transfer for all IO-Link ports maximum3 bayt

data volume of the address range of the inputs with cyclical transfer for all IO-Link ports maximum13 bayt

protocol between master and IO-Link device Version 1.1Var

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3,5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259

UKCA markingVar

EAC approvalVar

Regulatory Compliance Mark (RCM)Var

NEC Class 2Yok

SEMI F47Var

CB-certificateVar

MTBF at 40 °C440.000 h

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

UKEXYok

CCC for hazardous zone according to GB standardYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalYok

American Bureau of Shipping Europe Ltd. (ABS)Yok

French marine classification society (BV)Yok

Det Norske Veritas (DNV)Yok

Lloyds Register of Shipping (LRS)Yok

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total541,3 kg

during manufacturing33,8 kg

during operation506,8 kg

after end of life0,3 kg

ambient conditions

during operation-40... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

connection method

type of electrical connectionscrew-type terminals ve push-in terminals

at inputL1, L2, L3, PE: 1 screw terminal her biri for 0,2... 4 mm² single-core/finely stranded

at output+1, +2, -1, -2, -3: 1 screw terminal her biri for 0,5... 6 mm² solid/finely stranded (4 mm² with ferrule)

for auxiliary contactsPAR SYNC OUT/IN: 1 push-in terminal her biri for 0,2... 1,5 mm²

for signaling contact13, 14: 1 push-in terminal her biri for 0,2... 1,5 mm²

removable terminal at inputYok

removable terminal at outputYok

design of the interface for communicationL+, C/Q, L- (IO-Link): 1 push-in terminal her biri for 0,2... 1,5 mm²

mechanical data

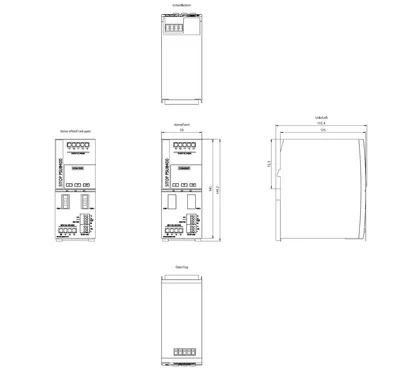

width × height × depth of the enclosure59 × 145 × 125 mm

installation width × mounting height59 mm × 225 mm

top40 mm

bottom40 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight1,15 kg

further information internet links

identification linkVar; acc. to IEC 61406-1:2022

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing33,8 kg

global warming potential [CO2 eq] / during operation506,8 kg

global warming potential [CO2 eq] / after end of life0,3 kg

global warming potential [CO2 eq] / total541,3 kg
