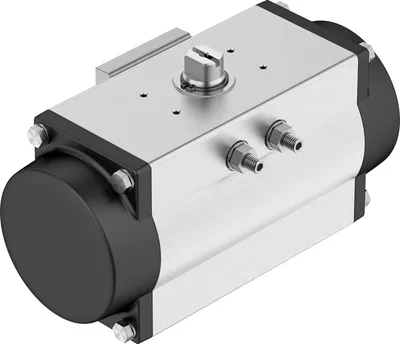

Festo DFPD-N-160-RP-90-RS60-F07-17-R3-C
Quarter turn actuator. Uniform torque characteristic across the entire rotation angle of 90° with the double-acting version. Version with swivel angle 120°, 135°, 180° for the sizes 40, 120, 240, 480, double-acting. Process valve connection to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Sturdy, non-slip and easy-to-clean aluminium housing. Long service life, low wear. Sustainable thanks to extended life cycle and easier repairs. Increased corrosion protection
Size of valve actuator160
Flange hole patternF07
Swivel angle90
End-position adjustment range at 0°-5, 5
Shaft connection depth19
Fitting connection conforms to standardISO 5211
About This Product
Quarter turn actuator. Uniform torque characteristic across the entire rotation angle of 90° with the double-acting version. Version with swivel angle 120°, 135°, 180° for the sizes 40, 120, 240, 480, double-acting. Process valve connection to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Sturdy, non-slip and easy-to-clean aluminium housing. Long service life, low wear. Sustainable thanks to extended life cycle and easier repairs. Increased corrosion protection
Festo DFPD-N-160-RP-90-RS60-F07-17-R3-C
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size of valve actuator160
Flange hole patternF07
Swivel angle90
End-position adjustment range at 0°-5, 5
End-position adjustment range at nominal swivel angle-5, 5
Shaft connection depth19
Fitting connection conforms to standardISO 5211
Mounting positionAny
Mode of operationSingle-acting
DesignRack and pinion
Closing directionCloses to the right
Symbol00991266
Valve connection conforms to standardVDI/VDE 3845 (NAMUR)
Connection point for positioner and position sensor conforms to standardVDI/VDE 3845 size AA 1
Device type according to VDMA 66413Safety device
Safety functionThe safety function consists of the actuator switching to the specified safety switching position when the compressed air is switched off and the spring chamber is exhausted. This switching movement i
Safety Integrity Level (SIL)up to SIL 2 Low Demand mode, Up to SIL 3 in a redundant architecture, Up to SIL 1 high demand mode
Certified for safety function to ISO 13849 and IEC 61508 (SIL)Product can be used in SRP/CS up to SIL 2 (Low Demand), Product can be used in SRP/CS up to SIL 1 (High Demand), Up to SIL 3 in a redundant architecture
Burst pressure24
Operating pressure0.2, 0.8
Operating pressure2, 8
Operating pressure29, 116
Nominal operating pressure0.6
Nominal operating pressure6
Nominal operating pressure87
Maritime classificationSee certificate
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)To UK EX instructions
Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)
Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
Certificate issuing authorityDNV TAP00001CE, German Technical Control Board (TÜV) Rheinland 968/V 1106.01/2023
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx h IIC T4 Gb X
Explosion ignition protection type for dustEx h IIIC T105°C Db X
Explosion ambient temperature-20°C <= Ta <= +80°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumDew point at least 10 °C below the ambient temperature and temperature of the medium, Lubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20, 60
Ambient temperature-20, 80
Torque at nominal operating pressure and 0° swivel angle117.9
Torque at nominal operating pressure and 90° swivel angle61.4
Note on torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.
Spring return torque at 0° swivel angle57.7
Spring return torque at 90° swivel angle114.2
Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°5.9
Product weight7206
Shaft connectionT17
Pneumatic connection1/4 NPT
Note on materialsRoHS compliant
Material sub-baseAnodised wrought aluminium alloy
Material coverAnodised die-cast aluminium
Material sealsNBR
Material springSpring steel
Material housingAnodised aluminium
Material pistonDie-cast aluminium
Material bearingPOM
Material camHigh-alloy stainless steel
Material screwsHigh-alloy stainless steel
Material shaftHigh-alloy stainless steel
Accessories 190
Genuine accessories that can be used with the Festo DFPD-N-160-RP-90-RS60-F07-17-R3-C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SRBC-CA3-YR90-N-1-P-C2P20 | Limit switch box · General accessories | |
| SRBC-CA3-YR90-R-2A-1W-C2P20 | Limit switch box · General accessories | |
| SASF-S2-B-F-A34 | Position indicator · General accessories | |
| PUN-H-1/4-BL-150-CB | Plastic tubing · Tubes | |
| PUN-H-5/16-SW-150-CB | Plastic tubing · Tubes | |
| PUN-H-5/16-NT-150-CB | Plastic tubing · Tubes | |
| NEBA-M12G5-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M12G5-U-5-N-LE3 | Connecting cable · Connecting cables | |
| U-1/4-B-NPT | Silencer · Silencer | |
| VSNC-FC-M52-MD-N14-F8 | Solenoid valve · Valves | |
| KMF-1-24DC-2.5-LED | Plug socket with cable · Electrical accessories | |
| KMF-1-230AC-2.5 | Plug socket with cable · Electrical accessories | |
| VACF-B-B2-1 | Solenoid coil · Electrical accessories | |
| VACF-B-B2-16B | Solenoid coil · Electrical accessories | |
| QB-1/4-5/16-I-U | Push-in fitting · Fittings | |
| QSYL-1/4-5/32-U | Push-in T-fitting · Push-in fittings | |
| QSYL-1/4-1/4-U | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-5/16-U | Push-in T-fitting · Push-in fittings | |
| QSR-1/4-1/4-U | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-5/16-U | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-1/4-U | Push-in L-fitting · Push-in fittings | |
| QSMK-1/4-1/4-U | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-3/8-U | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-1/4-U | Push-in L-fitting · Push-in fittings | |
| QSKL-1/4-3/8-U | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-1/4-I-U | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-5/16-I-U | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-3/8-I-U | Push-in L-fitting · Push-in fittings | |
| QSLV2-1/4-1/4-U | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-3/8-U | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-1/4-U | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-3/8-U | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-1/4-U | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-3/8-U | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-1/4-U | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-3/8-U | Multiple distributor · Push-in fittings | |
| QSTF-1/4-3/8-U | Push-in T-fitting · Push-in fittings | |
| NVF3-MOH-5/2-K-1/4 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K-1/4-EX | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFW-230 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFW-110 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFG-24 | Solenoid valve · Valves | |
| SRAP-M-CA1-BB270-1-A-TP20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-TM20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-TP20-EX2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-YB270-1-A-TP20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-T2P20 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-GR270-1-A-T2P20-EX2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRAP-M-CA1-270-1-A-T2P20 | Sensorbox · Cylinder sensors for direct mounting | |
| VSNC-FC-M52-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-FT-B52-D-G14-FN | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-FT-B52-D-N14-FN | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-F8-1B2 | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-F8-1B2 | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-G14-FN-1A1 | Solenoid valve · Valves | |
| VSNC-FT-B52-D-G14-FN-1A1 | Solenoid valve · Valves | |
| SRBE-CA3-YR90-MW-22A-1W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-1W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-22A-1W-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-N-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-ZU-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-AS-M12-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-P-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-ZU-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-20N-ZC-M12-EX5 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-P-C2-C2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-ZU-C2-C2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-20N-ZC-C2-C2-EX5 | Sensorbox · Cylinder sensors for direct mounting | |
| CMSX-P-S-C-U-F1-S-50-A | Positioner · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-1W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| VOFC-LT-M32C-M-FG14-F19 | Valve · Valves | |
| VOFC-LT-M32C-M-FG14-F19A | Valve · Valves | |
| VOFC-LT-M32C-MC-FGP14-F19 | Valve · Valves | |
| VOFC-LT-M32C-MC-FGP14-F19A | Valve · Valves | |
| VOFC-LT-M32C-M-FG12-F19 | Valve · Valves | |
| VOFC-LT-M32C-M-FG12-F19A | Valve · Valves | |
| VOFC-L-M52-M-FG14-F19 | Valve · Valves | |
| VOFC-L-M52-M-FG14-F19A | Valve · Valves | |
| VOFC-L-B52-FG14-F19 | Valve · Valves | |
| VOFC-L-B52-FG14-F19A | Valve · Valves | |
| VOFD-L50T-M32-MN-FG14-10-F10 | Valve · Valves | |
| VOFD-L50T-M32-MN-FGP14-10-F10 | Valve · Valves | |
| VOFC-LT-M32C-MC-FG13-F19 | Valve · Valves | |
| VOFC-LT-M32C-MC-FG13-F19A | Valve · Valves | |
| VSNC | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-F8-1A1 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-1A1+G | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-3AA1+G | Solenoid valve · Valves | |
| DARQ-R-A-S17-S11-17 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S14-17 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S11-17-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S14-17-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S14-17-P10 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S11-17-P50 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-K-V-F07S17-F04S11-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F07S17-F05S14-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F07S17-F07S14-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-Z-F07S17-F04S11-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-Z-F07S17-F05S14-R13 | Mounting kit · Mounting accessories | |
| DARQ-K-Z-F07S17-F07S14-R13 | Mounting kit · Mounting accessories | |
| DARQ-R-A-S17-S8-17 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S12-17 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S17-S12-17-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-K-V-F07S17-F04S11-R1 | Mounting kit · Mounting accessories | |
| DARQ-K-V-F07S17-F05S14-R1 | Mounting kit · Mounting accessories | |
| DARQ-R-A-S17-S9-17 | Reducing sleeve · Mounting accessories | |
| CMSH-S-VDE1-S-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-S-A-AL-N14-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-A-AL-N14-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-V-SD-AL-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-V-SD-AL-C1N12-HA | Positioner · Cylinder sensors for direct mounting | |
| DARQ-K-V-F07S17-F03S9-R13 | Mounting kit · Mounting accessories | |
| SRBC-CA3-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-N-20N-ZC-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1WG-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-20N-ZC-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-P-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-N-20N-ZC-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| CMSX-P-SE-C-U-F1-S-50-A | Positioner · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-ZU-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-R-2A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-P-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-N-1-ZU-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-R-2A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-A-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-D-C-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| CMSH-S-VDE1-S-A-AL-G14-C1M20-HA-V2 | Positioner · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1WG-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-1-1WG-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA | Positioner · Cylinder sensors for direct mounting | |
| CMSH- | Positioner · Cylinder sensors for direct mounting |
Related Products
View Details
Festo
DSL-16- -270-P-A-S2-B
MFR #DSL-16- -270-P-A-S2-B
SKU #YLS8O1DFLDQOC8L
View Details
Festo
DSL-16- -270-P-A-S20-KF-B
MFR #DSL-16- -270-P-A-S20-KF-B
SKU #YLSTG3XGDLFNV8F
View Details
Festo
DSL-16- -270-P-A-S2-KF-B
MFR #DSL-16- -270-P-A-S2-KF-B
SKU #YLSQQ5PTFWYNWLG
View Details
Festo
DSL-16- -270-CC-A-S20-B
MFR #DSL-16- -270-CC-A-S20-B
SKU #YLSDU3JXV17IHRS
View Details
Festo
DSL-16- -270-CC-A-S2-B
MFR #DSL-16- -270-CC-A-S2-B
SKU #YLSZMIJIJLMBL90
View Details
Festo
DSL-16- -270-CC-A-S20-KF-B
MFR #DSL-16- -270-CC-A-S20-KF-B
SKU #YLSLHL38NKFHUO8
View Details
Festo
DSL-16- -270-CC-A-S2-KF-B
MFR #DSL-16- -270-CC-A-S2-KF-B
SKU #YLSZZWYKQDM0IH
View Details
Festo
DSL-20- -270-P-A-S20-B
MFR #DSL-20- -270-P-A-S20-B
SKU #YLSTMW2XEHMMFUC
View Details
Festo
DSL-20- -270-P-A-S2-B
MFR #DSL-20- -270-P-A-S2-B
SKU #YLSOYJHZ6WDVCCK
Featured Products
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Related Searches
Festo DFPD-N-160-RP-90-RS60-F07-17-R3-C priceFesto DFPD-N-160-RP-90-RS60-F07-17-R3-C quotebuy Festo DFPD-N-160-RP-90-RS60-F07-17-R3-CDFPD-N-160-RP-90-RS60-F07-17-R3-C priceDFPD-N-160-RP-90-RS60-F07-17-R3-C stock availabilityFesto spare partsFesto DFPD-N-160-RP-90-RS60-F07-17-R3-C equivalentFesto DFPD-N-160-RP-90-RS60-F07-17-R3-C specifications
