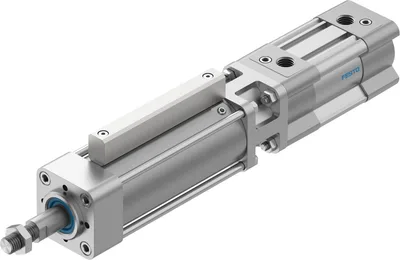

Festo DFLC-40- -
Cylinder with holding brake. Combination of holding brake and standards-based cylinder based on ISO 15552. Holding function: retains the piston rod by clamping with frictional locking. Emergency braking function: stops the movement of the piston rod by clamping with frictional locking. With safety functions. Variants to EU Explosion Protection Directive (ATEX). Optional: high level of corrosion protection. For position sensing
Stroke10, 2000
Piston diameter40 mm
Piston rod threadM12x1.25
Mounting positionAny
Piston-rod endMale thread
DesignPiston, Piston rod, Profile barrel
About This Product
Cylinder with holding brake. Combination of holding brake and standards-based cylinder based on ISO 15552. Holding function: retains the piston rod by clamping with frictional locking. Emergency braking function: stops the movement of the piston rod by clamping with frictional locking. With safety functions. Variants to EU Explosion Protection Directive (ATEX). Optional: high level of corrosion protection. For position sensing
Festo DFLC-40- -
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke10, 2000
Piston diameter40 mm
Piston rod threadM12x1.25
Based on standardISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionAny
Type of clamping with direction of actionAt both ends, Clamping via spring force, released via compressed air
Piston-rod endMale thread
DesignPiston, Piston rod, Profile barrel
Position detectionVia proximity switch
Symbol00995696
VariantsPiston rod at one end
Safety functionHolding and stopping a movement
Performance Level (PL)Stopping, holding, blocking a movement/category 1, Performance Level c
Operating pressure0.06, 0.8
Operating pressure0.6, 8
Operating pressure8.7, 116
Max. permissible test pressure8
Min. release pressure3.8
Mode of operationDouble-acting
ApprovalGerman Technical Control Board (TÜV)
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX), To EC Machinery Directive
UKCA marking (see declaration of conformity)To UK regulations for machines
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Certificate issuing authorityGerman Technical Control Board (TÜV) CA 697
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx h IIC T4 Gb
Explosion ignition protection type for dustEx h IIIC T120°C Db
Explosion ambient temperature-20°C <= Ta <= +60°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Ambient temperature-20, 80
Cushioning length19
Static holding force1350
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke633
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754
Moving mass for 0 mm stroke502
Additional moving mass per 10 mm stroke16
Basic weight for 0 mm stroke2930
Additional weight per 10 mm stroke37
Type of mountingWith female thread, With accessories
Release connection, clamping unitG1/8
Pneumatic connectionG1/4
Note on materialsRoHS compliant
Material coverDie-cast aluminium, Wrought aluminium alloy
Material sealsNBR, TPE-U(PU)
Material housingSteel
Material piston rodHard-chrome-plated steel
Material cylinder barrelSmooth-anodised wrought aluminium alloy
Accessories 343
Genuine accessories that can be used with the Festo DFLC-40- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| CRHNC-40 | Foot mounting · Mounting accessories | |
| VFOE-LE-T-G14-Q8 | One-way flow control valve · Function fittings | |
| FK-M12X1,25 | Self-aligning rod coupler · Mounting accessories | |
| SDBT-MS-20NL-ZN-E-5-LE-EX6 | Proximity sensor · Proximity sensors | |
| QS-G1/4-8 | Push-in fitting · Fittings | |
| SNCB-40-R3 | Swivel flange · Mounting accessories | |
| SG-M12X1,25 | Rod clevis · Mounting accessories | |
| CRSGS-M12X1,25 | Rod eye · Mounting accessories | |
| QSL-G1/4-8 | Push-in L-fitting · Fittings | |
| SDBT-MS-20NL-ZN-E-10-LE-EX6 | Proximity sensor · Proximity sensors | |
| SGS-M12X1,25 | Rod eye · Mounting accessories | |
| CRSNCS-40 | Swivel flange · Mounting accessories | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| CRSG-M12X1,25 | Rod clevis · Mounting accessories | |
| NPQR-DK-G14-Q8 | Push-in fitting · Fittings | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| HNC-40 | Foot mounting · Mounting accessories | |
| NPQR-L-G14-Q8 | Push-in fitting · Fittings | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Proximity sensors | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| SNC-40 | Swivel flange · Mounting accessories | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Proximity sensors | |
| CRGRLA-1/4-B | One-way flow control valve · Function fittings | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Proximity sensors | |
| SNCB-40 | Swivel flange · Mounting accessories | |
| GRLA-1/4-QS-8-D | One-way flow control valve · Function fittings | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Proximity sensors | |
| SNCS-40 | Swivel flange · Mounting accessories | |
| CRFK-M12X1,25 | Self-aligning rod coupler · Function fittings | |
| CRSMT-8M-PS-24V-K-5,0-OE-EX2 | Proximity sensor · Proximity sensors | |
| SNCL-40 | Swivel flange · Mounting accessories | |
| CRSMT-8M-PS-24V-K-0,3-M8D-EX2 | Proximity sensor · Proximity sensors | |
| VFOE-LE-T-G14-Q6 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q10 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8-P50 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q6-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q8-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G14-Q10-F1A | One-way flow control valve · Function fittings | |
| CK-1/4-PK-4 | Quick connector · Quick connectors | |
| CK-1/4-PK-6 | Quick connector · Quick connectors | |
| CK-1/4-PK-9 | Quick connector · Quick connectors | |
| LCK-1/4-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4 | T quick connector · Quick connectors | |
| TCK-1/4-PK-6 | T quick connector · Quick connectors | |
| CK-1/4-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-6-KU | Quick connector · Quick connectors | |
| CK-1/4-PK-9-KU | Quick connector · Quick connectors | |
| LCK-1/4-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/4-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/4-PK-4-KU | T quick connector · Quick connectors | |
| TCK-1/4-PK-6-KU | T quick connector · Quick connectors | |
| SEU-1/4 | Quick exhaust valve · Function fittings | |
| GRU-1/4-B | Flow control/silencer · Function fittings | |
| SE-1/4-B | Quick exhaust valve · Function fittings | |
| LCK-1/4-PK-9 | Elbow quick connector · Quick connectors | |
| CN-1/4-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/4-PK-6 | Barbed fitting · Barbed fittings | |
| TCN-1/4-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/4-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCN-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| KSG-M12X1,25 | Coupling piece · Piston rod attachments | |
| LCNH-1/4-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/4-PK-6 | Barbed elbow fitting · Barbed fittings | |
| QSW-1/4-6 | Push-in fitting · Push-in fittings | |
| QSW-1/4-8 | Push-in fitting · Push-in fittings | |
| QSW-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-6-100 | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-50 | Push-in fitting · Push-in fittings | |
| QS-G1/4-12-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-12-20 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10-50 | Push-in T-fitting · Push-in fittings | |
| QSLL-G1/4-12 | Push-in L-fitting, long · Push-in fittings | |
| QST-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/4-10-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I-50 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I-100 | Push-in fitting · Push-in fittings | |
| QS-1/4-6 | Push-in fitting · Push-in fittings | |
| QS-1/4-8 | Push-in fitting · Push-in fittings | |
| QS-1/4-10 | Push-in fitting · Push-in fittings | |
| QS-1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/4-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-8-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/4-10-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/4-8-B | Multiple distributor · Push-in fittings | |
| QST3-1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| AD-M12X1,25-1/4 | Adapter · Piston rod attachments | |
| AD-M12X1,25-3/8 | Adapter · Piston rod attachments | |
| QSL-V0-1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/4-12 | Push-in T-fitting · Push-in fittings | |
| CRFNG-40 | Flange mounting · Cylinder mountings | |
| CRZNG-40 | Trunnion flange · Cylinder mountings | |
| QS-1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-1/4-12 | Push-in L-fitting · Push-in fittings | |
| FNC-40 | Flange mounting · Cylinder mountings | |
| ZNCF-40 | Trunnion flange · Cylinder mountings | |
| QS-1/4-5/16-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/4-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/4-6 | Push-in fitting · Push-in fittings | |
| QS-G1/4-10 | Push-in fitting · Push-in fittings | |
| QS-G1/4-6-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-8-I | Push-in fitting · Push-in fittings | |
| QS-G1/4-10-I | Push-in fitting · Push-in fittings | |
| QSL-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/4-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/4-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-8-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/4-10-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/4-10 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/4-8 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/4-8 | Multiple distributor · Push-in fittings | |
| QST3-G1/4-8-6 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/4-10 | Multiple distributor · Push-in fittings | |
| QSQ-G1/4-6 | Multiple distributor · Push-in fittings | |
| QSR-G1/4-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/4-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/4-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/4-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/4-10 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/4-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/4-10 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/4-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-8 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-10 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/4-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-8 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/4-12 | Push-in T-fitting · Push-in fittings | |
| QS-G1/4-12 | Push-in fitting · Push-in fittings | |
| QSL-G1/4-12 | Push-in L-fitting · Push-in fittings | |
| QS-1/4-4 | Push-in fitting · Push-in fittings | |
| QS-1/4-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/4-4 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/4-4 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/4-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/4-12 | Push-in T-fitting · Push-in fittings | |
| QSY-1/4-4 | Push-in Y-fitting · Push-in fittings | |
| QS-1/4-1/4-I-U-M | Push-in fitting · Push-in fittings | |
| GRLA-1/4-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-D | One-way flow control valve · Function fittings | |
| HGL-1/4-B | Piloted check valve · Function fittings | |
| HGL-1/4-QS-8 | Piloted check valve · Function fittings | |
| HGL-1/4-QS-10 | Piloted check valve · Function fittings | |
| GRLA-1/4-QS-6-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-8-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/4-QS-10-RS-D | One-way flow control valve · Function fittings | |
| GRLSA-1/4-QS-8 | One-way flow control valve · Function fittings | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VBQF-U-G14-E | Quick exhaust valve · Function fittings | |
| VBQF-U-G14-Q8 | Quick exhaust valve · Function fittings | |
| VBQF-D-G14-E | Quick exhaust valve · Function fittings | |
| SE-1/4 | Quick exhaust valve · Function fittings | |
| SMAT-8M-U-E-0,3-M8D | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VFOH-LE-A-G14-Q8 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G14-Q10 | One-way flow control valve · Function fittings | |
| SDAT-MHS-M50-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M80-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M100-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M125-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M160-1L-SA-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| NPFC-L-2G14-F | Elbow fitting · Other connectors | |
| NPFC-L-R14-G14-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R14-M | Elbow fitting · Other connectors | |
| NPFC-Y-3G14-F | Y-fitting · Other connectors | |
| NPFC-Y-R14-2G14-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G14-F | T-fitting · Other connectors | |
| NPFC-T-R14-2G14-MFF | T-fitting · Other connectors | |
| NPFC-T-2G14-R14-FMF | T-fitting · Other connectors | |
| NPFC-T-3R14-M | T-fitting · Other connectors | |
| NPFC-T-G14-2R14-FMM | T-fitting · Other connectors | |
| NPFC-T-2R14-G14-MMF | T-fitting · Other connectors | |
| NPFC-X-4G14-F | X-fitting · Other connectors | |
| NPFC-X-R14-3G14-MFFF | X-fitting · Other connectors | |
| NPFC-D-G18-G14-M | Double nipple · Other connectors | |
| NPFC-D-2G14-M | Double nipple · Other connectors | |
| NPFC-D-R18-R14-M | Double nipple · Other connectors | |
| NPFC-D-2R14-M | Double nipple · Other connectors | |
| NPFC-S-2G14-F | Sleeve · Other connectors | |
| NPFC-E1-2G14-FM | Extension · Other connectors | |
| NPFC-E2-2G14-FM | Extension · Other connectors | |
| NPFC-E3-2G14-FM | Extension · Other connectors | |
| NPFC-R-G38-G14-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G14-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| NPFC-D-2G14-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G38-G14-F | Reducing sleeve · Other connectors | |
| NPFC-R-G38-G14-MF-P50 | Reducing nipple · Other connectors | |
| NPFC-R-G34-G14-MF | Reducing nipple · Other connectors | |
| NPFC-H-G14-F | Bulkhead fitting · Other connectors | |
| DADG-D-F8-16/20 | Proximity switch · Cylinder sensors for direct mounting | |
| SDAT-MHS-M50-1L-SV-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M80-1L-SV-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M100-1L-SV-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M125-1L-SV-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SDAT-MHS-M160-1L-SV-E-0.3-M8 | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-DS-G14-G14-M | Double nipple · Other connectors | |
| NPFC-DS-G14-G38-M | Double nipple · Other connectors | |
| NPFC-RS-G38-G14-MF | Reducing nipple · Other connectors | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| DARP-M12P-F | Self-aligning rod coupler · Stainless-steel piston-rod attachments | |
| SDBT-MS-20NL-ZN-E-2.5-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-20-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting |
Related Products
View Details
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
View Details
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
View Details
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
View Details
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
View Details
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
View Details
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
View Details
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
View Details
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Featured Products
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Related Searches
Festo DFLC-40- - priceFesto DFLC-40- - quotebuy Festo DFLC-40- -DFLC-40- - priceDFLC-40- - stock availabilityFesto spare partsFesto DFLC-40- - equivalentFesto DFLC-40- - specifications
