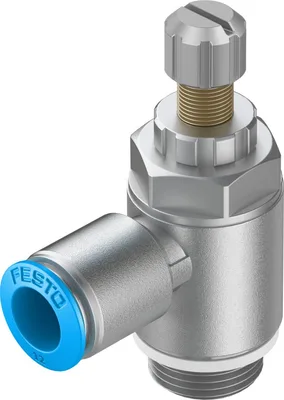

FESTO GRLA-1/4-QS-10-RS-D

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO GRLA-1/4-QS-10-RS-D

One-way flow control valve. Functional combination of one-way flow control valve and piloted check valve. Flow control valve, flow control at one end. Polymer, metal or stainless steel design. Standard, mini, in-line variants with different flow rates. Connections: thread at both ends, push-in connector at both ends, thread/push-in connector

FESTOMFR # GRLA-1/4-QS-10-RS-DSKU # CEY-937FC7820421
Valve functionOne-way flow control function
Pneumatic connection, port 1QS-10
Pneumatic connection, port 2G1/4
Adjustment componentKnurled screw
Type of mountingScrew-in, With male thread
Operating pressure0.2, 10
Share
Have questions?Chat on WhatsApp

About This Product

One-way flow control valve. Functional combination of one-way flow control valve and piloted check valve. Flow control valve, flow control at one end. Polymer, metal or stainless steel design. Standard, mini, in-line variants with different flow rates. Connections: thread at both ends, push-in connector at both ends, thread/push-in connector

FESTO GRLA-1/4-QS-10-RS-D

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Valve functionOne-way flow control function
Pneumatic connection, port 1QS-10
Pneumatic connection, port 2G1/4
Adjustment componentKnurled screw
Type of mountingScrew-in, With male thread
Standard nominal flow rate in flow control direction480
Standard nominal flow rate in blocked direction345, 500
Operating pressure0.2, 10
Ambient temperature-10, 60
Maritime classificationSee certificate
Mounting positionAny
Symbol00991452
Operating pressure complete temperature range0.2, 10
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)760
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)630, 790
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Storage temperature-10, 40
Media temperature-10, 60
Nominal torque5
Product weight50
Note on materialsRoHS compliant
Material sealsNBR
Material hollow boltWrought aluminium alloy, anodised
Material release ringPOM
Material knurled headWrought aluminium alloy, anodised
Material adjusting screwHigh-alloy stainless steel
Material swivel fittingDie-cast zinc

Accessories 88

Genuine accessories that can be used with the FESTO GRLA-1/4-QS-10-RS-D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PUN-H-10X1,5-SWPlastic tubing · Tubes
PUN-H-10X1,5-TBL Plastic tubing · Tubes
PUN-H-10X1,5-NTPlastic tubing · Tubes
PUN-H-10X1,5-BL Plastic tubing · Tubes
PUN-CM-10-SWPlastic tubing · Tubing
PAN-V0-10X1,25-BLPlastic tubing · Tubing
PUN-10X1,5-SIPlastic tubing · Tubing
PAN-10X1,5-SIPlastic tubing · Tubing
PUN-10X1,5-BLPlastic tubing · Tubing
PUN-10X1,5-SWPlastic tubing · Tubing
PAN-V0-10X1,25-SWPlastic tubing · Tubing
PUN-10X1,5-RTPlastic tubing · Tubing
PUN-10X1,5-GEPlastic tubing · Tubing
PUN-10X1,5-GNPlastic tubing · Tubing
PLN-10X1,5-NTPlastic tubing · Tubing
PLN-10X1,5-SWPlastic tubing · Tubing
PFAN-10X1,5-NTPlastic tubing · Tubing
PUN-V0-10X1,5-SWPlastic tubing · Tubing
PUN-V0-10X1,5-BLPlastic tubing · Tubing
PUN-V0-10X1,5-GNPlastic tubing · Tubing
PUN-V0-10X1,5-RTPlastic tubing · Tubing
PUN-V0-10X1,5-WSPlastic tubing · Tubing
PUN-V0-10X1,5-GEPlastic tubing · Tubing
PUN-V0-10X1,5-BRPlastic tubing · Tubing
PAN-V0-10X1,25-GNPlastic tubing · Tubing
PAN-V0-10X1,25-RTPlastic tubing · Tubing
PAN-V0-10X1,25-WSPlastic tubing · Tubing
PAN-V0-10X1,25-GEPlastic tubing · Tubing
PUN-10X1,5-SI-300Plastic tubing · Tubing
PUN-10X1,5-BL-300Plastic tubing · Tubing
PAN-R-10X1,9-SIHeavy-duty tubing · Tubing
PEN-10X1,5-SWPlastic tubing · Tubing
PEN-10X1,5-NTPlastic tubing · Tubing
PAN-10X1,5-NTPlastic tubing · Tubing
PEN-10X1,5-SW-300Plastic tubing · Tubing
PEN-10X1,5-BL-300Plastic tubing · Tubing
PEN-10X1,5-SI-300Plastic tubing · Tubing
PEN-10X1,5-BLPlastic tubing · Tubing
PEN-10X1,5-SIPlastic tubing · Tubing
PEN-10X1,5-GNPlastic tubing · Tubing
PEN-10X1,5-RTPlastic tubing · Tubing
PEN-10X1,5-GEPlastic tubing · Tubing
PAN-10X1,5-SI-300Plastic tubing · Tubing
PAN-10X1,5-BL-300Plastic tubing · Tubing
PAN-10X1,5-SW-300Plastic tubing · Tubing
PAN-10X1,5-BLPlastic tubing · Tubing
PAN-10X1,5-SWPlastic tubing · Tubing
PAN-10X1,5-GNPlastic tubing · Tubing
PAN-10X1,5-RTPlastic tubing · Tubing
PAN-10X1,5-GEPlastic tubing · Tubing
PUN-10X1,5-SW-300Plastic tubing · Tubing
PLN-10X1,5-BLPlastic tubing · Tubing
PLN-10X1,5-SIPlastic tubing · Tubing
PLN-10X1,5-RTPlastic tubing · Tubing
PUN-H-10X1,5-SW-300Plastic tubing · Tubing
PUN-H-10X1,5-BL-300Plastic tubing · Tubing
PUN-H-10X1,5-NT-300Plastic tubing · Tubing
PUN-H-10X1,5-SI-300Plastic tubing · Tubing
PUN-H-10X1,5-SIPlastic tubing · Tubing
PUN-H-10X1,5-RTPlastic tubing · Tubing
PUN-H-10X1,5-GNPlastic tubing · Tubing
PUN-H-10X1,5-GEPlastic tubing · Tubing
PUN-V0-10X2-SW-CPlastic tubing · Tubing
PUN-V0-10X2-BL-CPlastic tubing · Tubing
PUN-V0-10X2-GN-CPlastic tubing · Tubing
PUN-V0-10X2-RT-CPlastic tubing · Tubing
PUN-V0-10X2-WS-CPlastic tubing · Tubing
PUN-V0-10X2-GE-CPlastic tubing · Tubing
PUN-V0-10X2-BR-CPlastic tubing · Tubing
PAN-MF-10X1,25-SWPlastic tubing · Tubing
PUN-H-10X1,5-TBL-300Plastic tubing · Tubing
PUN-H-10X1,5-TSWPlastic tubing · Tubing
PUN-H-10X1,5-TSW-300Plastic tubing · Tubing
PUN-H-10X1,5-TRTPlastic tubing · Tubing
PUN-H-10X1,5-TRT-300Plastic tubing · Tubing
PUN-H-10X1,5-TGNPlastic tubing · Tubing
PUN-H-10X1,5-TGN-300Plastic tubing · Tubing
PUN-H-10X1,5-TGEPlastic tubing · Tubing
PUN-H-10X1,5-TGE-300Plastic tubing · Tubing
PTFEN-10X1,5-NTPlastic tubing · Tubing
PTFEN-10X1,5-NT-300Plastic tubing · Tubing
PUN-H-F-10X1,5-RTPlastic tubing · Tubing
PUN-H-F-10X1,5-BLPlastic tubing · Tubing
PUN-H-F-10X1,5-TBLPlastic tubing · Tubing
PUN-H-F-10X1,5-GNPlastic tubing · Tubing
PUN-H-F-10X1,5-GEPlastic tubing · Tubing
PUN-H-F-10X1,5-SWPlastic tubing · Tubing
PUN-H-F-10X1,5-NTPlastic tubing · Tubing
