How can I get a price quote for Festo QSL-V0-1/4-8?

You can request a fast quote for Festo QSL-V0-1/4-8 from Yılsa Engineering. Reference part number YLSEEIIQ50NVKDQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo QSL-V0-1/4-8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo QSL-V0-1/4-8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo QSL-V0-1/4-8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

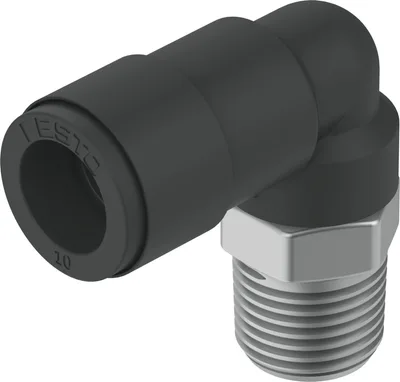

Festo QSL-V0-1/4-8

Push-in L-fitting. PBT, reinforced. Resistant to welding spatter. For use in all areas where there is a risk of fire. Reliable even for applications in close proximity to welding spatter. Operating medium: compressed air, vacuum, water. Straight design, L-shaped, T-shaped

FestoMFR # QSL-V0-1/4-8SKU # YLSEEIIQ50NVKDQ

SizeStandard

Nominal size6.7

Type of seal on screwed plugCoating

DesignL-shape

Size of pack10

DesignPush-pull principle

Have questions?Chat on WhatsApp

About This Product

Festo QSL-V0-1/4-8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size6.7

Fire test materialUL94 V-0 (housing), UL94 V-0 (releasing ring)

Type of seal on screwed plugCoating

DesignL-shape

Size of pack10

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature0, 60

Product weight21

Type of mountingExternal hex SW14

Pneumatic connection, port 1Male thread R1/4

Pneumatic connection, port 2For tubing outside diameter of 8 mm

Colour of release ringBlack

Material screwed plugNickel-plated brass

Note on materialsRoHS compliant

Material housingPBT

Material release ringPBT

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel, Brass

Accessories 31

Genuine accessories that can be used with the Festo QSL-V0-1/4-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PAN-V0-8X1-BL	Plastic tubing · Tubing
PUN-8X1,25-SI	Plastic tubing · Tubing
PUN-8X1,25-DUO-SI	DUO tubing · Tubing
QSO	Release tool · General accessories
PUN-8X1,25-BL	Plastic tubing · Tubing
PUN-8X1,25-SW	Plastic tubing · Tubing
PUN-8X1,25-DUO-BS	DUO tubing · Tubing
PAN-V0-8X1-SW	Plastic tubing · Tubing
PUN-8X1,25-RT	Plastic tubing · Tubing
PUN-8X1,25-GE	Plastic tubing · Tubing
PUN-8X1,25-GN	Plastic tubing · Tubing
PUN-8X1,25-S-1-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-2-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-6-BL	Spiral plastic tubing · Tubing
PUN-8X1,25-S-1-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-2-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-6-SW	Spiral plastic tubing · Tubing
PUN-8X1,25-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-8X1,25-S-2-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-8X1,25-S-6-DUO-BS	DUO spiral plastic tubing · Tubing
PAN-V0-8X1-GN	Plastic tubing · Tubing
PAN-V0-8X1-RT	Plastic tubing · Tubing
PAN-V0-8X1-WS	Plastic tubing · Tubing
PAN-V0-8X1-GE	Plastic tubing · Tubing
PUN-8X1,25-SI-400	Plastic tubing · Tubing
PUN-8X1,25-BL-400	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PAN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PUN-8X1,25-SW-400	Plastic tubing · Tubing
