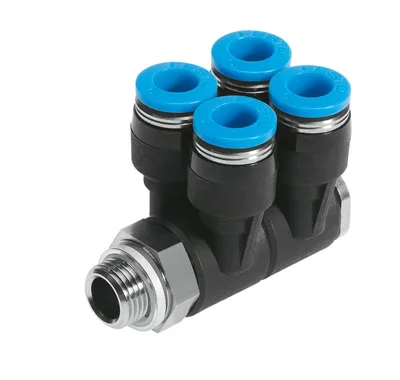

FESTO QSLV4-G1/4-8
Multiple distributor. PBT and nickel-plated brass. Rotatable 360°. Reducing design. Operating media: compressed air, vacuum, (water). Straight design, L-shaped, T-shaped
SizeStandard
Nominal size4.1
Tubing insertion depth18.1
Type of seal on screwed plugSealing ring
Mounting positionAny
DesignPush-pull principle
About This Product
Multiple distributor. PBT and nickel-plated brass. Rotatable 360°. Reducing design. Operating media: compressed air, vacuum, (water). Straight design, L-shaped, T-shaped
FESTO QSLV4-G1/4-8
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SizeStandard
Nominal size4.1
Tubing insertion depth18.1
Type of seal on screwed plugSealing ring
Mounting positionAny
DesignPush-pull principle
Size of pack1
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible, Water: G-thread only possible with sealing ring type OL as additional accessory
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 80
Nominal torque9
Tolerance for nominal tightening torque±20%
Product weight54
Number of outputs4
Number of supply lines1
Pneumatic connection, port 1Male thread G1/4
Pneumatic connection, port 2For tubing outside diameter of 8 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingPBT
Material hollow boltBrass, nickel-plated
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Accessories 75
Genuine accessories that can be used with the FESTO QSLV4-G1/4-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PM-6 | Plastic-coated metal tube · Connection accessories | |
| PUN-8X1,25-SI | Plastic tubing · Tubing | |
| PAN-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-8X1,25-DUO-SI | DUO tubing · Tubing | |
| QSO | Release tool · General accessories | |
| PUN-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-DUO-BS | DUO tubing · Tubing | |
| PUN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-DUO | DUO tubing · Tubing | |
| PUN-8X1,25-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-BL | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-SW | Spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-2-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-8X1,25-S-6-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-SW | Plastic tubing · Tubing | |
| PEN-8X1,25-NT | Plastic tubing · Tubing | |
| PAN-8X1,25-NT | Plastic tubing · Tubing | |
| PEN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL | Plastic tubing · Tubing | |
| PEN-8X1,25-SI | Plastic tubing · Tubing | |
| PEN-8X1,25-GN | Plastic tubing · Tubing | |
| PEN-8X1,25-RT | Plastic tubing · Tubing | |
| PEN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN | Plastic tubing · Tubing | |
| PAN | Plastic tubing · Tubing | |
| PEN | Plastic tubing · Tubing | |
| PLN | Plastic tubing · Tubing | |
| PAN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL | Plastic tubing · Tubing | |
| PAN-8X1,25-SW | Plastic tubing · Tubing | |
| PAN-8X1,25-GN | Plastic tubing · Tubing | |
| PAN-8X1,25-RT | Plastic tubing · Tubing | |
| PAN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-H-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE-400 | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-NT | Plastic tubing · Tubing |
