How can I get a price quote for FESTO PUN-H-8X1,25-NT?

You can request a fast quote for FESTO PUN-H-8X1,25-NT from Yılsa Engineering. Reference part number CEY-937FC78214BE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO PUN-H-8X1,25-NT in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO PUN-H-8X1,25-NT genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO PUN-H-8X1,25-NT?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

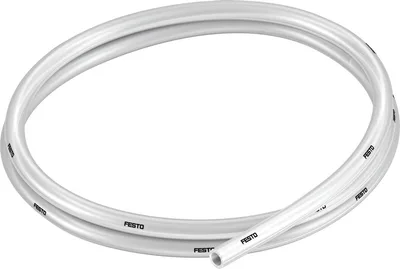

FESTO PUN-H-8X1,25-NT

Plastic tubing. Polyurethane. High resistance to microbes and hydrolysis. Suitable for use with energy chains. Clean room-compatible combination with fitting NPKA. Also available as DUO plastic tubing. Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/PUN_H

FESTOMFR # PUN-H-8X1,25-NTSKU # CEY-937FC78214BE

Outside diameter8

Flow-relevant bending radius37

Inside diameter5.7

Min. bending radius21

Instructions on useTPE-U, ether-based

Tubing characteristicsSuitable for energy chains

Have questions?Chat on WhatsApp

About This Product

FESTO PUN-H-8X1,25-NT

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Outside diameter8

Flow-relevant bending radius37

Inside diameter5.7

Min. bending radius21

Instructions on useTPE-U, ether-based

Tubing characteristicsSuitable for energy chains

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

Note on operating pressureWater: temperature-dependent operating pressure, see diagram, max. 0.3 MPa at 0–60 °C

ApprovalGerman Technical Control Board (TÜV)

Certificate issuing authorityB 013277 0527 00

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Fire test materialUL94 HB

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Suitable for use with foodSee supplementary material information

Ambient temperature-35, 60

Product weight according to length0.0287

Pneumatic connectionFor push-in connector O.D. 8 mm, For push-in connector outside diameter of 5/16", For barbed fitting inside diameter of 6 mm with union nut

ColourNatural

Shore hardnessD 52 +/-3

Note on materialsRoHS compliant

Material tubingTPE-U(PU)

Accessories 14

Genuine accessories that can be used with the FESTO PUN-H-8X1,25-NT motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KK-6	Multi-tube holder · Mounting accessories
PKB-50-BL	Spiral wrap for tubing · General accessories
ZRS	Pipe and tubing cutter · General accessories
VFOE-LE-T-G14-Q8	One-way flow control valve · Function fittings
QS-G1/4-8	Push-in fitting · Fittings
QS-G1/4-8-I	Push-in fitting · Fittings
QSL-G1/4-8	Push-in L-fitting · Fittings
NPQM-D-G14-Q8-P10	Push-in fitting · Fittings
NPQM-L-G14-Q8-P10	Push-in L-fitting · Fittings
VFOE-LS-T-G18-Q8	One-way flow control valve · Function fittings
QS-1/4-8	Push-in fitting · Fittings
QS-1/4-8-I	Push-in fitting · Fittings
QSL-1/4-8	Push-in L-fitting · Fittings
PKS-6	Tubing support · General accessories
