How can I get a price quote for FESTO QSLV-G1/4-10?

You can request a fast quote for FESTO QSLV-G1/4-10 from Yılsa Engineering. Reference part number CEY-937FC78230D9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO QSLV-G1/4-10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO QSLV-G1/4-10 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO QSLV-G1/4-10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

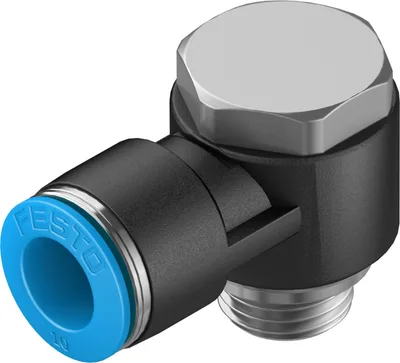

FESTO QSLV-G1/4-10

Push-in L-fitting. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing

FESTOMFR # QSLV-G1/4-10SKU # CEY-937FC78230D9

SizeStandard

Nominal size7

Tubing insertion depth20.2

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignL-shape

Have questions?Chat on WhatsApp

About This Product

FESTO QSLV-G1/4-10

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size7

Tubing insertion depth20.2

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignL-shape

Size of pack10

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 0.6

Operating pressure complete temperature range-0.95, 6

Operating pressure complete temperature range-13.775, 87

Temperature-dependent operating pressure-0.095, 1.4

Temperature-dependent operating pressure-0.95, 14

Temperature-dependent operating pressure-13.775, 203

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible, Water: G-thread only possible with sealing ring type OL as additional accessory

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Ambient temperature-10, 80

Nominal torque9

Tolerance for nominal tightening torque±20%

Product weight48

Type of mountingHollow bolt with external hex

Pneumatic connection, port 1Male thread G1/4

Pneumatic connection, port 2For tubing outside diameter of 10 mm

Colour of release ringBlue

Note on materialsRoHS compliant

Material housingPBT

Material hollow boltBrass, nickel-plated

Material release ringPOM

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel

Accessories 84

Genuine accessories that can be used with the FESTO QSLV-G1/4-10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSO	Release tool · General accessories
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-10X1,5-SW	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
PUN-10X1,5-SG-4,8-BL-1/4	Spiral plastic tubing · Tubing
PUN-10X1,5-SG-6-BL-1/4	Spiral plastic tubing · Tubing
PUN-10X1,5-SG-2,4-BL-1/4	Spiral plastic tubing · Tubing
PUN-10X1,5-SI	Plastic tubing · Tubing
PAN-10X1,5-SI	Plastic tubing · Tubing
PUN-10X1,5-DUO-SI	DUO tubing · Tubing
PUN-10X1,5-BL	Plastic tubing · Tubing
PUN-10X1,5-SW	Plastic tubing · Tubing
PUN-10X1,5-DUO-BS	DUO tubing · Tubing
PUN-10X1,5-RT	Plastic tubing · Tubing
PUN-10X1,5-GE	Plastic tubing · Tubing
PUN-10X1,5-GN	Plastic tubing · Tubing
PUN-10X1,5-S-1-BL	Spiral plastic tubing · Tubing
PUN-10X1,5-S-2-BL	Spiral plastic tubing · Tubing
PUN-10X1,5-S-6-BL	Spiral plastic tubing · Tubing
PUN-10X1,5-S-1-SW	Spiral plastic tubing · Tubing
PUN-10X1,5-S-2-SW	Spiral plastic tubing · Tubing
PUN-10X1,5-S-6-SW	Spiral plastic tubing · Tubing
PUN-10X1,5-S-1-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-10X1,5-S-2-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-10X1,5-S-6-DUO-BS	DUO spiral plastic tubing · Tubing
PUN-10X1,5-SI-300	Plastic tubing · Tubing
PUN-10X1,5-BL-300	Plastic tubing · Tubing
PEN-10X1,5-SW	Plastic tubing · Tubing
PEN-10X1,5-NT	Plastic tubing · Tubing
PAN-10X1,5-NT	Plastic tubing · Tubing
PEN-10X1,5-SW-300	Plastic tubing · Tubing
PEN-10X1,5-BL-300	Plastic tubing · Tubing
PEN-10X1,5-SI-300	Plastic tubing · Tubing
PEN-10X1,5-BL	Plastic tubing · Tubing
PEN-10X1,5-SI	Plastic tubing · Tubing
PEN-10X1,5-GN	Plastic tubing · Tubing
PEN-10X1,5-RT	Plastic tubing · Tubing
PEN-10X1,5-GE	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PAN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PAN-10X1,5-SI-300	Plastic tubing · Tubing
PAN-10X1,5-BL-300	Plastic tubing · Tubing
PAN-10X1,5-SW-300	Plastic tubing · Tubing
PAN-10X1,5-BL	Plastic tubing · Tubing
PAN-10X1,5-SW	Plastic tubing · Tubing
PAN-10X1,5-GN	Plastic tubing · Tubing
PAN-10X1,5-RT	Plastic tubing · Tubing
PAN-10X1,5-GE	Plastic tubing · Tubing
PUN-10X1,5-SW-300	Plastic tubing · Tubing
PUN-H-10X1,5-SW-300	Plastic tubing · Tubing
PUN-H-10X1,5-BL-300	Plastic tubing · Tubing
PUN-H-10X1,5-NT-300	Plastic tubing · Tubing
PUN-H-10X1,5-SI-300	Plastic tubing · Tubing
PUN-H-10X1,5-SI	Plastic tubing · Tubing
PUN-H-10X1,5-RT	Plastic tubing · Tubing
PUN-H-10X1,5-GN	Plastic tubing · Tubing
PUN-H-10X1,5-GE	Plastic tubing · Tubing
PUN-H-10X1,5-TBL-300	Plastic tubing · Tubing
PUN-H-10X1,5-TSW	Plastic tubing · Tubing
PUN-H-10X1,5-TSW-300	Plastic tubing · Tubing
PUN-H-10X1,5-TRT	Plastic tubing · Tubing
PUN-H-10X1,5-TRT-300	Plastic tubing · Tubing
PUN-H-10X1,5-TGN	Plastic tubing · Tubing
PUN-H-10X1,5-TGN-300	Plastic tubing · Tubing
PUN-H-10X1,5-TGE	Plastic tubing · Tubing
PUN-H-10X1,5-TGE-300	Plastic tubing · Tubing
PTFEN-10X1,5-NT	Plastic tubing · Tubing
PTFEN-10X1,5-NT-300	Plastic tubing · Tubing
PUN-H-F-10X1,5-RT	Plastic tubing · Tubing
PUN-H-F-10X1,5-BL	Plastic tubing · Tubing
PUN-H-F-10X1,5-TBL	Plastic tubing · Tubing
PUN-H-F-10X1,5-GN	Plastic tubing · Tubing
PUN-H-F-10X1,5-GE	Plastic tubing · Tubing
PUN-H-F-10X1,5-SW	Plastic tubing · Tubing
PUN-H-F-10X1,5-NT	Plastic tubing · Tubing
PUN-H-SF-10X2-BL	Plastic tubing · Tubing
PUN-H-SF-10X2-SW	Plastic tubing · Tubing
PUN-H-10X1,5-BL-25	Plastic tubing · Tubing
PUN-H-10X1,5-SW-25	Plastic tubing · Tubing
PUN-H-10X1,5-RT-25	Plastic tubing · Tubing
PUN-H-10X1,5-TBL-25	Plastic tubing · Tubing
