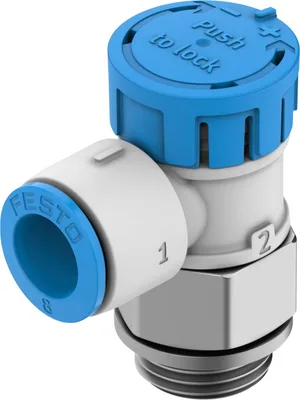

Festo VFOE-LE-T-G14-Q8-F1A
One-way flow control valve. Low-cost solution for standard applications. Simple and reliable adjustment of pneumatic cylinder speed. Extremely easy assembly. Fast commissioning. Compact dimensions. Sustainable in production thanks to the use of alternative materials
Pneumatic connection, port 1QS-8
Pneumatic connection, port 2G1/4
Type of actuationManual
Adjustment componentRotary knob with latch
Type of mountingScrew-in
Ambient temperature-10, 60
About This Product
One-way flow control valve. Low-cost solution for standard applications. Simple and reliable adjustment of pneumatic cylinder speed. Extremely easy assembly. Fast commissioning. Compact dimensions. Sustainable in production thanks to the use of alternative materials
Festo VFOE-LE-T-G14-Q8-F1A
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve functionExhaust air one-way flow control function
Pneumatic connection, port 1QS-8
Pneumatic connection, port 2G1/4
Type of actuationManual
Adjustment componentRotary knob with latch
Type of mountingScrew-in
Standard nominal flow rate in flow control direction500
Standard nominal flow rate in blocked direction370, 500
Ambient temperature-10, 60
Material housingPBT
Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Mounting positionAny
Symbol00991452
Width across flats16
Rotatability360°/no continuous swivelling permissible
VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug
Operating pressure complete temperature range0.02, 1
Operating pressure complete temperature range0.2, 10
Operating pressure complete temperature range2.9, 145
Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)810
Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)750, 900
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Media temperature-10, 60
Max. tightening torque12
Nominal torque10
Tolerance for nominal tightening torque±20%
Product weight16
Note on materialsRoHS compliant
Material coverPBT
Material dynamic sealsHNBR
Material threaded boltSteel, chemically nickel-plated
Material release ringPBT
Material static sealsNBR
Accessories 104
Genuine accessories that can be used with the Festo VFOE-LE-T-G14-Q8-F1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PAN-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-8X1,25-SW | Plastic tubing · Tubing | |
| PAN-V0-8X1-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-GN | Plastic tubing · Tubing | |
| PLN-8X1,25-NT | Plastic tubing · Tubing | |
| PLN-8X1,25-SW | Plastic tubing · Tubing | |
| PFAN-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-CM-8-SW | Plastic tubing · Tubing | |
| PAN-V0-8X1-BL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGN-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TSW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TRT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TGE-400 | Plastic tubing · Tubing | |
| PTFEN-8X1-NT-400 | Plastic tubing · Tubing | |
| PTFEN-8X1-NT | Plastic tubing · Tubing | |
| PUN-H-SF-8X1,55-SW | Plastic tubing · Tubing | |
| PUN-H-SF-8X1,55-BL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-NT | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-F-8X1,25-TBL | Plastic tubing · Tubing | |
| PUN-H-8X1,25-RT-25 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-TBL-25 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW-25 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL-25 | Plastic tubing · Tubing | |
| PEN-8X1,25-SW | Plastic tubing · Tubing | |
| PEN-8X1,25-NT | Plastic tubing · Tubing | |
| PAN-8X1,25-NT | Plastic tubing · Tubing | |
| PEN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PEN-8X1,25-BL | Plastic tubing · Tubing | |
| PEN-8X1,25-SI | Plastic tubing · Tubing | |
| PEN-8X1,25-GN | Plastic tubing · Tubing | |
| PEN-8X1,25-RT | Plastic tubing · Tubing | |
| PEN-8X1,25-GE | Plastic tubing · Tubing | |
| PAN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PAN-8X1,25-BL | Plastic tubing · Tubing | |
| PAN-8X1,25-SW | Plastic tubing · Tubing | |
| PAN-8X1,25-GN | Plastic tubing · Tubing | |
| PAN-8X1,25-RT | Plastic tubing · Tubing | |
| PAN-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SW-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-NT-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-H-8X1,25-SI | Plastic tubing · Tubing | |
| PUN-H-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GN | Plastic tubing · Tubing | |
| PLN-8X1,25-BL | Plastic tubing · Tubing | |
| PLN-8X1,25-SI | Plastic tubing · Tubing | |
| PLN-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-H-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-V0-8X2-BL-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-GN-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-RT-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-WS-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-GE-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-BR-C | Plastic tubing · Tubing | |
| PUN-V0-8X2-SW-C | Plastic tubing · Tubing | |
| PAN-MF-8X1-SW | Plastic tubing · Tubing | |
| PUN-8X1,25-SI-400 | Plastic tubing · Tubing | |
| PUN-8X1,25-BL-400 | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-BL | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-GN | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-RT | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-WS | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-GE | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-BR | Plastic tubing · Tubing | |
| PAN-V0-8X1-GN | Plastic tubing · Tubing | |
| PAN-V0-8X1-RT | Plastic tubing · Tubing | |
| PAN-V0-8X1-WS | Plastic tubing · Tubing | |
| PAN-V0-8X1-GE | Plastic tubing · Tubing | |
| PUN-V0-8X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-5/16-NT-500-HA | Plastic tubing · Tubing | |
| PUN-H-5/16-BL-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/16-SW-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/16-NT-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/16-BR-150-CB | Plastic tubing · Tubing | |
| PUN-H-5/16-SI-500-HA | Plastic tubing · Tubing | |
| PUN-H-5/16-BL-1000-HA | Plastic tubing · Tubing | |
| PUN-H-5/16-SW-1000-HA | Plastic tubing · Tubing | |
| PEN-5/16-SW-150-CB | Plastic tubing · Tubing | |
| PEN-5/16-BL-150-CB | Plastic tubing · Tubing | |
| PLN-5/16-NT-150-CB | Plastic tubing · Tubing |
