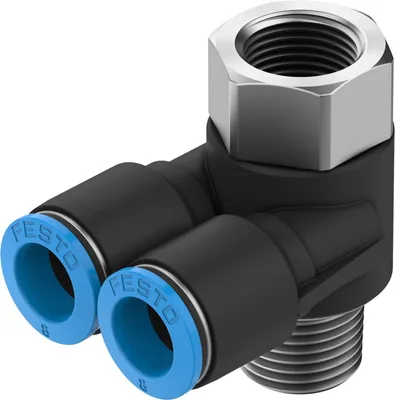

FESTO QSYTF-1/4-8-B

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO QSYTF-1/4-8-B

Multiple distributor. PBT and nickel-plated brass. Rotatable 360°. Operating media: compressed air, vacuum, (water). Y-shape

FESTOMFR # QSYTF-1/4-8-BSKU # CEY-937FC7825C35
SizeStandard
Nominal size6
Tubing insertion depth18.1
Type of seal on screwed plugCoating
Mounting positionAny
DesignPush-pull principle
Share
Have questions?Chat on WhatsApp

About This Product

Multiple distributor. PBT and nickel-plated brass. Rotatable 360°. Operating media: compressed air, vacuum, (water). Y-shape

FESTO QSYTF-1/4-8-B

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size6
Tubing insertion depth18.1
Type of seal on screwed plugCoating
Mounting positionAny
DesignPush-pull principle
Size of pack1
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 80
Nominal torque9
Tolerance for nominal tightening torque±20%
Product weight44
Number of outputs3
Number of supply lines1
Pneumatic connection, port 1Male thread R1/4
Pneumatic connection, port 2Female thread G1/4, For tubing outside diameter of 8 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingPBT
Material hollow boltBrass, nickel-plated
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

Accessories 75

Genuine accessories that can be used with the FESTO QSYTF-1/4-8-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PM-6Plastic-coated metal tube · Connection accessories
PUN-8X1,25-SIPlastic tubing · Tubing
PAN-8X1,25-SIPlastic tubing · Tubing
PUN-8X1,25-DUO-SIDUO tubing · Tubing
QSORelease tool · General accessories
PUN-8X1,25-BLPlastic tubing · Tubing
PUN-8X1,25-SWPlastic tubing · Tubing
PUN-8X1,25-DUO-BSDUO tubing · Tubing
PUN-8X1,25-RTPlastic tubing · Tubing
PUN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-GNPlastic tubing · Tubing
PUN-H-8X1,25-NTPlastic tubing · Tubing
PUN-H-8X1,25-BLPlastic tubing · Tubing
PUN-H-8X1,25-SWPlastic tubing · Tubing
PUN-H-8X1,25-DUODUO tubing · Tubing
PUN-8X1,25-S-1-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-2-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-6-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-1-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-2-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-6-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-S-6-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-SI-400Plastic tubing · Tubing
PUN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SWPlastic tubing · Tubing
PEN-8X1,25-NTPlastic tubing · Tubing
PAN-8X1,25-NTPlastic tubing · Tubing
PEN-8X1,25-SW-400Plastic tubing · Tubing
PEN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SI-400Plastic tubing · Tubing
PEN-8X1,25-BLPlastic tubing · Tubing
PEN-8X1,25-SIPlastic tubing · Tubing
PEN-8X1,25-GNPlastic tubing · Tubing
PEN-8X1,25-RTPlastic tubing · Tubing
PEN-8X1,25-GEPlastic tubing · Tubing
PUNPlastic tubing · Tubing
PANPlastic tubing · Tubing
PENPlastic tubing · Tubing
PLNPlastic tubing · Tubing
PAN-8X1,25-SI-400Plastic tubing · Tubing
PAN-8X1,25-BL-400Plastic tubing · Tubing
PAN-8X1,25-SW-400Plastic tubing · Tubing
PAN-8X1,25-BLPlastic tubing · Tubing
PAN-8X1,25-SWPlastic tubing · Tubing
PAN-8X1,25-GNPlastic tubing · Tubing
PAN-8X1,25-RTPlastic tubing · Tubing
PAN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-SW-400Plastic tubing · Tubing
PUN-H-8X1,25-SW-400Plastic tubing · Tubing
PUN-H-8X1,25-BL-400Plastic tubing · Tubing
PUN-H-8X1,25-NT-400Plastic tubing · Tubing
PUN-H-8X1,25-SI-400Plastic tubing · Tubing
PUN-H-8X1,25-SIPlastic tubing · Tubing
PUN-H-8X1,25-RTPlastic tubing · Tubing
PUN-H-8X1,25-GNPlastic tubing · Tubing
PUN-H-8X1,25-GEPlastic tubing · Tubing
PUN-H-8X1,25-TBLPlastic tubing · Tubing
PUN-H-8X1,25-TBL-400Plastic tubing · Tubing
PUN-H-8X1,25-TSWPlastic tubing · Tubing
PUN-H-8X1,25-TSW-400Plastic tubing · Tubing
PUN-H-8X1,25-TRTPlastic tubing · Tubing
PUN-H-8X1,25-TRT-400Plastic tubing · Tubing
PUN-H-8X1,25-TGNPlastic tubing · Tubing
PUN-H-8X1,25-TGN-400Plastic tubing · Tubing
PUN-H-8X1,25-TGEPlastic tubing · Tubing
PUN-H-8X1,25-TGE-400Plastic tubing · Tubing
PUN-H-F-8X1,25-RTPlastic tubing · Tubing
PUN-H-F-8X1,25-BLPlastic tubing · Tubing
PUN-H-F-8X1,25-TBLPlastic tubing · Tubing
PUN-H-F-8X1,25-GNPlastic tubing · Tubing
PUN-H-F-8X1,25-GEPlastic tubing · Tubing
PUN-H-F-8X1,25-SWPlastic tubing · Tubing
PUN-H-F-8X1,25-NTPlastic tubing · Tubing
