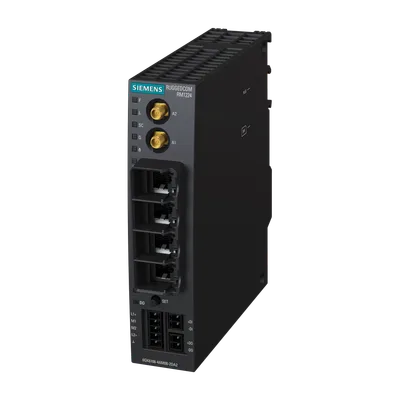

Siemens 6GK6108-4AM00-2DA2
RUGGEDCOM RM1224-NAM 4G ROUTER için kablosuz IP-communication from Ethernet based devices via LTE(4G)- mobile radio, optimize için use in North America, VPN, firewall, NAT 4-port anahtar 2x SMA antenna Connectors, MIMO technology 1xdig. giriş, 1xdig. çıkış Please note national approvals!
product brand nameRUGGEDCOM
transfer rate / for Industrial Ethernet10, 100 Mbit/s
for internal network4
for external network2
for power supply2
for external networkSMA antenna socket (50 ohms)
Ürün Hakkında
RUGGEDCOM RM1224-NAM 4G ROUTER için kablosuz IP-communication from Ethernet based devices via LTE(4G)- mobile radio, optimize için use in North America, VPN, firewall, NAT 4-port anahtar 2x SMA antenna Connectors, MIMO technology 1xdig. giriş, 1xdig. çıkış Please note national approvals!
Siemens 6GK6108-4AM00-2DA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameRUGGEDCOM
transfer rate
transfer rate / for Industrial Ethernet10, 100 Mbit/s
for GPRS transmission / with downlink / maximum85,6 kbit/s
for GPRS transmission / with uplink / maximum85,6 kbit/s
with eGPRS transmission / with downlink / maximum236,8 kbit/s
with eGPRS transmission / with uplink / maximum236,8 kbit/s
with UMTS transmission / with downlink / maximum14,4 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum100 Mbit/s
for LTE transmission / with uplink / maximum50 Mbit/s
interfaces
for internal network4
for external network2
for power supply2
for internal networkRJ45 port (10/100 Mbit/s, TP, autocrossover)
for external networkSMA antenna socket (50 ohms)
for power supplyTerminal strip
WAN connection
type of wireless network / is supportedLTE, UMTS, GSM
type of mobile wireless service / is supportedGPRS, eGPRS, HSPA+
operating frequency / for GSM transmission850 MHz, 900 MHz, 1800 MHz, 1900 MHz
operating frequency / with UMTS transmission850 MHz, AWS-1 (1700/2100) MHz, 1900 MHz
operating frequency / for LTE transmission700 MHz, 850 MHz, AWS-1 (1700/2100) MHz, 1900 MHz
supply voltage, current consumption, power loss
supply voltage / rated value10,8... 28,8
at rated supply voltage / maximum330 mA
maximum8 W
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
ambient conditions
during operation-40... +75 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP20

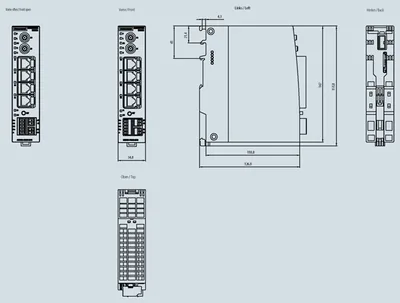

design, dimensions and weights
designcompact
depth127 mm
height147 mm
width35 mm
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeYok
statistics packet typeYok
error statisticsYok
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
with VPN connectionIPsec, OpenVPN (as Client for SINEMA RC)
number of possible connections / with VPN connection20
type of authentication / with Virtual Private Network / PSKVar
IPsec tunnel and transport modeVar
1 / with IPsec AES / with Virtual Private Network128 bit
2 / with IPsec AES / with Virtual Private Network192 bit
3 / with IPsec AES / with Virtual Private Network256 bit
with IPsec 3DES / with Virtual Private Network168 bit
main modeVar
quick modeVar
type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512
IETF profile / with Virtual Private Network / X.509v3 certificateVar
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4
for hazardous zoneEN 60079-15, EN 60079-0, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X
for safety / from CSA and ULUL E115352 Vol. X2
CE markingVar
CCC approvalVar; GB3836.1, GB3836.8, Ex nA IIC T4 Gc
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total630,27 kg
during manufacturing82,01 kg
during operation547,91 kg
after end of life0,35 kg
Aksesuarlar 74
Siemens 6GK6108-4AM00-2DA2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0AB10 | Aksesuar | |
| 6GK5908-0PB00 | Aksesuar | |
| 6GK5896-4MA00-0AA3 | Aksesuar · Antenna | |
| 6XV1875-5LH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5897-4ME00-0AA0 | Aksesuar · Antenna | |
| 6NH9860-1AA00 | Aksesuar · Antenna | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1720-1AH01-0BV0 | Aksesuar | |
| 6GK5898-8MD00 | Aksesuar | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5898-8MR00 | Aksesuar | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6GK1901-1BB10-2AE0 | Aksesuar | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6GK1901-1BB12-2AB0 | Aksesuar | |
| 6GK1901-1BB12-2AE0 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5MH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK5896-4ME00-0AA0 | Aksesuar · Antenna | |
| 6GK5896-6MH00-0AA0 | Aksesuar · Antenna | |
| 6XV1875-5LE30 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK6000-8NT01-1AA0 | Aksesuar |
