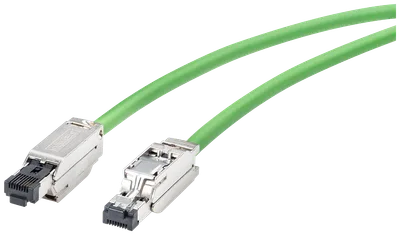

Siemens 6XV1871-5BN30
IE connecting cable IE FC RJ45 Plug-180/IE FC RJ45 Plug-180; IE FC Trailing Cable GP Pre-assembled with 2x IE FC RJ45 plug 180; length 30 m.
product brand nameSIMATIC NET
cable designationSF/UTP
wire length30 m
number of electrical connections2
at 10 MHz / maximum0,06 dB/m
at 100 MHz / maximum0,2 dB/m
Ürün Hakkında
IE connecting cable IE FC RJ45 Plug-180/IE FC RJ45 Plug-180; IE FC Trailing Cable GP Pre-assembled with 2x IE FC RJ45 plug 180; length 30 m.
Siemens 6XV1871-5BN30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor connecting Industrial Ethernet stations with an RJ45 interface (10/100 Mbps)
cable designationSF/UTP
wire length30 m
electrical data
number of electrical connections2
at 10 MHz / maximum0,06 dB/m
at 100 MHz / maximum0,2 dB/m
at 1 MHz ... 100 MHz100 Ω
of the characteristic impedance at 1 MHz … 100 MHz5 %
at 1 MHz ... 100 MHz0,5 dB/m
transfer impedance per length / at 10 MHz20 mΩ/m
loop resistance per length / maximum120 mΩ/m
RMS value80 V
NVP value in percent66 %
mechanical data
number of electrical cores4
design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
of AWG22 insulated conductor0,75 mm
of inner conductor0,75 mm
of the wire insulation1,5 mm
of the inner sheath of the cable3,9 mm
of cable sheath6,5 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cablePVC
of cable sheathPVC
of the insulation of data wireswhite/yellow/blue/orange
of cable sheathgreen
with single bend / minimum permissible32,5 mm
with multiple bends / minimum permissible58,5 mm
with continuous bending100 mm
number of bending cycles3000000; Drag chain suitable for 3 million bending cycles a bending radius of 100 mm, a speed of 4 m/s ve an acceleration of 4 m/s²
tensile load / maximum150 N
weight per length68 kg/km
plug
design of plug-in connectionRJ45-180
ambient conditions
during operation-25... +75 °C
during storage-25... +75 °C
during transport-25... +75 °C
during installation-10... +60 °C
noteelectrical properties measured 20 °C
fire behaviorflame resistant according to UL 1685 (CSA FT 4)
to mineral oilconditional resistance
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
PoE capabilityVar
PoE+ capabilityVar
silicon-freeVar
at AC / core-to-core500 V
at AC / core shield1500 V
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(ETL)us, CMG FT4 / (ETL)us PLTC / Sun Res / OIL RES
UL/ETL style / 600 V RatingVar; cRUus AWM 21694 AWM I A/B 60°C 600V FT2
EAC approvalVar
CE markingVar
RoHS conformityVar
standard for structured cablingCat5e, Class D
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Aksesuarlar 4
Siemens 6XV1871-5BN30 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-1BE00-0AA1 | Aksesuar · Cabling system | |
| 6GK1901-1BE00-0AA3 | Aksesuar · Cabling system | |
| 6GK1901-1BK00-0AA1 | Aksesuar · Cabling system | |
| 6GK1901-1BB50-0AA0 | Aksesuar |
