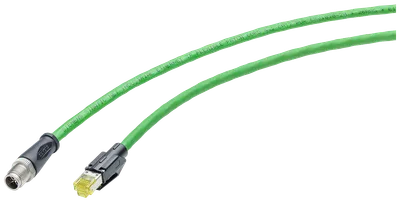

Siemens 6XV1878-5TH15
IE TP Cord M12-180/RJ45-180 pre-assembled IE Flexible Cable, with 1x M12 plug (X-coded) 180 degrees cable outlet and 1x RJ45 plug; 180-degree cable outlet; length 1.5 m.
product brand nameSIMATIC NET
cable designationS/FTP
wire length1,5 m
number of electrical connections2
at 10 MHz / maximum0,086 dB/m
at 100 MHz / maximum0,28 dB/m
Ürün Hakkında
IE TP Cord M12-180/RJ45-180 pre-assembled IE Flexible Cable, with 1x M12 plug (X-coded) 180 degrees cable outlet and 1x RJ45 plug; 180-degree cable outlet; length 1.5 m.
Siemens 6XV1878-5TH15
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor connecting Industrial Ethernet stations with an M12 interface (e.g. SCALANCE W ve SCALANCE X)
cable designationS/FTP
wire length1,5 m
electrical data
number of electrical connections2
at 10 MHz / maximum0,086 dB/m
at 100 MHz / maximum0,28 dB/m
at 300 MHz / maximum0,402 dB/m
at 600 MHz / maximum0,735 dB/m
at 1 MHz ... 100 MHz100 Ω
at 100 MHz0,724 dB/m
at 300 MHz0,653 dB/m
at 600 MHz0,608 dB/m
loop resistance per length / maximum290 mΩ/m
insulation resistance coefficient5000 GΩ·m
RMS value80 V
NVP value in percent68 %
mechanical data
number of electrical cores8
design of the shieldS/FTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires
type of electrical connection / FastConnectYok
of AWG26 insulated conductor0,48 mm
of the wire insulation1 mm
of the inner sheath of the cable5,4 mm
of cable sheath6,5 mm
symmetrical tolerance of the outer diameter / of cable sheath0,3 mm
of the wire insulationpolyethylene (PE)
of cable sheathPUR
of the insulation of data wireswhite/blue, white/orange, white/green, white/brown
of cable sheathgreen
with single bend / minimum permissible32,5 mm
with multiple bends / minimum permissible65 mm
tensile load / maximum100 N
weight per length45 kg/km
ambient conditions
during operation-30... +80 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation-40... +80 °C
fire behaviorflame resistant according to IEC 60332-1-2, smoke density according to IEC 61034
to mineral oiloil resistant according to DIN EN 60811-2-1
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
protection class IPIP65/67 (M12), IP20 (RJ45)
product features, product functions, product components / general
halogen-freeVar; acc. to IEC 60754-1, IEC 61034
PoE capabilityVar
PoE+ capabilityVar
PoE++ capabilityVar
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; AWM Style 21815, Wiring Harness
UL/ETL style / 600 V RatingYok
certificate of suitabilityISO/IEC 11801-1, IEC 61035
EAC approvalVar
CE markingVar
RoHS conformityVar
standard for structured cablingCat6A
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Aksesuarlar 9
Siemens 6XV1878-5TH15 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-0DE10-6AA0 | Aksesuar | |
| 6GK1901-0DM40-2AA5 | Aksesuar | |
| 6GK1901-1BE00-0AA2 | Aksesuar · Cabling system | |
| 6GK1901-1FC00-0AA0 | Aksesuar · Cabling system | |
| 6GK1901-0BE10-0AA0 | Aksesuar · Cabling system | |
| 6GK1901-0DE11-6AA0 | Aksesuar | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK1901-1BE00-0AA0 | Aksesuar · Cabling system | |
| 6GK1901-1BE00-0AA4 | Aksesuar · Cabling system |
