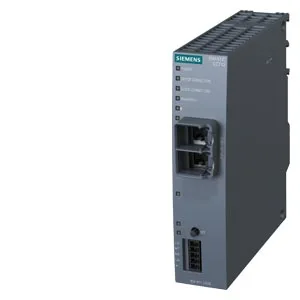

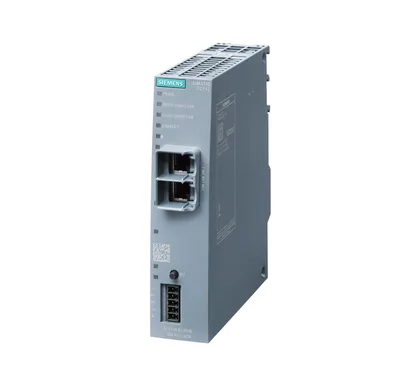

Siemens 6GK1411-1AC00
SIMATIC CloudConnect 7, CC712 IoT Gateway for connection of programmable controllers to cloud services and OPC 2xEthernet RJ45 field protocols: S7, S7-Plus, OPC UA, Modbus MES/cloud protocols: MQTT, HTTP, OPC UA
product brand nameSIMATIC NET
at the 1st interface10... 1000 Mbit/s
at the 2nd interface10... 1000 Mbit/s
for power supply2
for power supply5-pin terminal strip
CLPVar
Ürün Hakkında
SIMATIC CloudConnect 7, CC712 IoT Gateway for connection of programmable controllers to cloud services and OPC 2xEthernet RJ45 field protocols: S7, S7-Plus, OPC UA, Modbus MES/cloud protocols: MQTT, HTTP, OPC UA
Siemens 6GK1411-1AC00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface10... 1000 Mbit/s
at the 2nd interface10... 1000 Mbit/s
interfaces
at the 1st interface / according to Industrial Ethernet1
at the 2nd interface / according to Industrial Ethernet1
for power supply2
at the 1st interface / according to Industrial EthernetRJ45 port
at the 2nd interface / according to Industrial EthernetRJ45 port
for power supply5-pin terminal strip
CLPVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage24 V
supply voltage / external10,8... 28,8 V
supply voltage / external / at DC / rated value24 V
— in communication mode / typical180 mA
power loss [W]4,3 W
ambient conditions
for vertical installation / during operation0... 40 °C
for horizontally arranged busbars / during operation0... 60 °C
during storage-40... +40 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact
width35 mm
height147 mm
depth127 mm
net weight0,3 kg
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product functions / cloud connectivity
Message Queuing Telemetry Transport (MQTT)Var
Advanced Message Queuing Protocol (AMQP)Yok
HTTPVar
REST-APIVar
trigger managementVar
time stampingVar
product feature / for cloud connectivity / buffered message frame memoryVar
number of active connections / for cloud connectivity3
number of lower-level devices / maximum1
number of data points per device / maximum500
performance data / S7 communication
maximum1
performance data / as OPC UA server
protocol / is supported / OPC UA ServerVar
number of possible connections / to OPC UA clients / maximum10
number of variables (items) / maximum1500
performance data / as OPC UA client
protocol / is supported / OPC UA ClientVar
number of possible connections / for OPC UA server / maximum1
product functions / diagnostics
product function / web-based diagnosticsVar
product functions / security
operating mode / Virtual Private Network (VPN)Yok
password protection for Web applicationsVar
SysLogVar
product functions / time
NTPVar
NTP (secure)Var
from NTP-serverVar
manual settingVar
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / cULus approvalVar
certificate of suitability / KC approvalVar
certificate of suitability / Regulatory Compliance Mark (RCM)Var
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
certificate of suitability / FM registrationVar
Aksesuarlar 35
Siemens 6GK1411-1AC00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0UB00-0AA0 | Aksesuar | |
| 6GK5898-8MD00 | Aksesuar | |
| 6GK5898-8MR00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-2A | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical |
