Detayları Gör
Siemens
6GK1411-1AC00
MFR #6GK1411-1AC00
SKU #YLSUPUJLQ5SX
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

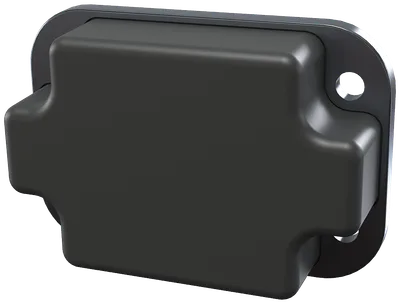

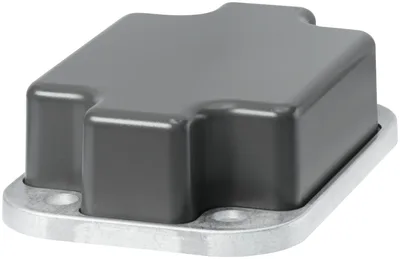

Siemens 6GK5896-6MH00-0AA0
Please observe national approvals: www.siemens.com/mobilenetwork-approvals antenna için GSM (2G), UMTS (3G) ve LTE (4G) Networks, için Suitable için railway applications, Omnidirectional Characteristic, dahil N-Connect female bağlantı; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; montaj on vehicle roof; compact instructions as hard copy German/English; scope of teslimat: 1x ANT 896-6MH,.
product brand nameSCALANCE
type of wireless network / is supportedLTE, UMTS, GSM
operating frequency / 1790... 960 MHz
operating frequency / 21350... 2700 MHz
for WLAN in 2.4 GHz frequency band2,4... 2,7 GHz
with linear radiationmeasured on a metal floor area 1x1m
Ürün Hakkında
Please observe national approvals: www.siemens.com/mobilenetwork-approvals antenna için GSM (2G), UMTS (3G) ve LTE (4G) Networks, için Suitable için railway applications, Omnidirectional Characteristic, dahil N-Connect female bağlantı; 5/6 dBi; IP69K (-40...+85 °C), observe national approvals; montaj on vehicle roof; compact instructions as hard copy German/English; scope of teslimat: 1x ANT 896-6MH,.
Siemens 6GK5896-6MH00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
radio frequencies
type of wireless network / is supportedLTE, UMTS, GSM
operating frequency / 1790... 960 MHz
operating frequency / 21350... 2700 MHz
for WLAN in 2.4 GHz frequency band2,4... 2,7 GHz
electrical data
with linear radiationmeasured on a metal floor area 1x1m
with linear radiation / in operating frequency area 1 / typical5 dB
with linear radiation / in operating frequency area 2 / typical5 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum2,2
horizontal360°
number of electrical connections / of the antenna1
type of electrical connection / of the antennaN-Connector
design of plug-in connectionfemale
ambient conditions
during operation-40... +85 °C
during storage-40... +85 °C
protection class IPIP69K
wind load / maximumSurvival 500 km/h
design, dimensions and weights
width100 mm
height40 mm
depth145 mm
net weight488 g
mast mountingYok
flat roof mountingVar
directly on the deviceYok
product features, product functions, product components / general
product feature / silicon-freeVar
standards, specifications, approvals
certificate of suitabilityRailway application acc. to DIN5510-2, BS6853, NF-F-16-101, NF-F-16-102
RoHS conformityVar
railway application in accordance with EN 50155Var
fire protection in accordance with EN 45545-2Var
Aksesuarlar 75
Siemens 6GK5896-6MH00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0UB00-0AA0 | Aksesuar | |
| 6GK5908-0UA00-0AA0 | Aksesuar | |
| 6GK5897-4MC00-0AA0 | Aksesuar · Antenna | |
| 6XV1875-5AH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5897-4ME00-0AA0 | Aksesuar · Antenna | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6GK1720-1AH01-0BV0 | Aksesuar | |
| 6GK1908-0DB10-6AA0 | Aksesuar | |
| 6XV1801-2CH20 | Aksesuar · Cables · power cables | |
| 6GK1901-0DB50-6AA0 | Aksesuar | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DB50-6AA8 | Aksesuar | |
| 6GK5798-8MF00-0AA1 | Aksesuar | |
| 6GK5798-8MF00-0AB1 | Aksesuar | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1878-5GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1875-5AH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AN10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5SH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5SH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5SH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1876-2A | Aksesuar · Cables · network cable electrical | |
| 6GK1906-0EA00 | Aksesuar | |
| 6GK1907-0AB11-6AA0 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6XV1878-5SE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5SN15 | Aksesuar · Cables · network cable electrical |
