Siemens
6GK1411-1AC00
MFR #6GK1411-1AC00
SKU #YLSUPUJLQ5SX
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

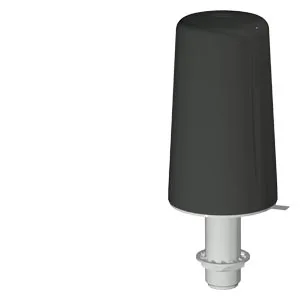

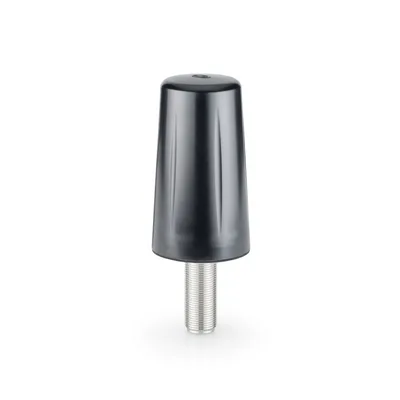

Siemens 6GK5897-4ME00-0AA0
Please observe national approvals: www.siemens.com/mobilenetwork-approvals 3/4/5G mobile kablosuz networks ve private 5G networks ve WLAN 2,4/5 GHz, worldwide; omnidirectional characteristic; 600..6000 MHz; antenna gain: 2..6 dBi, dahil N-Connect female bağlantı, IP65; -40..+85 °C; observe national approvals; montaj on wall veya mast scope of teslimat: 1x ANT 897-4ME, 1x montaj braket; compact instructions as hard copy German/English,
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks & IWLAN
operating frequency / 1617... 698 MHz
operating frequency / 2698... 960 MHz
operating frequency / 31427... 2700 MHz
operating frequency / 43300... 7125 MHz
Ürün Hakkında
Please observe national approvals: www.siemens.com/mobilenetwork-approvals 3/4/5G mobile kablosuz networks ve private 5G networks ve WLAN 2,4/5 GHz, worldwide; omnidirectional characteristic; 600..6000 MHz; antenna gain: 2..6 dBi, dahil N-Connect female bağlantı, IP65; -40..+85 °C; observe national approvals; montaj on wall veya mast scope of teslimat: 1x ANT 897-4ME, 1x montaj braket; compact instructions as hard copy German/English,
Siemens 6GK5897-4ME00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
suitability for operationantenna for 5G/4G/3G/2G networks & IWLAN
radio frequencies
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS, GSM, WLAN
operating frequency / 1617... 698 MHz
operating frequency / 2698... 960 MHz
operating frequency / 31427... 2700 MHz
operating frequency / 43300... 7125 MHz
electrical data
with linear radiationtypical maks. gain, measured on supplied holder
with linear radiation / in operating frequency area 1 / typical1 dB
with linear radiation / in operating frequency area 2 / typical2 dB
with linear radiation / in operating frequency area 3 / typical2 dB
with linear radiation / in operating frequency area 4 / typical7 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum3
number of electrical connections / of the antenna1
type of electrical connection / of the antennaN-Connector
design of plug-in connectionfemale
mechanical data
of the enclosureAluminum, chromate-free conversion layer
of outer shellASA
colorblack
ambient conditions
during operation-40... +80 °C
during storage-40... +80 °C
protection class IPIP65
design, dimensions and weights
height82 mm
diameter48 mm
net weight212 g
mast mountingVar
flat roof mountingVar
wall mountingVar
roof mountingYok
directly on the deviceYok
product features, product functions, product components / general
product feature / silicon-freeVar
standards, specifications, approvals
RoHS conformityVar
Aksesuarlar 1
Siemens 6GK5897-4ME00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
