Siemens 6GK1411-5BB00

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

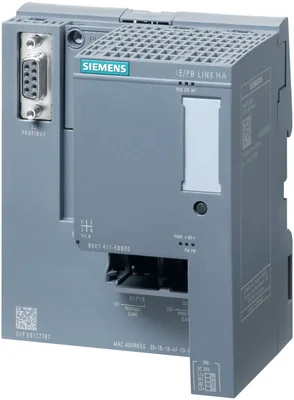

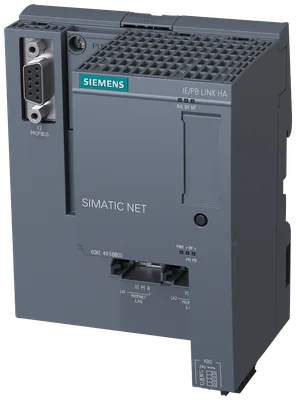

Siemens 6GK1411-5BB00

IE/PB LINK HA gateway between Ind. Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, system redundancy S2; H-CiR, time synch. via SIMATIC processes, NTP, SNMP V1, LLDP, S7 routing, data set routing, connection of up to 125 S7/DPV0/DPV1 devices (64 for S2 operation), support of DP/PA link and DP/FF link, 10/100 Mbps Fast Ethernet, MRP, 9.6 Kbps to 12 Mbps Profibus, firmware loading via configuration tool, redundant power supply, conformal coating, external temperature -40 °C.. 70 °C

SiemensMFR # 6GK1411-5BB00SKU # YLS8ZXA1XMOM1Z2
product brand nameSIMATIC NET
at the 1st interface10... 100 Mbit/s
at the 2nd interface9,6 kbit/s... 12 Mbit/s
for power supply2
for power supply4-pole terminal block
C-PLUGVar
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

IE/PB LINK HA gateway between Ind. Ethernet and PROFIBUS, PROFINET IO proxy with real-time communication, system redundancy S2; H-CiR, time synch. via SIMATIC processes, NTP, SNMP V1, LLDP, S7 routing, data set routing, connection of up to 125 S7/DPV0/DPV1 devices (64 for S2 operation), support of DP/PA link and DP/FF link, 10/100 Mbps Fast Ethernet, MRP, 9.6 Kbps to 12 Mbps Profibus, firmware loading via configuration tool, redundant power supply, conformal coating, external temperature -40 °C.. 70 °C

Siemens 6GK1411-5BB00

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMATIC NET
suitability for operationGateway between Industrial Ethernet ve PROFIBUS
transfer rate
at the 1st interface10... 100 Mbit/s
at the 2nd interface9,6 kbit/s... 12 Mbit/s
interfaces
at the 1st interface / according to Industrial Ethernet2
at the 2nd interface / according to PROFIBUS1
for power supply2
at the 1st interface / according to Industrial EthernetRJ45 port onboard veya SIMATIC BusAdapter
at the 2nd interface / according to PROFIBUS9-pin Sub-D socket (RS 485)
for power supply4-pole terminal block
C-PLUGVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / external / at DC / rated value24 V
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
from external supply voltage / at DC / at 24 V / typical0,2 A
from external supply voltage / at DC / at 24 V / maximum0,3 A
power loss [W]4,8 W; typical 4,8 W, maximum 7,2 W
ambient conditions
for vertical installation / during operation-40... +50 °C
for horizontally arranged busbars / during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
ambient condition / relating to ambient temperature - air pressure - installation altitudeduring operation maks. 2.000 m above sea level maks. 60 °C ambient temperature
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatET 200SP design
width100 mm
height117 mm
depth74 mm
net weight0,6 kg
product feature / conformal coatingVar
35 mm DIN-rail mountingVar
performance data / PROFIBUS DP
DPV0Var
DPV1Var
at the 2nd interface / as DP master / maximum125; veya 64 as S2 device
of the address range of the inputs / as DP master / total4096 bayt
of the address range of the outputs / as DP master / total4096 bayt
of the address range of the inputs / per DP device244 bayt
of the address range of the outputs / per DP device244 bayt
performance data / S7 communication
maximum32
performance data / multi-protocol mode
number of active connections / with multi-protocol mode48
performance data / PROFINET communication / as PN IO device
product function / PROFINET IO deviceVar
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
DCPVar
LLDPVar
requiredSTEP 7 as of V5.6 SP2 HF3 ve HSP, STEP 7 Professional as of V17, PCS 7 as of V9.0 SP3, SINEC PNI as of V1.0
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
I&M2 - installation dateVar
I&M3 - commentVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / routing
service / as PROFIBUS / dataset routingVar
number of possible connections / with dataset routing / maximum32
product functions / redundancy
ring redundancyVar
PROFINET system redundancyVar; as an S2 device on CPU 410-5 H, S7-400H ve S7-1500R/H
protocol / is supported / Media Redundancy Protocol (MRP)Var
product functions / time
product function / pass on time synchronizationVar
NTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
certificate of suitability / CE markingVar
certificate of suitability / UKCA markingVar
certificate of suitability / KC approvalVar
certificate of suitability / RoHS conformityVar
certificate of suitability / EAC approvalVar
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEXVar
certificate of suitability / IECExVar
certificate of suitability / ULhazloc approvalVar
certificate of suitability / CCC / for hazardous zone according to GB standardVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total153,98 kg
during manufacturing22,6 kg
during operation131 kg
after end of life0,38 kg
accessories
accessoriesoptional: C-PLUG (mandatory for S7 1500R/H), SIMATIC BusAdapter of the ET 200SP system
