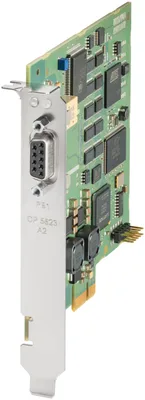

Siemens 6GK1562-3AA01
communications processor CP 5623 A2 PCI Express X1 (3. 3 V) for connection to PROFIBUS; including configuration tool and DP-Base software: DP-RAM interface for DP master including PG and FDL protocol, single license for 1 installation, runtime software, class A; operating system support, see SIMATIC NET software.
product brand nameSIMATIC NET
of the backplane busPCI Express x1
type of voltage / of the supply voltageDC
1 / from backplane bus3,3 V
2 / from backplane bus12 V
at 3.3 V9 %
Ürün Hakkında
communications processor CP 5623 A2 PCI Express X1 (3. 3 V) for connection to PROFIBUS; including configuration tool and DP-Base software: DP-RAM interface for DP master including PG and FDL protocol, single license for 1 installation, runtime software, class A; operating system support, see SIMATIC NET software.
Siemens 6GK1562-3AA01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface / according to PROFIBUS9,6 kbit/s... 12 Mbit/s
interfaces
at the 1st interface / according to PROFIBUS1
at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS 485)
of the backplane busPCI Express x1
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
1 / from backplane bus3,3 V
2 / from backplane bus12 V
at 3.3 V9 %
at 12 V8 %
1 / from backplane bus / at DC / maximum0,3 A
2 / from backplane bus / at DC / maximum0,25 A
power loss [W]4 W
ambient conditions
during operation5... 55 °C
during storage-20... +60 °C
during transport-20... +60 °C
relative humidity / at 25 °C / without condensation / during operation / maximum85 %
protection class IPIP00
design, dimensions and weights
module formatPCI Express x1 (half length)
width18 mm
height112 mm
depth101 mm
net weight0,088 kg
product features, product functions, product components / general
number of plug-in cards of same design / plug-in / per PC station4
number of units / note-
performance data / open communication
software / for open communication / by means of SEND/RECEIVE / requiredFDL driver included in scope of delivery of the CP
number of possible connections / for open communication / by means of SEND/RECEIVE / maximum80
performance data / PROFIBUS DP
software / for DP master function / requiredYok
DPV0Var
DPV1Var
DPV2Var
number of DP devices / on DP master / operable124
of the address range of the inputs / as DP master / total30256 bayt
of the address range of the outputs / as DP master / total30256 bayt
of the address range of the inputs / per DP device244 bayt
of the address range of the outputs / per DP device244 bayt
of the address range of the diagnostic data / per DP device244 bayt
software / for DP device function / requiredYok
DPV0Var
DPV1Var
of the address range of the inputs / as DP device / total244 bayt
of the address range of the outputs / as DP device / total244 bayt
performance data / S7 communication
software / for S7 communication / requiredyes, HARDNET-PB S7
number of possible connections / for S7/PG communication / maximum50
performance data / multi-protocol mode
number of active connections / with multi-protocol mode50
number of configurable connections / per PC station207
product functions / management, configuration, engineering
configuration software / requiredIncluded in scope of supply
product functions / diagnostics
port diagnosticsVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total127,99 kg
during manufacturing18,9 kg
during operation109 kg
after end of life0,09 kg
Aksesuarlar 3
Siemens 6GK1562-3AA01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1713-5CB00-3AL0 | Aksesuar | |
| 6GK1713-5CB25-0AA0 | Aksesuar | |
| 6GK1713-5DB25-0AA0 | Aksesuar |
