Siemens
1EE1122-..A00-...4
MFR #1EE1122-..A00-...4
SKU #YLS3FGFZLYE3EV8
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.
Siemens 6NH9860-1AA00

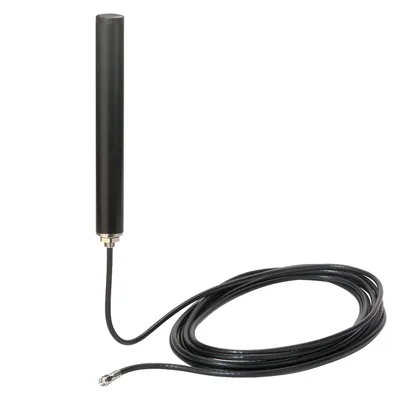

ANT794-4MR mobile wireless antenna for 2G/3G/4G EU, GSM/UMTS/ LTE EU networks, rod antenna; omnidirectional; weatherproof for indoors and outdoors; 5 m connection cable permanently connected to the antenna; SMA connector; national approval and data sheet to be observed; scope of supply: 1 antenna, 1 mounting bracket, screws, screw anchors.
product brand nameSCALANCE
suitability for operationfor indoor ve outdoor applications
type of wireless network / is supportedLTE, UMTS, GSM
operating frequency / 1790... 960 MHz
operating frequency / 21710... 2170 MHz
operating frequency / 32400... 2690 MHz
Ürün Hakkında
ANT794-4MR mobile wireless antenna for 2G/3G/4G EU, GSM/UMTS/ LTE EU networks, rod antenna; omnidirectional; weatherproof for indoors and outdoors; 5 m connection cable permanently connected to the antenna; SMA connector; national approval and data sheet to be observed; scope of supply: 1 antenna, 1 mounting bracket, screws, screw anchors.
Siemens 6NH9860-1AA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
suitability for operationfor indoor ve outdoor applications
radio frequencies
type of wireless network / is supportedLTE, UMTS, GSM
operating frequency / 1790... 960 MHz
operating frequency / 21710... 2170 MHz
operating frequency / 32400... 2690 MHz
electrical data
with linear radiationtypical gain
with linear radiation / in operating frequency area 1 / typical0 dB
with linear radiation / in operating frequency area 2 / typical0 dB
with linear radiation / in operating frequency area 3 / typical2 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum2
number of electrical connections / of the antenna1
type of electrical connection / of the antennaSMA Connector
design of plug-in connectionmale
mechanical data
of outer shellHard PVC, UV-resistant
of cable sheathPVC
color / of cable sheathBlack
with single bend / minimum permissible42 mm
with multiple bends / minimum permissible83 mm
ambient conditions
during operation-40... +85 °C
protection class IPIP54
product feature / resistant to UV radiationVar

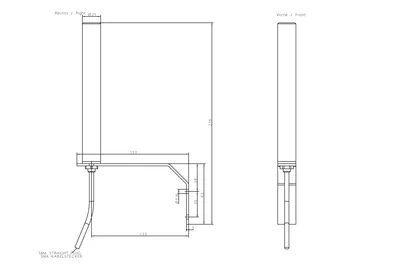

design, dimensions and weights
width25 mm
height193 mm
depth25 mm
diameter25 mm
net weight310 g
fastening methodmounting brackets ve mounting parts, dikey mounting
mast mountingVar
flat roof mountingYok
wall mountingVar
roof mountingYok
directly on the deviceYok
cable designationLi02YS-St-C-Y 1
wire length / of antenna cable5 m
standards, specifications, approvals
RoHS conformityVar
