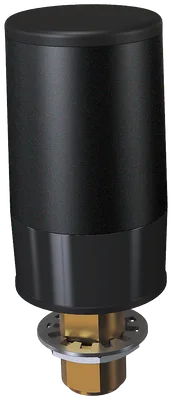

Siemens 6GK5896-4ME00-0AA0
Please observe national approvals: www.siemens.com/mobilenetwork-approvals antenna için GSM (2G), UMTS (3G) ve LTE(4G) Networks, Omnidirectional Characteristic, dahil N-Connect female bağlantı 3 dBi; IP66 (-40-+70 °C), observe national approvals; montaj on kontrol pano; scope of teslimat: 1x ANT 896-4ME, compact instructions as hard copy German/English;
product brand nameSCALANCE
type of wireless network / is supportedLTE, UMTS, GSM
operating frequency / 1698... 960 MHz
operating frequency / 21710... 2700 MHz
impedance50 Ω
polarizationLinear Vertical
Ürün Hakkında
Please observe national approvals: www.siemens.com/mobilenetwork-approvals antenna için GSM (2G), UMTS (3G) ve LTE(4G) Networks, Omnidirectional Characteristic, dahil N-Connect female bağlantı 3 dBi; IP66 (-40-+70 °C), observe national approvals; montaj on kontrol pano; scope of teslimat: 1x ANT 896-4ME, compact instructions as hard copy German/English;
Siemens 6GK5896-4ME00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
radio frequencies
type of wireless network / is supportedLTE, UMTS, GSM
operating frequency / 1698... 960 MHz
operating frequency / 21710... 2700 MHz
electrical data
with linear radiationtypical maximum gain without connecting cable
with linear radiation / in operating frequency area 1 / typical3 dB
with linear radiation / in operating frequency area 2 / typical3 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum2
horizontal360°
number of electrical connections / of the antenna1
type of electrical connection / of the antennaN-Connector
design of plug-in connectionfemale
ambient conditions
during operation-40... +70 °C
protection class IPIP66
design, dimensions and weights
height61 mm
diameter38,1 mm
net weight220 g
flat roof mountingVar
roof mountingYok
directly on the deviceYok
product features, product functions, product components / general
product feature / silicon-freeVar
standards, specifications, approvals
RoHS conformityVar
Aksesuarlar 63
Siemens 6GK5896-4ME00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0AB10 | Aksesuar | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5908-0PB00 | Aksesuar | |
| 6GK5898-8MR00 | Aksesuar | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1720-1AH01-0BV0 | Aksesuar | |
| 6GK5898-8MD00 | Aksesuar | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6GK1901-1BB10-2AE0 | Aksesuar | |
| 6GK1901-1BB12-2AB0 | Aksesuar | |
| 6GK1901-1BB12-2AE0 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5MH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical |
