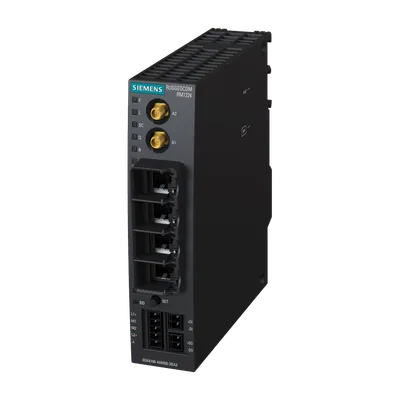

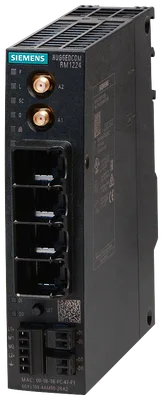

Siemens 6GK6108-4AM00-2BA2
RUGGEDCOM RM1224-EU 4G ROUTER için kablosuz IP-communication from Ethernet based devices via LTE(4G)- mobile radio, optimize için use in Europa, VPN, firewall, NAT 4-port anahtar 2x SMA antenna Connectors, MIMO technology 1xdig. giriş, 1xdig. çıkış Please note national approvals!
product brand nameRUGGEDCOM
transfer rate / for Industrial Ethernet10, 100 Mbit/s
for internal network4
for external network2
for power supply2
for external networkSMA antenna socket (50 ohms)
Ürün Hakkında
RUGGEDCOM RM1224-EU 4G ROUTER için kablosuz IP-communication from Ethernet based devices via LTE(4G)- mobile radio, optimize için use in Europa, VPN, firewall, NAT 4-port anahtar 2x SMA antenna Connectors, MIMO technology 1xdig. giriş, 1xdig. çıkış Please note national approvals!
Siemens 6GK6108-4AM00-2BA2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameRUGGEDCOM
transfer rate
transfer rate / for Industrial Ethernet10, 100 Mbit/s
for GPRS transmission / with downlink / maximum85,6 kbit/s
for GPRS transmission / with uplink / maximum85,6 kbit/s
with eGPRS transmission / with downlink / maximum236,8 kbit/s
with eGPRS transmission / with uplink / maximum236,8 kbit/s
with UMTS transmission / with downlink / maximum14,4 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum100 Mbit/s
for LTE transmission / with uplink / maximum50 Mbit/s
interfaces
for internal network4
for external network2
for power supply2
for internal networkRJ45 port (10/100 Mbit/s, TP, autocrossover)
for external networkSMA antenna socket (50 ohms)
for power supplyTerminal strip
WAN connection
type of wireless network / is supportedLTE, UMTS, GSM
type of mobile wireless service / is supportedGPRS, eGPRS, HSPA+
operating frequency / for GSM transmission900 MHz, 1800 MHz
operating frequency / with UMTS transmission900 MHz, 1800 MHz, 2100 MHz
operating frequency / for LTE transmission800 MHz, 900 MHz, 1800 MHz, 2100 MHz, 2600 MHz
supply voltage, current consumption, power loss
supply voltage / rated value10,8... 28,8
at rated supply voltage / maximum330 mA
maximum8 W
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
ambient conditions
during operation-40... +75 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP20

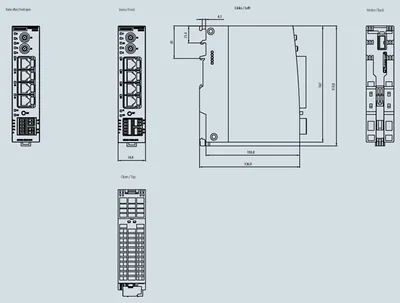

design, dimensions and weights
designcompact
depth127 mm
height147 mm
width35 mm
35 mm DIN-rail mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeYok
statistics packet typeYok
error statisticsYok
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
with VPN connectionIPsec, OpenVPN (as Client for SINEMA RC)
number of possible connections / with VPN connection20
type of authentication / with Virtual Private Network / PSKVar
IPsec tunnel and transport modeVar
1 / with IPsec AES / with Virtual Private Network128 bit
2 / with IPsec AES / with Virtual Private Network192 bit
3 / with IPsec AES / with Virtual Private Network256 bit
with IPsec 3DES / with Virtual Private Network168 bit
main modeVar
quick modeVar
type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512
IETF profile / with Virtual Private Network / X.509v3 certificateVar
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
for EMCETSI EN 301 489-1, ETSI EN 301 489-7, ETSI EN 301 489-24, EN 61000-6-2, EN 61000-6-4
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4
for hazardous zoneEN 60079-15, EN 60079-0, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X
for safety / from CSA and ULUL E115352 Vol. X2
for emitted interferenceETSI EN 301 489-1, ETSI EN 301 489-7, ETSI EN 301 489-24, EN 61000-6-4
for interference immunityETSI EN 301 489-1, ETSI EN 301 489-7, ETSI EN 301 489-24, EN 61000-6-2
CE markingVar
CCC approvalVar; GB3836.1, GB3836.8, Ex nA IIC T4 Gc
railway application in accordance with EN 50121-3-2Var
railway application in accordance with EN 50121-4Var
railway application in accordance with EN 50155Var
fire protection in accordance with EN 45545-2Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total630,27 kg
during manufacturing82,01 kg
during operation547,91 kg
after end of life0,35 kg
