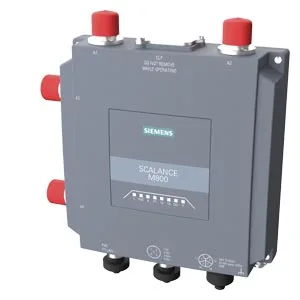

Siemens 6GK5856-2EA10-3BA1
SCALANCE MUM856-1 (B1) 5G router, IP65, için kablosuz IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks ve private 5G networks, VPN, firewall, NAT, IPv6, bağlantı to SINEMA RC via CLP, 4 N- Connect connections, 1x micro SIM slot, eSIM, 1x10/100/1000 Mbps M12 socket, redundant DC 24 V, M12 L-encoded, PoE, -30… +70 °C, CLP slot, 1x DI ve 1x DO, A-coded, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-65-M1-M12-E4-2
product brand nameSCALANCE
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
for external antenna(s)4
for power supply1
for redundant voltage supply1
for external antenna(s)N-Connect (socket)
Ürün Hakkında
SCALANCE MUM856-1 (B1) 5G router, IP65, için kablosuz IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks ve private 5G networks, VPN, firewall, NAT, IPv6, bağlantı to SINEMA RC via CLP, 4 N- Connect connections, 1x micro SIM slot, eSIM, 1x10/100/1000 Mbps M12 socket, redundant DC 24 V, M12 L-encoded, PoE, -30… +70 °C, CLP slot, 1x DI ve 1x DO, A-coded, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-65-M1-M12-E4-2
Siemens 6GK5856-2EA10-3BA1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
with UMTS transmission / with downlink / maximum42 Mbit/s
with UMTS transmission / with uplink / maximum5,76 Mbit/s
for LTE transmission / with downlink / maximum1000 Mbit/s
for LTE transmission / with uplink / maximum200 Mbit/s
for 5G transmission / with downlink / maximum1000 Mbit/s
for 5G transmission / with uplink / maximum500 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum1
number of electrical/optical connections / for gigabit Ethernet / maximum1
for network components or terminal equipment1
for external antenna(s)4
for power supply1
for redundant voltage supply1
for network components or terminal equipmentM12 (8-pin, X-coded), PoE
for external antenna(s)N-Connect (socket)
for redundant voltage supplyM12 (4-pin, L-coded)
memory
number of slots / for Micro-SIM card1
product component / eSIM integratedVar
design of the removable storage / CLPVar
signal inputs/outputs
number of digital inputs1
number of digital outputs1
type of electrical connection / at the digital inputs/outputsM12 (4-pin, A-coded)
input voltage / at digital input / at DC-30... +30 V
output voltage / at digital output / at DC / maximum24 V; 0,5 A
operational current / of the signaling contacts / at DC / at 30 V / maximum0,008 A
WAN connection
type of wireless network / is supported5G public networks, 5G private networks, LTE, UMTS
type of mobile wireless service / is supportedHSDPA, HSUPA, HSPA+
5G Standalone (SA)n1, n3, n5, n8, n28, n41, n77, n78, n79
5G Non-Standalone (NSA)n41, n78, n79
LTEB1, B3, B5, B8, B34, B38, B39, B40, B41
UMTSB1, B5, B8
supply voltage, current consumption, power loss
supply voltage / from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
at DC / at 24 V0,55 A
at DC / at 24 V / sleep mode / maximum0,013 A
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0,27 A
at DC / at 24 V / typical13,2 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical12,96 W
supply voltage / 1 / rated value24 V
type of voltageredundant 24 V DC power supply, M12, L-coded
type of voltage / 1 / of the supply voltageDC
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageDC
supply voltage / 3 / rated value48 V
type of voltage / 3 / of the supply voltageDC, PoE
ambient conditions
during operation-30... +70 °C
during storage-40... +85 °C
relative humidity / at 25 °C / during operation / maximum95 %
protection class IPIP65
design, dimensions and weights
depth45 mm
height179 mm
width166 mm
net weight1300 g
fastening methodWall mounting, mounting on a DIN rail with a separate mounting adapter
35 mm DIN-rail mountingVar
wall mountingVar
product features, product functions, product components / general
DynDNS clientVar
no-ip.com clientVar
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
TelnetVar
HTTPVar
HTTPSVar
type of configurationWeb-based management
product functions / diagnostics
SNMP v1Var
SNMP v2Var
SNMP v2cVar
SNMP v3Var
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
packet filter logVar
product functions / DHCP
DHCP clientVar
DHCP server - internal networkVar
product functions / routing
NAT (IP masquerading)Var
port forwardingVar
NAT traversalVar
1:1 NATVar
DNS cacheVar
product functions / security
suitability for operation / Virtual Private NetworkVar
firewall versionStatefull Inspection
password protectionVar
packet filterVar
broadcast/multicast/unicast limiterYok
broadcast blockingYok
with VPN connectionIPsec, OpenVPN (as Client)
number of possible connections / with VPN connection20
type of authentication / with Virtual Private Network / PSKVar
IPsec tunnel and transport modeVar
1 / with IPsec AES / with Virtual Private Network128 bit
2 / with IPsec AES / with Virtual Private Network192 bit
3 / with IPsec AES / with Virtual Private Network256 bit
with IPsec 3DES / with Virtual Private Network168 bit
main modeVar
quick modeVar
type of packet authentication / with Virtual Private NetworkMD5, SHA-1, SHA-256, SHA-384, SHA-512
IETF profile / with Virtual Private Network / X.509v3 certificateVar
product functions / time
NTPVar
SNTPVar
standards, specifications, approvals
SRRC approvalVar; SRRC-ID: 2023CJ21326
NAL approvalVar; NAL-ID: 17-7730-234052
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total394,89 kg
during manufacturing33,7 kg
during operation361 kg
after end of life0,19 kg
Aksesuarlar 75
Siemens 6GK5856-2EA10-3BA1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0AB10 | Aksesuar | |
| 6GK5908-0PB00 | Aksesuar | |
| 6GK5896-4MA00-0AA3 | Aksesuar · Antenna | |
| 6XV1875-5LH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5897-4ME00-0AA0 | Aksesuar · Antenna | |
| 6NH9860-1AA00 | Aksesuar · Antenna | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6GK1720-1AH01-0BV0 | Aksesuar | |
| 6GK5898-8MD00 | Aksesuar | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5898-8MR00 | Aksesuar | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6GK1901-1BB10-2AE0 | Aksesuar | |
| 6GK1901-1BB12-2AB0 | Aksesuar | |
| 6GK1901-1BB12-2AE0 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5MH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK5896-4ME00-0AA0 | Aksesuar · Antenna | |
| 6GK5896-6MH00-0AA0 | Aksesuar · Antenna | |
| 6XV1875-5LE30 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5LH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5UH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical |
