Siemens 6EP3336-3SB00-0AX0 için nasıl fiyat teklifi alabilirim?

Siemens 6EP3336-3SB00-0AX0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSMNWU8XYCG93 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6EP3336-3SB00-0AX0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6EP3336-3SB00-0AX0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6EP3336-3SB00-0AX0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

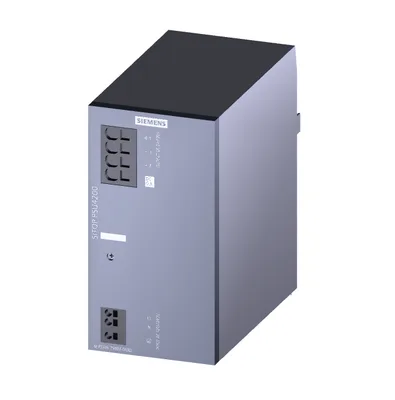

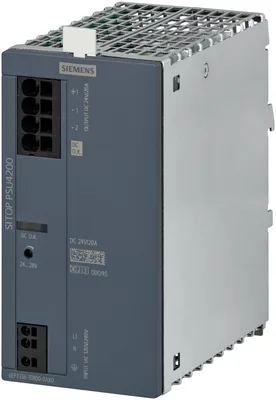

Siemens 6EP3336-3SB00-0AX0

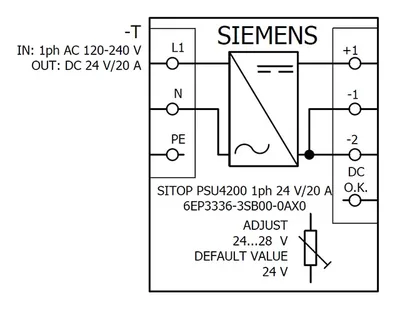

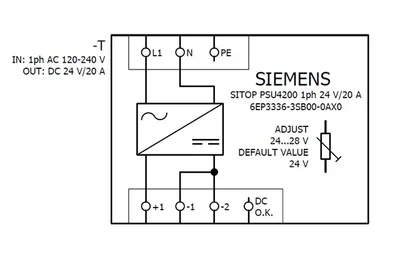

SITOP PSU4200 1AC 24 V/20 A stabilized güç kaynağı PSU4200 giriş: 120/240 V AC çıkış: 24 V DC/20 A

SiemensMFR # 6EP3336-3SB00-0AX0SKU # YLSMNWU8XYCG93

product brand nameSITOP

product type designationPSU4200

product designationPower supply SITOP PSU4200

type of current supply24 V/20 A

type of the power supply network1-phase AC

phase number1

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP PSU4200 1AC 24 V/20 A stabilized güç kaynağı PSU4200 giriş: 120/240 V AC çıkış: 24 V DC/20 A

Siemens 6EP3336-3SB00-0AX0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationPSU4200

product designationPower supply SITOP PSU4200

type of current supply24 V/20 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

minimum rated value120 V

maximum rated value240 V

initial value85 V

full-scale value264 V

at 50 Hz240 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

buffering time for rated value of the output current in the event of power failure minimum15 ms

operating condition of the mains bufferingVin = 120/240 V

at rated input voltage 100 V5,4 A

at rated input voltage 120 V4,5 A

at rated input voltage 200 V2,6 A

at rated input voltage 230 V2,4 A

at rated input voltage 240 V2,3 A

current limitation of inrush current at 25 °C maximum20 A

typical40 ms

I2t value maximum3 A²·s

fuse protection type6,3 A

fuse protection type in the feederRecommended miniature circuit breaker: from 10 A characteristic C to from 16 A characteristic C

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via potentiometer

adjustable output voltage24... 28 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,1 %

on slow fluctuation of ohm loading1 %

maximum150 mV

typical35 mV

maximum240 mV

typical67 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputSignal contact (signal load capacity: 10 mA) for DC OK

behavior of the output voltage when switching onYok overshoot of Vout (soft start)

response delay maximum1,5 s

typical33 ms

maximum500 ms

rated value20 A

rated range0... 20 A; +60... +70 °C: Derating 3%/K

supplied active power typical480 W

bridging of equipmentVar

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent93 %

at rated output voltage for rated value of the output current typical37 W

during no-load operation maximum3 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,2 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical2 %

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3 %

load step 10 to 90% typical1 ms

load step 90 to 10% typical1 ms

protection and monitoring

design of the overvoltage protection< 32 V

property of the output short-circuit proofVar

design of short-circuit protectionShutdown ve periodic restart attempts

typical23,1 A

typical6 A

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum0,7 mA

typical0,5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55032 Class A

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259

UKCA markingVar

EAC approvalVar

Regulatory Compliance Mark (RCM)Var

NEC Class 2Yok

BISVar; in preparation

CB-certificateVar

MTBF at 40 °C1.065.000 h

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalYok

American Bureau of Shipping Europe Ltd. (ABS)Yok

French marine classification society (BV)Yok

Det Norske Veritas (DNV)Yok

Lloyds Register of Shipping (LRS)Yok

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total1.078,9 kg

during manufacturing47,4 kg

during operation1.029,9 kg

after end of life0,72 kg

ambient conditions

during operation-25... +70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

connection method

type of electrical connectionpush-in terminals

at inputL, N, PE: push-in for 0,5... 4 mm²

at output+, -: push-in for 0,5... 6 mm²

for signaling contact13, 14: push-in for 0,2... 1,5 mm²

mechanical data

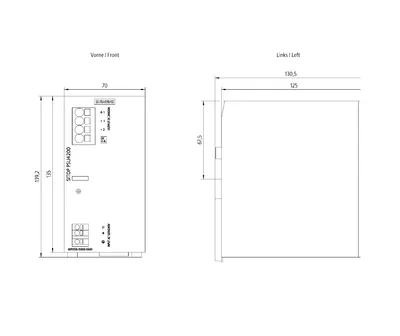

width × height × depth of the enclosure70 × 135 × 125 mm

installation width × mounting height70 mm × 225 mm

top45 mm

bottom45 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight0,93 kg

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing47,4 kg

global warming potential [CO2 eq] / during operation1029,9 kg

global warming potential [CO2 eq] / after end of life0,72 kg

global warming potential [CO2 eq] / total1078,9 kg

Aksesuarlar 28

Siemens 6EP3336-3SB00-0AX0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6EP4437-7FB00-3DX0	Aksesuar · Selectivity module
6EP4437-7EB00-3DX0	Aksesuar · Selectivity module
6EP4231-7HB00-0AX0	Aksesuar · Buffer module · #NO_DATA#
6EP4347-7RB00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
6EP1933-2EC41	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4136-3AB00-0AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6ES7193-6LF30-0AW0	Aksesuar · label
6EP1961-2BA11	Aksesuar · Selectivity module
6EP1961-2BA21	Aksesuar · Selectivity module
6EP4438-7EB00-3DX0	Aksesuar · Selectivity module
6EP4437-7EB00-3CX0	Aksesuar · Selectivity module
6EP4437-8FB00-4CY0	Aksesuar · Selectivity system
6EP1962-2BA00	Aksesuar · Redundancy module · #NO_DATA#
6EP1961-2BA31	Aksesuar · Selectivity module
6EP1961-2BA51	Aksesuar · Selectivity module
6EP1961-2BA41	Aksesuar · Selectivity module
6EP4134-3AB00-0AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4346-7RB00-0AX0	Aksesuar · Redundancy module · #NO_DATA#
6EP1933-2EC51	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP1935-5PG01	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4134-3AB00-2AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4437-7FB00-3CX0	Aksesuar · Selectivity module
6EP4438-7FB00-3DX0	Aksesuar · Selectivity module
6EP4548-7XB00-3AX0	Aksesuar · Chopper module · #NO_DATA#
6EP4136-3AB00-2AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP1961-2BA00	Aksesuar · Diagnosis module · #NO_DATA#
6EP4134-3AB00-1AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
6EP4136-3AB00-1AY0	Aksesuar · Uninterruptible power supply · #NO_DATA#
