How can I get a price quote for Siemens 5SV6016-7KK06?

You can request a fast quote for Siemens 5SV6016-7KK06 from Yılsa Engineering. Reference part number CEY-8EF3B02C3570. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SV6016-7KK06 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SV6016-7KK06 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SV6016-7KK06?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

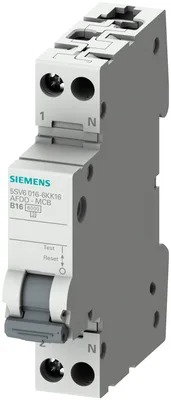

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 5SV6016-7KK06

AFDD-MCB-Combination 230V, 6kA, 1+N, C, 6A Compact (1MW)

SiemensMFR # 5SV6016-7KK06SKU # CEY-8EF3B02C3570

product brand nameSENTRON

product designationAFDD/MCB

design of the productCompact unit

number of poles2

design of pole1P+N

tripping characteristic classC

Have questions?Chat on WhatsApp

About This Product

Siemens 5SV6016-7KK06 (AFDD-MCB-Combination 230V, 6kA, 1+N, C, 6A Compact (1MW)) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 5SV6016-7KK06 — price, stock availability and technical specifications.

Siemens 5SV6016-7KK06

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationAFDD/MCB

design of the productCompact unit

General technical data

number of poles2

design of pole1P+N

tripping characteristic classC

size of installation devices according to DIN 438801

touch protection against electrical shock according to EN 50274finger and back-of-hand safe

mechanical service life (operating cycles) typical10 000

switching function short-term delayedNo

overvoltage category3

degree of pollution2

type of voltage of the operating voltageAC

Supply voltage

at AC230 V

value range of the supply voltage frequency50Hz

Protection class

protection class IPIP20, with connected protective device and conductors

Breaking Capacity

according to EN 60898-1 rated value6 000 A

according to IEC 60947-2 rated value6 000 A

energy limitation class3

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.87 W

Product details

product feature halogen-freeYes

product feature silicon-freeYes

product extension installable supplementary devicesYes

communication functionNo

other measurement functionNo

Connections

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum16 mm²

minimum0.75 mm²

maximum10 mm²

minimum1.2 N·m

maximum2 N·m

position of power supply cordany

Mechanical Design

height90 mm

width18 mm

depth68.5 mm

installation depth70 mm

number of modular width units1

fastening methodDIN rail

mounting positionany

Net Weight133 g

Environmental conditions

minimum-25 °C

maximum45 °C

minimum-40 °C

maximum75 °C

ambient temperature with relative humidity 95%55 °C

number of test cycles for environmental testing according to IEC 60068-2-3028

Certificates

reference code according to IEC 81346-2F

Accessories 48

Genuine accessories that can be used with the Siemens 5SV6016-7KK06 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3010	Aksesuar
5ST3020	Aksesuar
5ST3062-0MC	Aksesuar
5ST3062	Aksesuar
5ST3820-6	Aksesuar
5ST3790-2	Seçmeli zorunlu ürün
5ST3795-4	Seçmeli zorunlu ürün
5ST3774-0	Seçmeli zorunlu ürün
5ST3778-0	Seçmeli zorunlu ürün
5ST3784-0	Seçmeli zorunlu ürün
5ST3784-0KL	Seçmeli zorunlu ürün
5ST3770-8	Seçmeli zorunlu ürün
5ST3771-0	Seçmeli zorunlu ürün
5ST3764	Seçmeli zorunlu ürün
5ST3761	Seçmeli zorunlu ürün
5ST3762	Seçmeli zorunlu ürün
5ST3765	Seçmeli zorunlu ürün
5ST3790-1	Seçmeli zorunlu ürün
5ST3770-6	Seçmeli zorunlu ürün
5ST3770-7	Seçmeli zorunlu ürün
5ST3760	Seçmeli zorunlu ürün
5ST3763	Seçmeli zorunlu ürün
5ST3785-4	Seçmeli zorunlu ürün
5ST3783-4	Seçmeli zorunlu ürün
5ST3772	Seçmeli zorunlu ürün
5ST3673-0	Seçmeli zorunlu ürün
5ST3674-0	Seçmeli zorunlu ürün
5ST3783-0	Seçmeli zorunlu ürün
5ST3795-0	Seçmeli zorunlu ürün
5ST3687-0	Seçmeli zorunlu ürün
5ST3787-0	Seçmeli zorunlu ürün
5ST3675-0	Seçmeli zorunlu ürün
5ST3676-0	Seçmeli zorunlu ürün
5ST3685-0	Seçmeli zorunlu ürün
5ST3775-0	Seçmeli zorunlu ürün
5ST3776-0	Seçmeli zorunlu ürün
5ST3780-0	Seçmeli zorunlu ürün
5ST3674-6	Seçmeli zorunlu ürün
5ST3674-7	Seçmeli zorunlu ürün
5ST3773-0	Seçmeli zorunlu ürün
5ST3777-0	Seçmeli zorunlu ürün
5ST3783-0KL	Seçmeli zorunlu ürün
5ST3673-4	Seçmeli zorunlu ürün
5ST3673-6	Seçmeli zorunlu ürün
5ST3673-7	Seçmeli zorunlu ürün
5ST3783-1	Seçmeli zorunlu ürün
5ST3783-1KL	Seçmeli zorunlu ürün
5ST3785-0	Seçmeli zorunlu ürün
