How can I get a price quote for Siemens 5ST3062-0MC?

You can request a fast quote for Siemens 5ST3062-0MC from Yılsa Engineering. Reference part number YLSZIAZZDHSTATZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3062-0MC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3062-0MC genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3062-0MC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

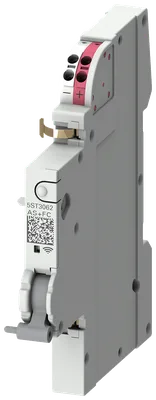

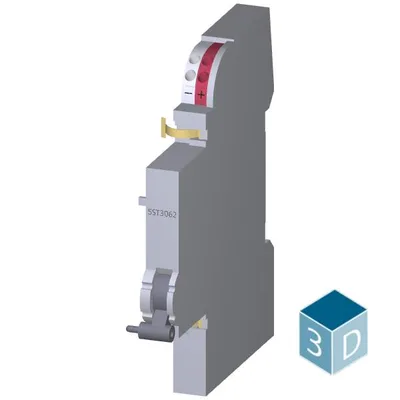

Siemens 5ST3062-0MC

auxiliary switch/fault signal contact 5ST3 COM, 0.5 MW for MCB, RCCB, RCBO, AFDD on-off switch 5TL1 remote operating mechanism power supply 24 V DC please consider radio license! list of countries: see certificates

SiemensMFR # 5ST3062-0MCSKU # YLSZIAZZDHSTATZ

product brand nameSENTRON

design of the productMountable

display version LEDYes

design of the product factory mountedNo

guideline via radio-controlled system2014/53/EU

consumed current maximum20 mA

Have questions?Chat on WhatsApp

About This Product

Siemens 5ST3062-0MC

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designation5ST3 COM auxiliary switch / fault signal contact

design of the productMountable

display version LEDYes

design of the product factory mountedNo

electrical endurance (operating cycles) typical10 000

guideline via radio-controlled system2014/53/EU

frequency with radio transmission minimum2 400 MHz

frequency with radio transmission maximum2 483.5 MHz

status display of the measured datamanual ON/OFF, tripping, temperature, switching cycles, operating hours, warnings

Current

consumed current maximum20 mA

Supply voltage

minimum19.2 V

maximum28.8 V

rated value24 V

at DC rated value minimum19.2 V

at DC rated value maximum29 V

type of voltage of the supply voltage24 V DC SELV

protection class IPIP20

Dissipation

power loss [V∙A] during standby0.5 W

Control current

type of voltage of control voltageDC

Product details

product feature interlockNo

fault signal contactYes

auxiliary switchYes

number of fault signal contacts0

number of NC contacts0

number of NO contacts0

number of CO contacts0

product extension can be mountedUniversal

product extension5ST3 COM auxiliary switch / fault signal contact

product function test function for fault current tripNo

Connections

type of terminals screwlessyes

minimum0.2 mm²

maximum1.5 mm²

minimum24

maximum16

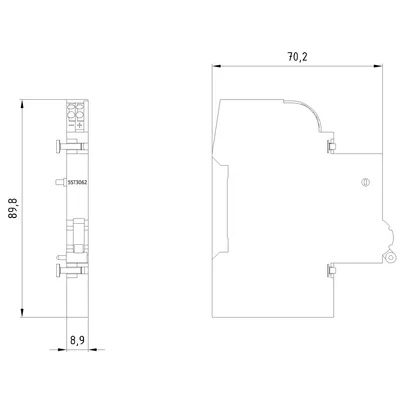

Mechanical Design

height90 mm

width9 mm

depth76.3 mm

number of modular width units1

Net Weight47 g

Environmental conditions

minimum-25 °C

maximum60 °C

ambient temperature during storage minimum-40 °C

Accessories 65

Genuine accessories that can be used with the Siemens 5ST3062-0MC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3605	Aksesuar
5ST3743	Aksesuar
5ST3742	Aksesuar
5ST3741	Aksesuar
5ST3733	Aksesuar
5ST3732	Aksesuar
5ST3713	Aksesuar
5ST3712	Aksesuar
5ST3711	Aksesuar
5ST3702	Aksesuar
5ST3648	Aksesuar
5ST3647	Aksesuar
5ST3646	Aksesuar
5ST3635	Aksesuar
5ST3634	Aksesuar
5ST3633	Aksesuar
5ST3616	Aksesuar
5ST3604	Aksesuar
5ST3603	Aksesuar
5ST3714	Aksesuar
5ST3703	Aksesuar
5ST3642	Aksesuar
5ST3620	Aksesuar
5ST3617	Aksesuar
5ST3744	Aksesuar
5ST3610	Aksesuar
5ST3611	Aksesuar
5ST3612	Aksesuar
5ST3714-3HG	Aksesuar
5ST3712-3HG	Aksesuar
5ST3707-3HG	Aksesuar
5ST3703-3HG	Aksesuar
5ST3778-0	Aksesuar
5ST3777-0	Aksesuar
5ST3735-2	Aksesuar
5ST3780-0	Aksesuar
5ST3714-0HG	Aksesuar
5ST3712-0HG	Aksesuar
5ST3707-0HG	Aksesuar
5ST3737	Aksesuar
5ST3736	Aksesuar
5ST3707	Aksesuar
5ST3706	Aksesuar
5ST3650	Aksesuar
5ST3641	Aksesuar
5ST3640	Aksesuar
5ST3618	Aksesuar
5ST3746-2	Aksesuar
7KN1110-0MC00	Uyumlu ürün
5SY1716-4	Uyumlu ürün
5SY1716-2	Uyumlu ürün
5SY1710-4	Uyumlu ürün
5SY1710-2	Uyumlu ürün
5SY1708-4	Uyumlu ürün
5SY1708-2	Uyumlu ürün
5SY1706-4	Uyumlu ürün
5SY1706-2	Uyumlu ürün
5SY1705-4	Uyumlu ürün
5SY1705-2	Uyumlu ürün
5SY1704-4	Uyumlu ürün
5SY1704-2	Uyumlu ürün
5SY1702-4	Uyumlu ürün
5SY1702-2	Uyumlu ürün
5SY1701-4	Uyumlu ürün
5SY1701-2	Uyumlu ürün
