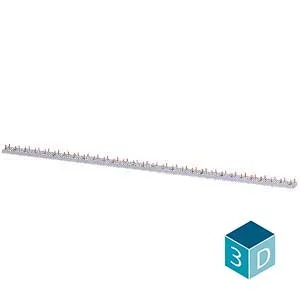

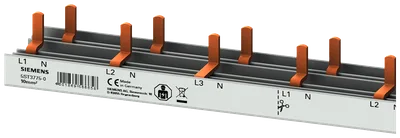

Siemens 5ST3775-0

compact pin busbar, 10 mm2, connection 3-pole/ N AFDD 5SM6 + compact device 1 MW safe to touch 1m can be cut

SiemensMFR # 5ST3775-0SKU # YLSJBLLY5HV5Y

product brand nameSENTRON

product designationPin busbar

design of the product30x (1PH+N)

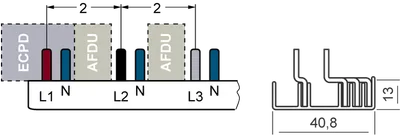

design of the phase tapL1/N/L2/N/L3/N

design of pole3P+N

phase number4

Have questions?Chat on WhatsApp

About This Product

compact pin busbar, 10 mm2, connection 3-pole/ N AFDD 5SM6 + compact device 1 MW safe to touch 1m can be cut

Siemens 5ST3775-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product30x (1PH+N)

design of the phase tapL1/N/L2/N/L3/N

General technical data

compatibilityfor compact devices equipped with 5SM6 arc fault detection unit and 5TY1 COM electronic circuit protection devices (ECPD)

design of pole3P+N

phase number4

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceYes

product feature insulatedYes

suitable for compact devicesYes

can be cutYes

number of devices suitable for fitting30

type of electrical connectionPin

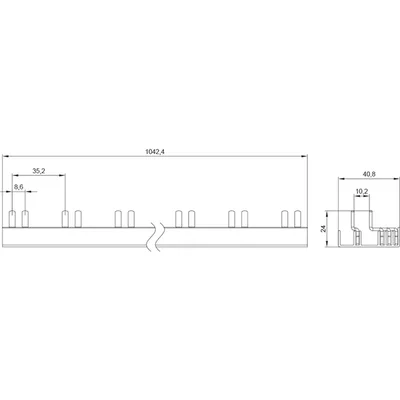

Mechanical Design

module width18 mm

height13 mm

width41 mm

length1 042 mm

number of modular width units58

cross-section10 mm²

angle of the pin of busbar0°

Net Weight580 g

Accessories 11

Genuine accessories that can be used with the Siemens 5ST3775-0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3788-0	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5SM6011-2	Uyumlu ürün
5SM6014-2	Uyumlu ürün
5SM6021-2	Uyumlu ürün
5SM6024-2	Uyumlu ürün
5SM6011-1	Uyumlu ürün
5SM6021-1	Uyumlu ürün
