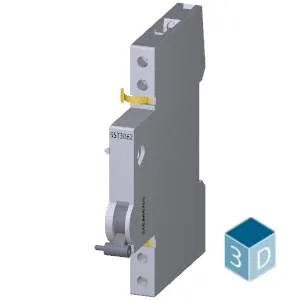

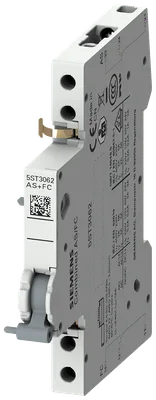

Siemens 5ST3062

auxiliary switch 1 CO + fault signal contact 1 changeover contact 230/400 V AC / 24-220 V DC 0.5 MW for 5SY, 5SL for 5SP, 5SV, 5SU1, 5ST3

SiemensMFR # 5ST3062SKU # YLSHBQYIQVB5UAV

product brand nameSENTRON

design of the productMountable

design of the product factory mountedNo

insulation voltage rated value440 V

surge voltage resistance rated value4 kV

operational current at DC rated value0.05 A

Have questions?Chat on WhatsApp

About This Product

auxiliary switch 1 CO + fault signal contact 1 changeover contact 230/400 V AC / 24-220 V DC 0.5 MW for 5SY, 5SL for 5SP, 5SV, 5SU1, 5ST3

Siemens 5ST3062

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationAuxiliary switch and fault signal contact

design of the productMountable

design of the product factory mountedNo

electrical endurance (operating cycles) typical10 000

Voltage

insulation voltage rated value440 V

surge voltage resistance rated value4 kV

Current

operational current at DC rated value0.05 A

Supply voltage

rated value230 V

at AC rated value minimum24 V

at AC rated value maximum440 V

at DC rated value minimum24 V

at DC rated value maximum110 V

protection class IPIP20

Breaking Capacity

switching capacity current rated value6 A

Control current

type of voltage of control voltageAC/DC

Product details

product feature interlockNo

fault signal contactYes

auxiliary switchYes

number of fault signal contacts1

number of NC contacts0

number of NO contacts0

number of CO contacts2

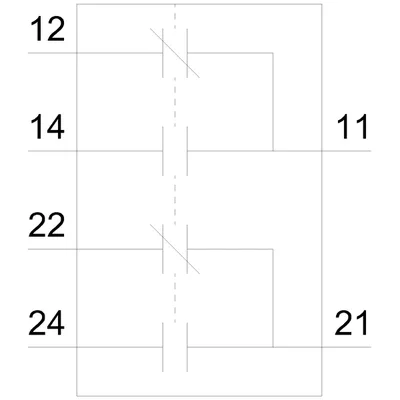

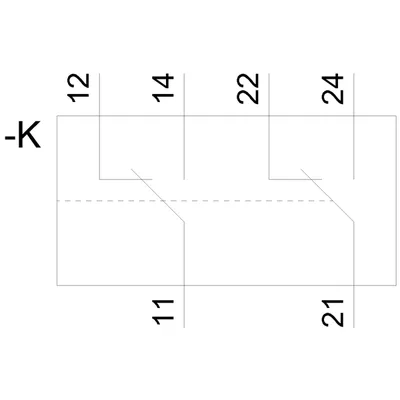

design of the auxiliary switch1 CO contact, 6 A, 230 V AC

product extension can be mountedUniversal

product extensionAuxiliary switch / fault signal contact

type of fault signal contact1CO, 6 A, 230 V AC

product function test function for fault current tripNo

Connections

minimum0.5 mm²

maximum2.5 mm²

minimum24

maximum12

maximum1 N·m

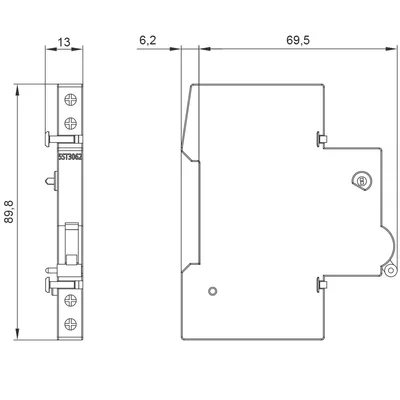

Mechanical Design

height90 mm

width9 mm

depth74 mm

number of modular width units1

Net Weight69 g

Environmental conditions

standardIEC/EN60947-5-1; IEC/EN62019; GB14048.5

minimum-25 °C

maximum55 °C

ambient temperature during storage minimum-40 °C

Accessories 64

Genuine accessories that can be used with the Siemens 5ST3062 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3605	Aksesuar
5ST3610	Aksesuar
5ST3744	Aksesuar
5ST3743	Aksesuar
5ST3742	Aksesuar
5ST3741	Aksesuar
5ST3733	Aksesuar
5ST3732	Aksesuar
5ST3713	Aksesuar
5ST3712	Aksesuar
5ST3711	Aksesuar
5ST3702	Aksesuar
5ST3648	Aksesuar
5ST3611	Aksesuar
5ST3647	Aksesuar
5ST3635	Aksesuar
5ST3634	Aksesuar
5ST3633	Aksesuar
5ST3616	Aksesuar
5ST3604	Aksesuar
5ST3603	Aksesuar
5ST3714	Aksesuar
5ST3703	Aksesuar
5ST3746-2	Aksesuar
5ST3642	Aksesuar
5ST3620	Aksesuar
5ST3617	Aksesuar
5ST3646	Aksesuar
5ST3612	Aksesuar
5ST3618	Aksesuar
5ST3640	Aksesuar
5ST3714-3HG	Aksesuar
5ST3712-3HG	Aksesuar
5ST3707-3HG	Aksesuar
5ST3703-3HG	Aksesuar
5ST3778-0	Aksesuar
5ST3777-0	Aksesuar
5ST3735-2	Aksesuar
5ST3780-0	Aksesuar
5ST3714-0HG	Aksesuar
5ST3712-0HG	Aksesuar
5ST3707-0HG	Aksesuar
5ST3737	Aksesuar
5ST3736	Aksesuar
5ST3707	Aksesuar
5ST3706	Aksesuar
5ST3650	Aksesuar
5ST3641	Aksesuar
5SY1710-4	Uyumlu ürün
5SY1710-2	Uyumlu ürün
5SY1708-4	Uyumlu ürün
5SY1708-2	Uyumlu ürün
5SY1706-4	Uyumlu ürün
5SY1706-2	Uyumlu ürün
5SY1705-4	Uyumlu ürün
5SY1705-2	Uyumlu ürün
5SY1704-4	Uyumlu ürün
5SY1704-2	Uyumlu ürün
5SY1702-4	Uyumlu ürün
5SY1702-2	Uyumlu ürün
5SY1701-4	Uyumlu ürün
5SY1701-2	Uyumlu ürün
5SY1716-2	Uyumlu ürün
5SY1716-4	Uyumlu ürün
