How can I get a price quote for Siemens 5ST3783-0?

You can request a fast quote for Siemens 5ST3783-0 from Yılsa Engineering. Reference part number YLSKM90VCKCJKNW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3783-0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3783-0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3783-0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

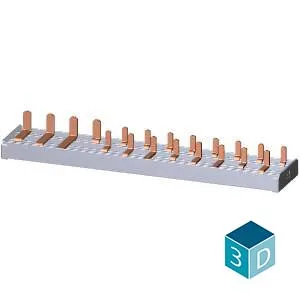

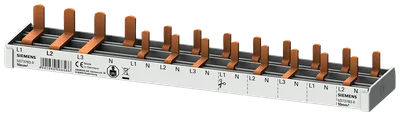

Siemens 5ST3783-0

compact pin busbar, 10 mm2, connection: 3-pole/N (RCCB N right) 1x RCCB, 4-pole + 8x compact device 1 MW safe to touch N right 12 MW can be cut

SiemensMFR # 5ST3783-0SKU # YLSKM90VCKCJKNW

product brand nameSENTRON

product designationPin busbar

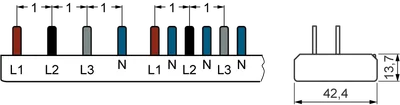

design of the product1x (3PH+N) + 8x (1PH+N)

design of pole3P+N

phase number4

operational current rated value63 A

Have questions?Chat on WhatsApp

About This Product

compact pin busbar, 10 mm2, connection: 3-pole/N (RCCB N right) 1x RCCB, 4-pole + 8x compact device 1 MW safe to touch N right 12 MW can be cut

Siemens 5ST3783-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product1x (3PH+N) + 8x (1PH+N)

General technical data

compatibilityfor 1 × RCCB 3P+N and 8 × compact devices

design of pole3P+N

phase number4

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 4P N right

colorlight grey

Product details

product component with end capYes

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesYes

can be cutYes

number of devices suitable for fitting9

type of electrical connectionPin

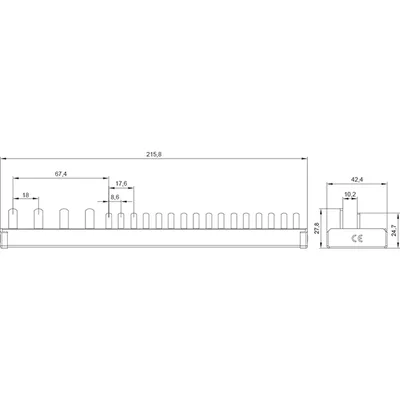

Mechanical Design

module width18 mm

height14 mm

width42 mm

length216 mm

number of modular width units12

cross-section10 mm²

angle of the pin of busbar0°

Net Weight123.5 g

Accessories 5

Genuine accessories that can be used with the Siemens 5ST3783-0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
