How can I get a price quote for Siemens 5ST3774-0?

You can request a fast quote for Siemens 5ST3774-0 from Yılsa Engineering. Reference part number YLSLKFUL3FVUI0V. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3774-0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3774-0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3774-0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

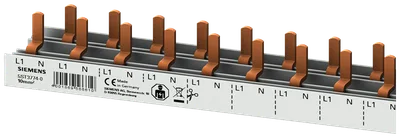

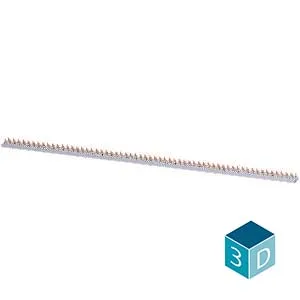

Siemens 5ST3774-0

compact pin busbar, 10 mm2, connection 1-pole/ N compact device 1 MW safe to touch 1m can be cut

SiemensMFR # 5ST3774-0SKU # YLSLKFUL3FVUI0V

product brand nameSENTRON

product designationPin busbar

design of the product60x (1PH+N)

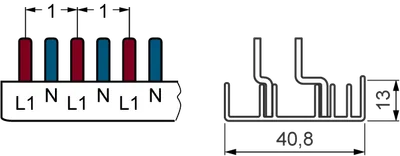

design of the phase tapL1/N

compatibilityfor compact devices

design of pole1P+N

Have questions?Chat on WhatsApp

About This Product

compact pin busbar, 10 mm2, connection 1-pole/ N compact device 1 MW safe to touch 1m can be cut

Siemens 5ST3774-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product60x (1PH+N)

design of the phase tapL1/N

General technical data

compatibilityfor compact devices

design of pole1P+N

phase number2

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

colorlight grey

Product details

product component with end capNo

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesYes

can be cutYes

number of devices suitable for fitting60

type of electrical connectionPin

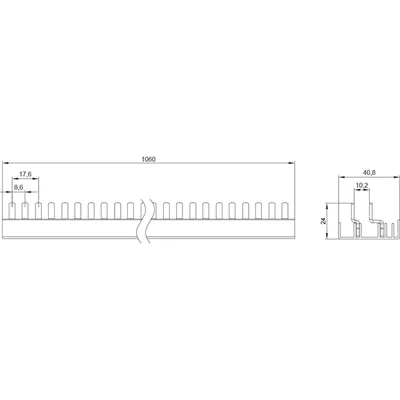

Mechanical Design

module width18 mm

height13 mm

width41 mm

length1 060 mm

number of modular width units59

cross-section10 mm²

angle of the pin of busbar0°

Net Weight512 g

Accessories 5

Genuine accessories that can be used with the Siemens 5ST3774-0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
