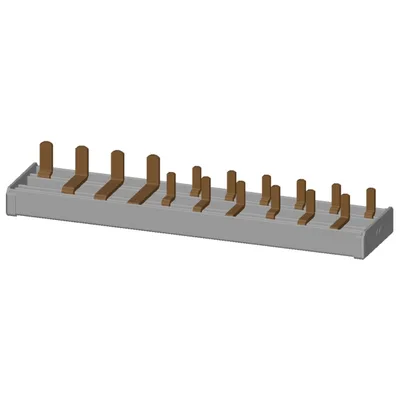

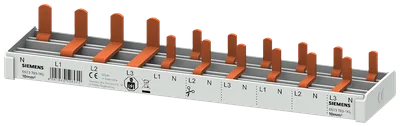

Siemens 5ST3783-1KL

compact pin busbar, 10 mm2, connection: 3-pole/N (RCCB N left) 1x RCCB, 4-pole + 6x compact device 1 MW safe to touch 10 MW can be cut

SiemensMFR # 5ST3783-1KLSKU # YLSD4WCP7HZFUU8

product brand nameSENTRON

product designationPin busbar

design of the product1x (N+3PH) + 6x (1PH+N)

design of pole3P+N

phase number4

operational current rated value63 A

Have questions?Chat on WhatsApp

About This Product

compact pin busbar, 10 mm2, connection: 3-pole/N (RCCB N left) 1x RCCB, 4-pole + 6x compact device 1 MW safe to touch 10 MW can be cut

Siemens 5ST3783-1KL

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the product1x (N+3PH) + 6x (1PH+N)

General technical data

compatibilityfor 1 × RCCB 3P+N (RCCB N left only) and 6 × compact devices

design of pole3P+N

phase number4

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

suitability for useRCCB 4P N left

colorlight grey

Product details

product component with end capYes

product feature attachable arc fault detection deviceNo

product feature insulatedYes

suitable for compact devicesYes

can be cutYes

number of devices suitable for fitting7

type of electrical connectionPin

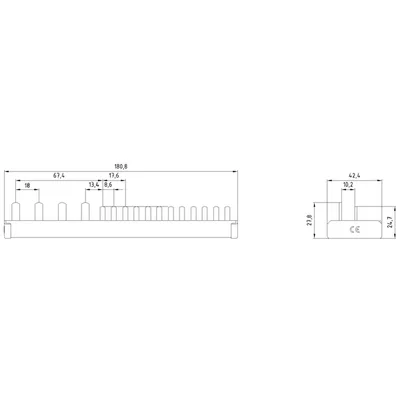

Mechanical Design

module width18 mm

height14 mm

width42 mm

length181 mm

number of modular width units10

cross-section10 mm²

angle of the pin of busbar0°

Net Weight120 g
