How can I get a price quote for Siemens 5ST3675-0?

You can request a fast quote for Siemens 5ST3675-0 from Yılsa Engineering. Reference part number YLSBRPFZWZWYJV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST3675-0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST3675-0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST3675-0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

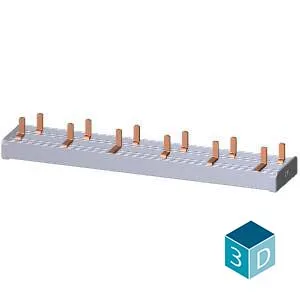

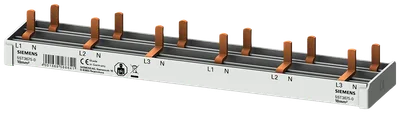

Siemens 5ST3675-0

compact pin busbar, 10 mm2, connection 3-pole/ N 6x AFDD 5SM6 + 6x compact device 1 MW safe to touch 12 MW fixed length

SiemensMFR # 5ST3675-0SKU # YLSBRPFZWZWYJV

product brand nameSENTRON

product designationPin busbar

design of the phase tapL1/N/L2/N/L3/N

design of pole3P+N

phase number4

operational current rated value63 A

Have questions?Chat on WhatsApp

About This Product

compact pin busbar, 10 mm2, connection 3-pole/ N 6x AFDD 5SM6 + 6x compact device 1 MW safe to touch 12 MW fixed length

Siemens 5ST3675-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSENTRON

product designationPin busbar

design of the phase tapL1/N/L2/N/L3/N

General technical data

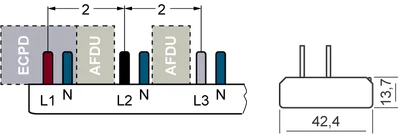

compatibilityfor 6 × compact devices equipped with 5SM6 arc fault detection unit and 5TY1 COM electronic circuit protection devices (ECPD)

design of pole3P+N

phase number4

operational current rated value63 A

suitability for interaction devices with auxiliary switchNo

suitability for interaction devices with N conductorYes

colorlight grey

Product details

product component with end capYes

product feature attachable arc fault detection deviceYes

product feature insulatedYes

suitable for compact devicesYes

can be cutNo

number of devices suitable for fitting6

type of electrical connectionPin

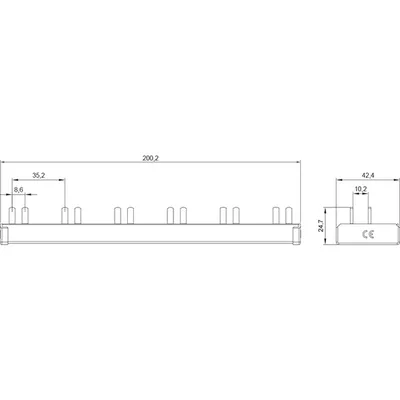

Mechanical Design

module width18 mm

height14 mm

width42 mm

length200 mm

number of modular width units11

cross-section10 mm²

angle of the pin of busbar0°

Net Weight99 g

Accessories 13

Genuine accessories that can be used with the Siemens 5ST3675-0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
5ST3788-0	Aksesuar
5ST3655	Aksesuar
5ST3655-0HG	Aksesuar
5ST3768	Aksesuar
5ST3768-3	Aksesuar
5ST3768-4	Aksesuar
5ST3768-5	Aksesuar
5SM6011-2	Uyumlu ürün
5SM6014-2	Uyumlu ürün
5SM6021-2	Uyumlu ürün
5SM6024-2	Uyumlu ürün
5SM6011-1	Uyumlu ürün
5SM6021-1	Uyumlu ürün
